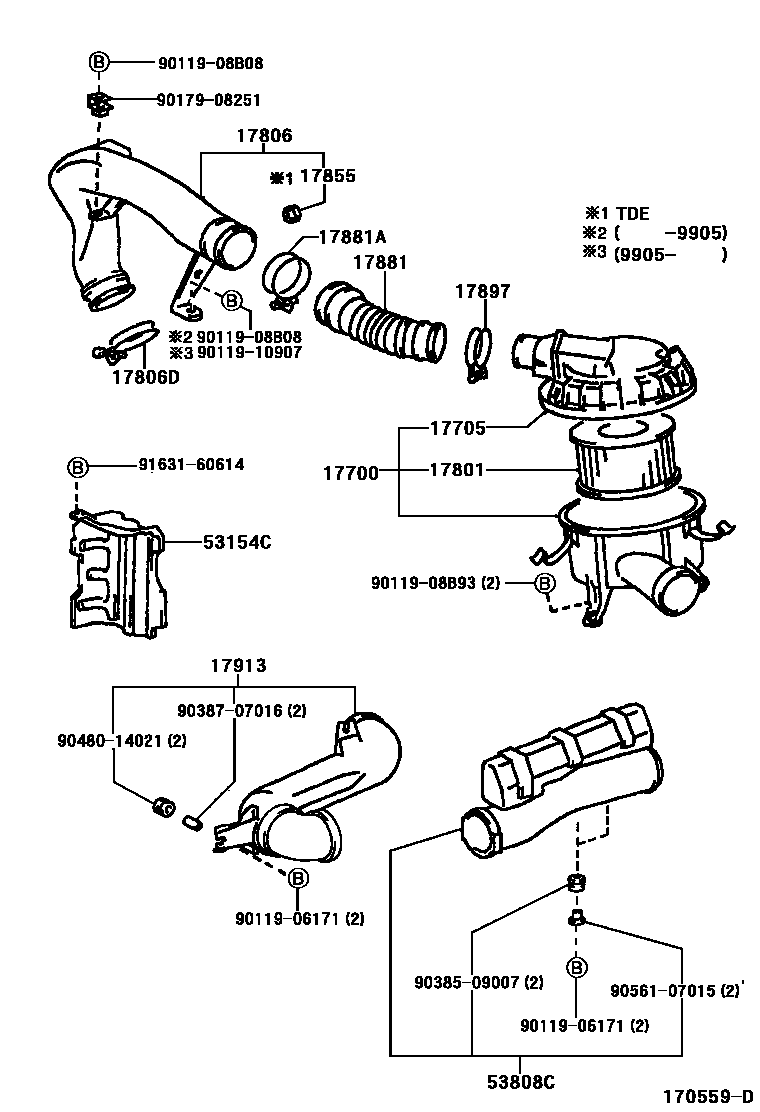

AIR CLEANER
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17806PIPE SUB-ASSY, AIR CLEANER, NO.2
17806DCLAMP(FOR AIR CLEANER PIPE)
17855GASKET, AIR INLET DUCT, NO.1
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17897CLAMP, HOSE(FOR AIR CLEANER)
17913DUCT, COOL AIR INTAKE, NO.3
53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH
53808CDUCT SUB-ASSY, FRONT FENDER AIR, LH
9011906171
main90119-06171
9011908B08
main90119-08B08
9011908B93
main90119-08B93
9011910907
main90119-10907
9017908251
main90179-08251
9038509007
main90385-09007
9038707016
main90387-07016
9048014021
main90480-14021
9056107015
main90561-07015
9163160614
main91631-60614
22 parts on this diagram · 8 diagrams in section
