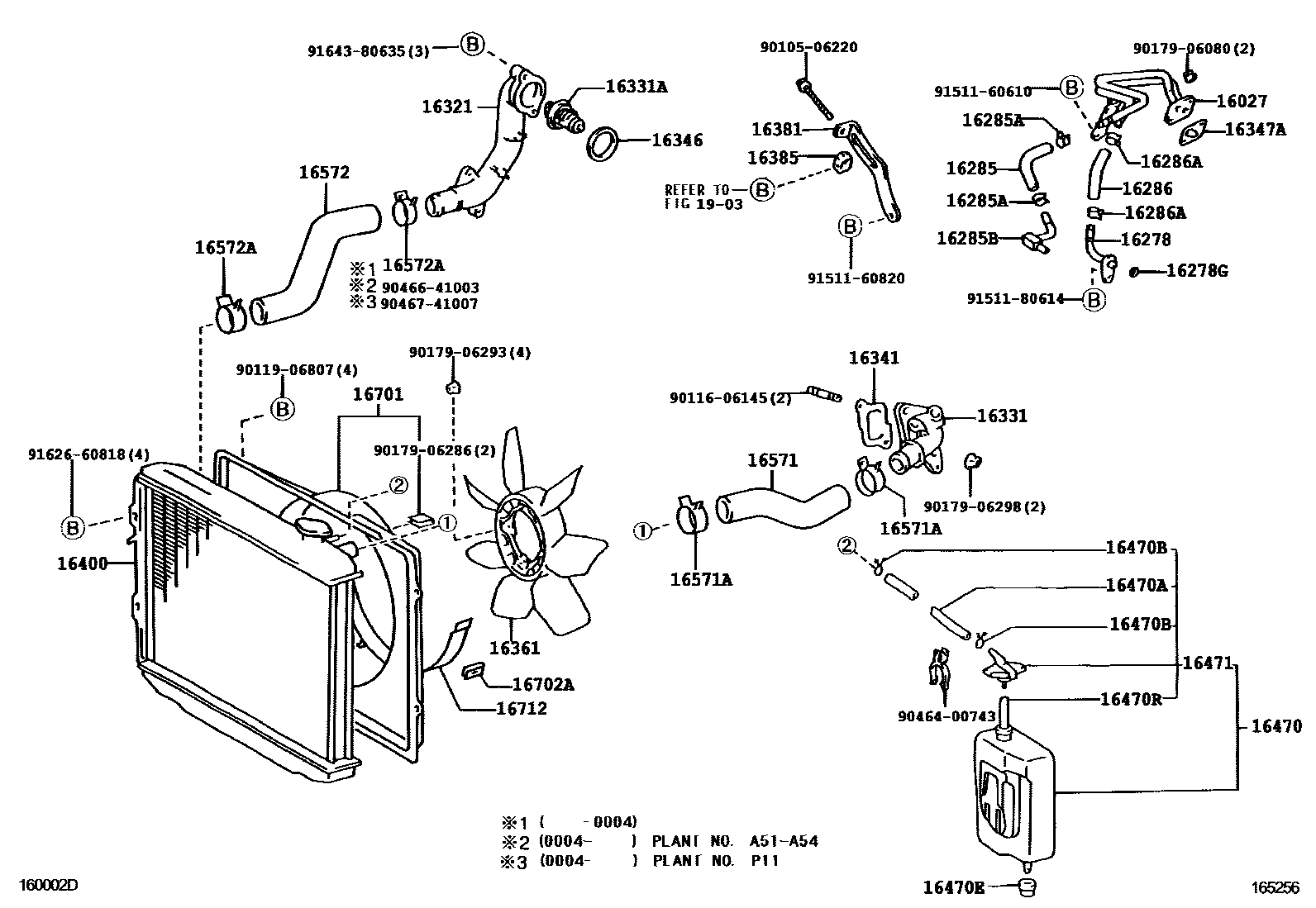

RADIATOR & WATER OUTLET
16027PIPE SUB-ASSY, TURBO WATER, NO.1
16278PIPE, WATER BY-PASS, NO.2
16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)
16285HOSE, TURBO WATER, NO.2
16285ACLIP(FOR TURBO WATER HOSE NO.2)
16285BUNION(FOR TURBO WATER HOSE NO.2)
16286HOSE, TURBO WATER, NO.3
16286ACLIP(FOR TURBO WATER HOSE NO.3)
16331OUTLET, WATER
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
sub16346-30010
16347AGASKET(FOR TURBO WATER PIPE)
16385SLIDER, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16572HOSE, RADIATOR, OUTLET
16701SHROUD SUB-ASSY, FAN
16702SHROUD SUB-ASSY, FAN, NO.2
16702ACLIP(FOR FAN SHROUD NO.2)
1903
9010506220
main90105-06220
9011606145
main90116-06145
9011906807
main90119-06807
9017906080
main90179-06080
9017906286
main90179-06286
9017906293
main90179-06293
9017906298
main90179-06298
9046400743
main90464-00743
9046641003
main90466-41003
9046741007
main90467-41007
9151160610
main91511-60610
9151160820
main91511-60820
9151180614
main91511-80614
9162660818
main91626-60818
9164380635
main91643-80635
48 parts on this diagram · 9 diagrams in section
