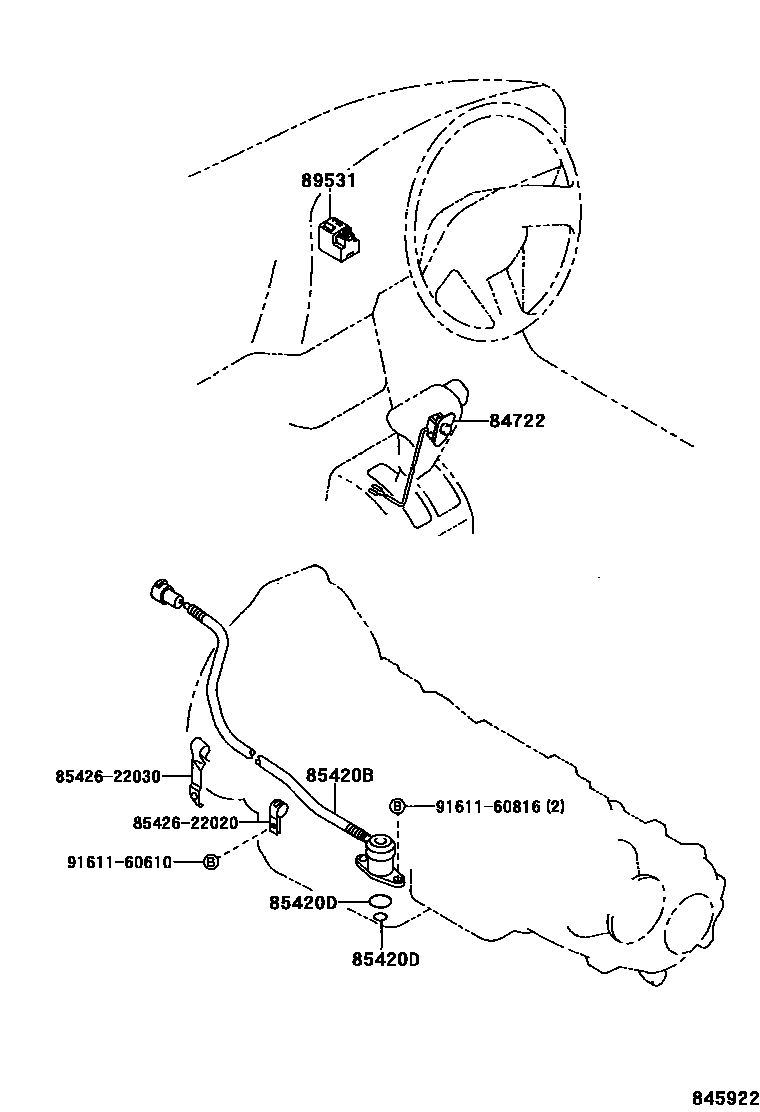

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1�-�������� 0002 1ECT(�������� ����-��� �������0004 1ECT(�������� ����-��� �������

84722SWITCH, TRANSMISSION CONTROL

main84722-35050-03iLN85,YN86..4FC198809-199708

GRAY,TRIM1#

main84722-35050-04iLN85..4FC198809-199408

BLUE,TRIM8#

main84722-35050-06iLN85..4FC198809-199108

BROWN,TRIM4#

main84722-35070-02iLN130,VZN130,YN130..4FC198904-199108

RED,TRIM3#

main84722-35070-03iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

GRAY,TRIM1#

main84722-35070-04iLN130,VZN130..4D..4FC;LN130,VZN130..2D..4FC..SSR199008-199308

BLUE,TRIM8#

main84722-35070-06iLN130,VZN130,YN130..4FC198904-199108

BROWN,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main35250-50030iKZN130,LN108,112,VZN130..4FC199503-199708

main85420-21090×2iKZN130,LN108,112,VZN130..4FC199503-199708

main85420-22080×2iKZN130,LN130..4FC199108-199503

main85420-30110iLN130,VZN130..4FC199205-199503

main85420-30120iVZN130..4FC199205-199503

85420BSOLENOID ASSY, TRANSMISSION

main85420-20050iLN85..4FC198809-199108

main85420-38010iLN85,YN86..4FC199108

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iVZN130..4FC199502-199511

main90301-11001iLN85,YN86..4FC198809

ID=9.6-10.0

main90301-23001iLN85,YN86..4FC198809

ID=23.15-23.45

89531RELAY, TRANSMISSION CONTROL

main89531-28010iLN85,YN86..4FC198809

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

8542622030CLAMP, OVER DRIVE SOLENOID

main85426-22030

9161160610

main91611-60610

9161160816

main91611-60816

9 parts on this diagram · 3 diagrams in section
