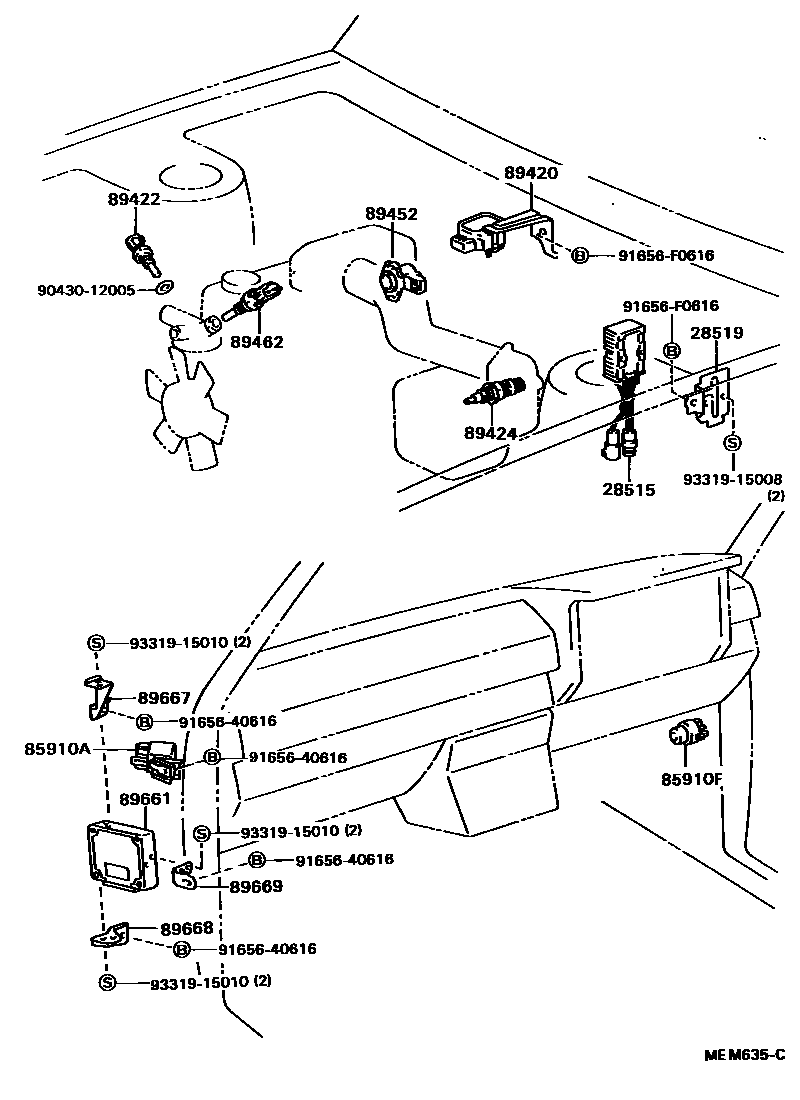

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

28515RESISTOR, SOLENOID

main28515-26030i3YE..YN130198904-199108

28519BRACKET, SOLENOID RESISTOR

main28519-35030i3YE..YN130198904-199108

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-35010iVZN130,YN107,130,81,86..EFI198904

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iVZN130,YN130198904-199108

main90987-02009iVZN130,YN107,81,86..EFI199108

89420SENSOR ASSY, VACUUM

main89420-35040iYN107,130,81,86..EFI198904

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iYN130198904-199108

main89422-35010iYN107,8#199408

ENGINE BLOCK

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-24010iYN107,8#199408

main89424-28010iYN130198904-199108

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iVZN130199008-199511

main89452-14050iYN130..5F198908-199108

main89452-22090iYN107,8#199408-199708

main89452-28030iYN130198904-198908

89462SWITCH, START INJECTOR TIME

main89462-20030iYN130198904-199108

main89462-20040iVZN130199008-199511

89661COMPUTER, ENGINE CONTROL

main89661-35090iYN130198904-199108

main89661-35590iVZN130..5F199008-199108

main89661-35600iVZN130..4FC199008-199108

main89661-35790iVZN130..5F199108-199511

main89661-35800iVZN130..4FC199108-199511

main89661-3D110iYN107,8#199408

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35040iVZN130,YN107,130,81,86..EFI198904

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35050iYN130198904-199108

main89668-35060iVZN130,YN107,81,86..EFI199008

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35040iVZN130,YN107,130,81,86..EFI198904

9043012005

main90430-12005

9165640616

main91656-40616

91656F0616

main91656-F0616

9331915008

main93319-15008

9331915010

main93319-15010

18 parts on this diagram · 3 diagrams in section
