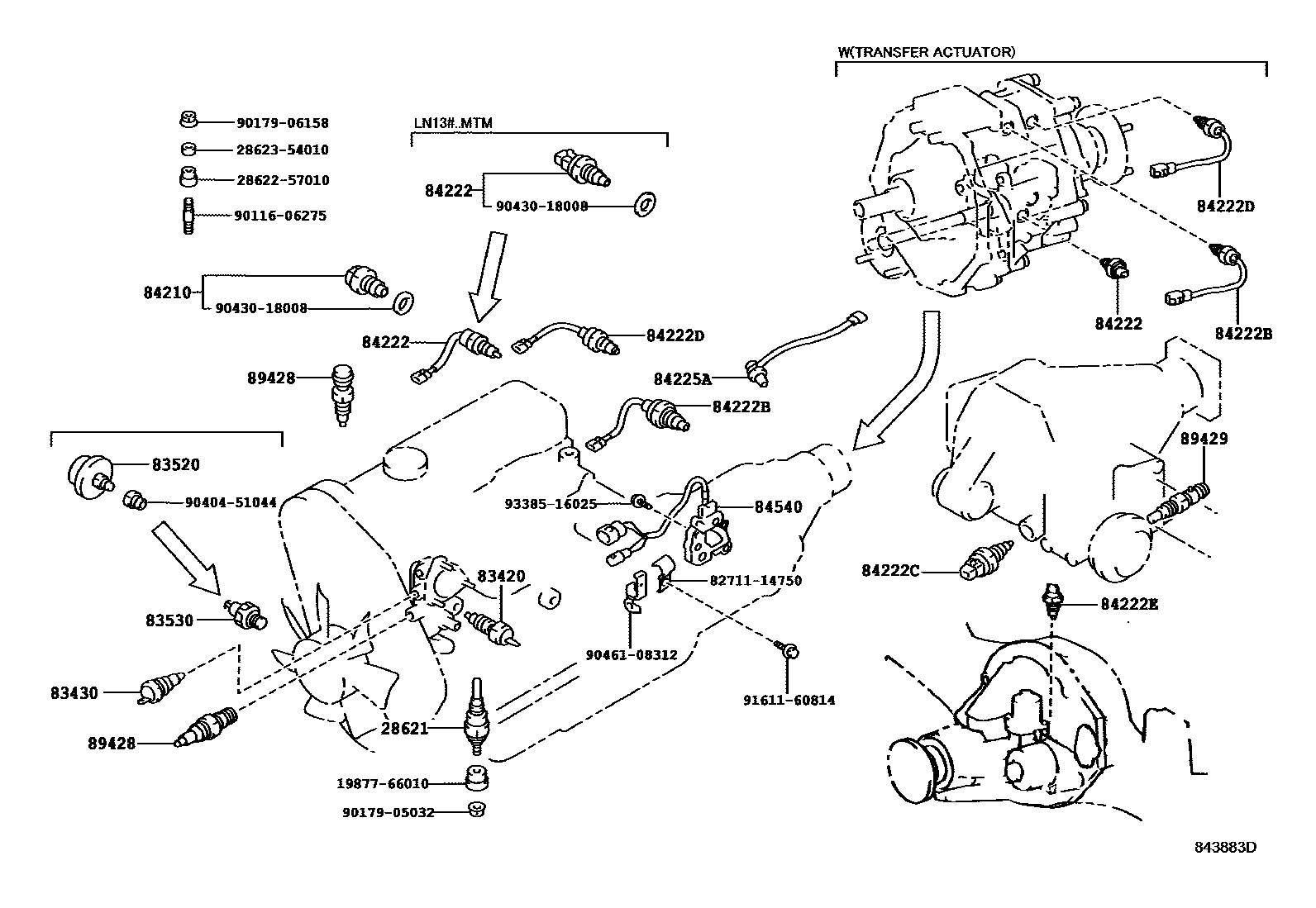

SWITCH & RELAY & COMPUTER

0001 1�����,���������,������&������0002 1�����,���������,������&������0003 1�����,��������� & ������ 0004 1�����,��������� & ������ 0005 1����� �-� 0006 1����� �-� 0007 1����� �-� 0008 1����� �-� 0009 1��-����� & ���� �� ��-����� 0010 1�������� ���� & �����-��� ���0011 1�������� ����,��� ��- & �����0012 1��� & ��� 0013 1�-�,���-�,��� & ���

28621RESISTOR, GLOW PLUG

main28621-54080i2LT#,2L,3L..LN10#,13#,8#198809-199408

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN130199108-199511

main83420-16040iKZN130,LN10#,112,8#,YN10#,8#199208-199308

main83420-20020iVZN130..SSR;LN10#,13#,8#,YN10#,130,8#198809-199208

83430SWITCH ASSY, WATER LEVEL SENDER

main83430-96440iLN130198904-199008

sub89428-60040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iLN130,YN10#,130198809-199208

sub83520-35030

main83520-34010iKZN130,VZN130,YN10#199208-199507

main83520-35020iKZN130199508-199511

sub83520-60050

main83520-35030iLN106,107,108,109,112..SR,SSR,SSRX199308

sub83520-35031

main83520-55011iLN10#..SR,SSR199008-199308

main83520-55011iLN130,YN10#,130198809-199208

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYN8#198809-199208

sub83530-28030

main83530-14070iYN8#199208-199601

sub83530-28010

main83530-30060iLN106,8#..DLX,SDX198809-199708

sub83530-60030

main83530-30090iYN8#199601-199708

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iKZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM198809

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iLN107..SSR199108-199708

main84222-12010iLN108..SSRX;VZN130,YN130..5F;KZN130,LN109,112,13#198904

main84222-35050iLN100,106,107,YN10#198809

main84222-35060iLN108..SSR199508

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35030iLN10#,YN10#198809-199108

main84222-35080iLN131,VZN130,YN130..5F;KZN130,LN107,108,109,112,130,YN107..(SSR,SSRX)..(DSL,EFI,TD,TDE)198904

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iLN108,131..SR,SSRX;KZN130,LN107,109,112,130,VZN130,YN107,130..(SSR,SSRX)..(DSL,EFI,TD,TDE)198904

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35090iVZN130..5F;KZN130,LN10#,112,13#,YN10#199108

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-12010iLN100,106,107,YN100,105..DLX,SR199008

main84222-12010iLN107,YN107..SSR..(DSL,EFI)199108

84225ASWITCH, SHIFT POSITION

main84225-35010iKZN130,LN130..5F199108-199511

84540SWITCH ASSY, NEUTRAL START

main84540-28020iLN85..4FC199108-199110

sub84540-28021

main84540-28021iLN85..4FC199110-199308

main84540-30270iKZN130,LN108,112,VZN130..4FC199308

main84540-30290iLN85,YN86..4FC199308

main84540-30300iLN85,YN86..4FC199308

main84540-35010iLN85..4FC198809-199108

main84540-35040iLN130,VZN130,YN130..4FC198904-199108

sub84540-50010

main84540-50010iLN130,VZN130..4FC199108-199308

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20100iLN130..4FC199108-199308

main89428-28030iYN130198904-199108

main89428-30090iLN130199008-199108

main89428-60040iLN130..5F199008-199308

main89428-60040iLN108,112199508-199708

main89428-89101iVZN130..4FC199008-199511

89429SENSOR, OIL TEMPERATURE

main89429-35060iVZN130,YN130..5F;LN108,131..SR,SSRX;KZN130,LN107,109,112,130,YN107..(SSR,SSRX)..(DSL,EFI,TD,TDE)198904-199609

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9040451044

main90404-51044

9043018008

main90430-18008

9046108312

main90461-08312

9161160814

main91611-60814

9338516025

main93385-16025

27 parts on this diagram · 13 diagrams in section
