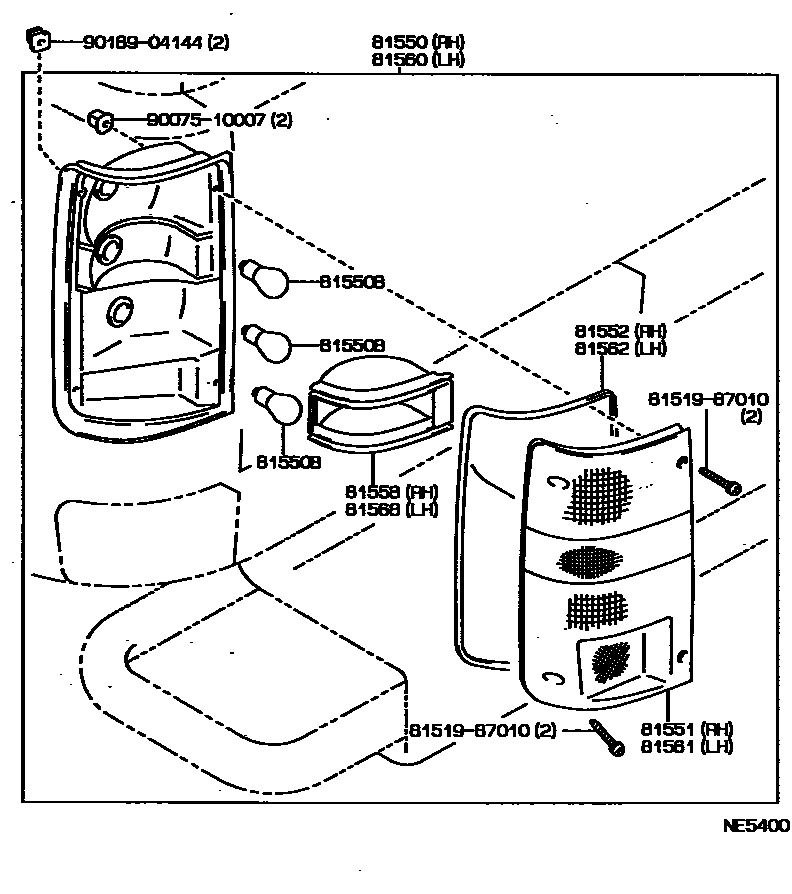

REAR COMBINATION LAMP

0001 1 0002 1 0003 1TYPE 1(������������ �����) 0004 1TYPE 2,��(���������� ��������

81550LAMP ASSY, REAR COMBINATION, RH

main81550-35080iKZN130,LN130,VZN130..SSRX199108-199402

TYPE 2

main81550-35081iKZN130,VZN130..SSRX199402-199511

TYPE 2

main81550-35180iKZN130,LN13#,VZN130199208-199402

main81550-35181iKZN130,VZN130199402-199407

main81550-89152iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809-199708

main81550-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809-199708

main81550-89167iLN13#,VZN130,YN130198904-199208

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iKZN130,LN13#,VZN130,YN130198904-199511

main99132-11230×4iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

main99132-21210×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

main81551-35080iKZN130,LN130,VZN130..SSRX199108-199402

TYPE 2

main81551-35081iKZN130,VZN130..SSRX199402-199511

TYPE 2

main81551-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

main81551-89167iKZN130,LN13#,VZN130,YN130198904-199511

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-25060iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

main81552-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060×2iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

main81557-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

81560LAMP ASSY, REAR COMBINATION, LH

main81560-35080iKZN130,LN130,VZN130..SSRX199108-199402

TYPE 2

main81560-35081iKZN130,VZN130..SSRX199402-199511

TYPE 2

main81560-35180iKZN130,VZN130199407-199511

main81560-35181iKZN130,VZN130199401-199407

main81560-89152iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

main81560-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

main81560-89167iLN13#,VZN130199108-199208

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

main81561-35080iKZN130,LN130,VZN130..SSRX199108-199402

TYPE 2

main81561-35081iKZN130,VZN130..SSRX199402-199511

TYPE 2

main81561-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

main81561-89167iKZN130,LN13#,VZN130,YN130198904-199511

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

main81562-25040iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060×2iLN85,86,YN85,86..IV3;LN85,86,YN85,86..(T2,T3)..CBU198809

main81567-89163iLN10#,112,8#,YN10#,8#..(T1,TW1)..CBU198809

8151987010BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-87010

9007510007

main90075-10007

9018904144

main90189-04144

12 parts on this diagram · 4 diagrams in section
