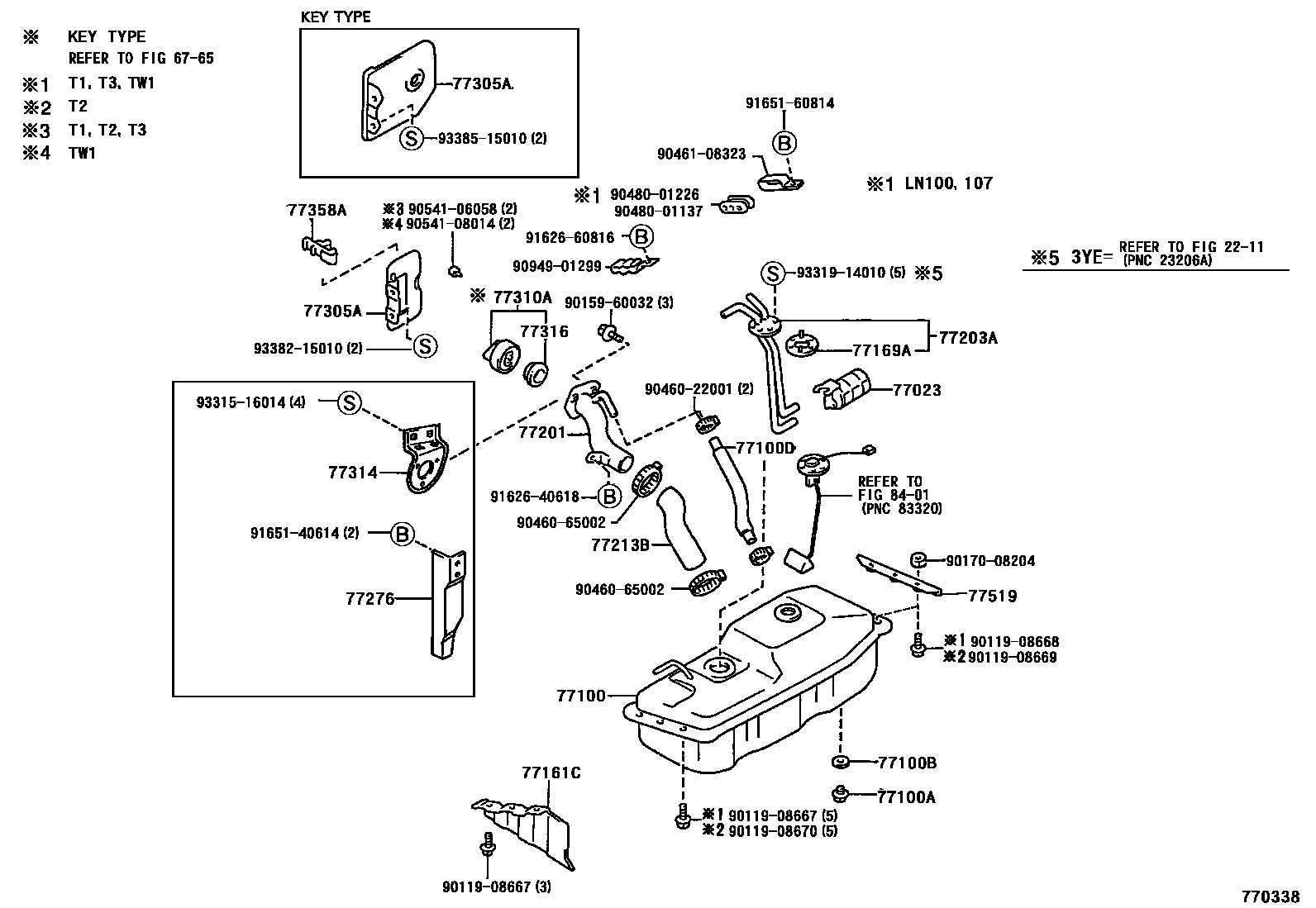

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

2211

6765

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iYN10#,8#198809-199408

main77023-22040iLN10#,112,13#,8#198809

main77023-36010iKZN130199308-199511

77100TANK ASSY, FUEL

main77001-35964iLN80,YN80198809-199108

main77001-35969iLN10#,YN100..T1198809-199108

sub77001-35997

main77001-35971iLN106,YN105..TW1198809-199108

sub77001-359A2

main77001-35977iLN85,YN85..RCB198809-199108

sub77001-35989

main77001-35978iLN85,YN85..TW1198809-199108

sub77001-35990

main77001-35981iVZN130,YN130198904-199511

main77001-35983iKZN130,LN13#198904-199511

sub77001-35900

main77001-35984iYN81199408

main77001-35986iLN80,81,YN80199108

main77001-35987iLN85,86,YN85..RCB199108

sub77001-3D937

main77001-35988iLN85,86,YN85..TW1199108

sub77001-3D938

main77001-35995iLN100,106,YN100199108

sub77001-3D930

main77001-35996iLN107,108,109,112,YN107..CBR,DSL,TDE199108

sub77001-3D925

main77001-3D900iYN107199408

main77001-3D901iYN86..RCB199408

sub77001-3D934

main77001-3D902iYN86..TW1199408

77100APLUG(FOR FUEL TANK)

main90105-12018iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

77100BGASKET(FOR FUEL TANK)

main90430-12245iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#198809-199108

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77408-35020iLN100,106,8#,YN100,8#..T1198809

main77408-35040iKZN130,LN13#,VZN130,YN130198904-199511

main90445-21883iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main90445-22024iLN85,86,YN85,86..T3198809

main90445-22024iLN85,YN85..T1..IV3198810

main90445-22029iLN85,86,YN85,86..T2198809

sub90445-22904

77161CPROTECTOR, FUEL TANK, LOWER

main77161-35050iLN8#,YN8#..RCB198809-199108

sub77161-35051

main77161-35051iLN8#,YN8#..RCB199108

main77161-35070iLN10#,112,YN10#198809

main77161-35090iLN85,86,YN85,86..TW1198809

main77161-35110iKZN130,LN13#,VZN130,YN130198904-199511

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iKZN130,LN10#,112,13#,8#,YN10#,80,85..CBR,DSL,TD,TDE198809

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35340iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main77201-35380iLN10#,8#,YN100,8#..T1198809-199108

main77201-35400iLN85,86,YN85,86..T2198809

main77201-35410iLN85,86,YN85,86..T3198809

main77201-35410iLN85,YN85..T1..IV3198810

main77201-35430iLN13#,VZN130,YN130198904-199108

main77201-35440iKZN130,LN13#,VZN130199108-199511

main77201-35450iLN100,106,8#,YN100,8#..T1..CBU199108

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-35220iLN80,81198809

main77203-35240iLN106,107,108,109,112..TW1198809

main77203-35261iLN100,106..T1198809

main77203-35330iYN80198809-199408

main77203-35361iYN100198809-199408

main77203-35380iYN85198809-199408

main77203-35390iLN85,86198809

main77203-35400iYN105,107198809-199408

main77203-35430iLN13#198904-199308

main77203-35440iKZN130199308-199511

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35120iLN85,86,YN85,86..T3198809

main77213-35120iLN85,YN85..T1..IV3198810

main77213-35190iLN85,86,YN85,86..T2198809

main77213-35200iLN8#,YN8#..T1198809

main77213-35210iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main77213-35230iKZN130,LN13#,VZN130199108-199511

main77213-35240iLN13#,VZN130,YN130198904-199108

main77213-35280iLN100,106,YN100..T1198809

77276PROTECTOR, FUEL HOSE

main77276-89106iLN85,86,YN85,86..(T2,T3)..CBU198809

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-89107iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main77305-89108iLN100,106,YN100..T1198809

main77305-89110iLN8#,YN8#..T1..CBU198809

main77350-35020iKZN130,VZN130199510-199511

main77350-89103iKZN130,LN13#,VZN130,YN130198904-199510

sub77350-35020

77310ACAP ASSY, FUEL TANK

main77310-12100iVZN130,YN100,130,8#..(2D,4D,T1)..CBU198809-199108

main77310-35061iLN10#,13#,8#..(2D,4D,T1)..CBU198809-199108

main77310-35070iVZN130,YN100,8#..(2D,4D,T1)..CBU199108-199708

sub77310-48010

main77310-35110iKZN130,LN100,106,13#,8#..(2D,4D,T1)..CBU199108-199708

sub77310-12150

77314RETAINER, FUEL TANK CAP

main77314-89101iLN85,86,YN85,86..T3198809

main77314-89102iLN85,86,YN85,86..T2..CBU198809

77316GASKET, FUEL TANK CAP

main77316-12050iLN10#,13#,8#,VZN130,YN100,130,8#..(2D,4D,T1)..CBU198809-199108

main77316-16010iKZN130,LN100,106,13#,8#,VZN130,YN100,8#..(2D,4D,T1)..CBU199108

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-24010iLN10#,8#,YN100,8#..T1..CBU198809-198902

main77358-89101iLN100,106,8#,YN100,8#..T1..CBU198902

77519SPACER, FUEL TANK BRACKET

main77519-35010iLN85,86,YN85,86..T2198809

8401

9011908667

main90119-08667

9011908668

main90119-08668

9011908669

main90119-08669

9011908670

main90119-08670

9015960032

main90159-60032

9017008204

main90170-08204

9046022001

main90460-22001

9046065002

main90460-65002

9046108323

main90461-08323

9048001137

main90480-01137

9048001226

main90480-01226

9054106058

main90541-06058

9054108014

main90541-08014

9094901299

main90949-01299

9162640618

main91626-40618

9162660816

main91626-60816

9165140614

main91651-40614

9165160814

main91651-60814

9331516014

main93315-16014

9331914010

main93319-14010

9338215010

main93382-15010

9338515010

main93385-15010

42 parts on this diagram · 7 diagrams in section
