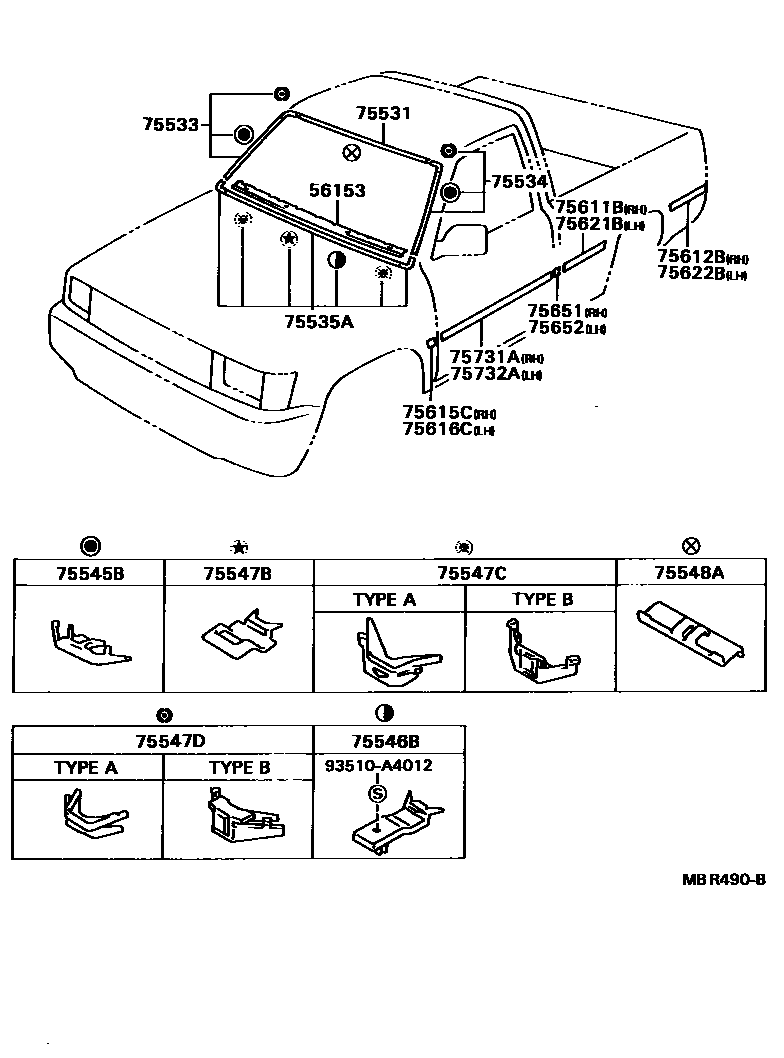

MOULDING

0001 1 0002 1 0003 1 0004 1

56153MOULDING, FRONT WINDOW, INNER CENTER

main56153-35010×2iLN10#,13#,8#,VZN130,YN10#,130,8#199105-199108

main56153-89102iLN10#,13#,8#,YN10#,130,8#198809-198909

main56153-89103iLN10#,13#,8#,VZN130,YN10#,130,8#198909-199105

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-35040iLN10#,131,8#,YN10#,8#..DLX,SDX,SR,STD199211-199308

main75531-35041iLN100,106,107,8#,YN10#,8#..DLX,SDX,SR,STD199308-199501

main75531-35042iLN106,107,8#,YN8#..DLX,SDX,SR199501

main75531-35070iLN10#,131,8#,YN10#,8#..DLX,SDX,SR,STD199208-199211

main75531-35071iLN100,106,107,8#,YN10#,8#..DLX,SDX,SR,STD199308

main75531-35100iLN10#,YN10#..SR; LN107,130,VZN130..SSR,SSRX199303-199308

main75531-35101iKZN130,LN107,109,VZN130,YN107..SSR,SSRX; LN100,106,107,YN10#..SR199308-199501

main75531-35102iKZN130,LN107,108,109,112,VZN130,YN107..SSR,SSRX; LN106,107..SR199501

main75531-89105iLN10#,131,8#,YN10#,8#198904-198907

main75531-89106iLN10#,85,YN10#,8#..SDX,SR198809-198911

main75531-89109iLN10#,131,8#,YN10#,8#198911-199108

main75531-89111iLN10#,85,YN10#,8#..SDX,SR198911-199108

75533MOULDING, WINDSHIELD, OUTSIDE RH

main76503-89103iLN10#,131,8#,YN10#,8#198809-199108

main76503-89104iLN10#,YN10#..SR199108-199408

main76503-89105iLN10#,131,8#,YN10#,8#198809-199108

PLANT NO. A51,A52

75534MOULDING, WINDSHIELD, OUTSIDE LH

main76504-89103iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD199108-199511

PLANT.NO.P11

main76504-89104iKZN130,LN107,108,109,112,130,VZN130,YN107,130..SSR,SSRX198904

main76504-89105iLN10#,131,8#,YN10#,8#198809-199108

PLANT NO. A51,A52

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75504-89103iLN10#,131,8#,YN10#,8#198809-199108

main75504-89104iLN10#,85,YN10#,8#..SDX,SR198809-199108

main75504-89105iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD199108-199511

PLANT.NO.A51,A52

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-89102×6iLN10#,131,8#,YN10#,8#; LN10#,85,YN10#,8#..SDX,SR198809-199108

main75545-89103×6iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD199108

PLANT.NO.A51,A52

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-89106×2iKZN130,LN13#,VZN130,YN130198904

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-89103×5iLN10#,131,8#,YN10#,8#; LN10#,85,YN10#,8#..SDX,SR198809-199108

main75546-89105×3iLN10#,131,8#,YN10#,8#198809-199108

PLANT NO. A51,A52

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-89103×4iKZN130,LN107,108,109,112,130,VZN130,YN107,130..SSR,SSRX198904

main75547-89108×6iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD198809

75547CCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-89106iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#199108

RH,TYPE A

main75547-89107iLN130,VZN130,YN130198904-199108

LH,TYPE A

main75547-89111iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD198809

RH,TYPE B

main75547-89112iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD198809

LH,TYPE B

75547DCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-89104iKZN130,LN10#,112,13#,8#,VZN130,YN10#,8#199108

RH,TYPE A

main75547-89105iLN130,VZN130,YN130198904-199108

LH,TYPE A

main75547-89109iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD198809

RH,TYPE B

main75547-89110iLN100,106,107,131,8#,YN10#,8#..DLX,SDX,SR,STD198809

LH,TYPE B

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-16030×4iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

75611BMOULDING, SIDE PANEL, NO.1 RH

main75611-89102iLN106199408-199708

main75611-89103iLN100,YN100199012-199408

main75611-89104iLN85,YN85..T1..CBU199012-199408

main75611-89105iLN80,YN80..DLX,SDX199012-199408

main75611-89107iLN106..T1198908-199012

main75611-89108iLN100,YN100198809-199012

main75611-89109iLN85,YN85..T1..CBU199008-199012

main75611-89110iLN80,YN80..DLX,SDX199008-199012

75612BMOULDING, SIDE PANEL, NO.2 RH

main75612-89102iLN106,YN105;LN85,YN85..TW1199012

main75612-89103iLN100,YN100199012-199408

main75612-89104iLN86,YN86..SDX;LN85,YN85..T1..CBU199012

main75612-89105iLN80,YN80..DLX,SDX199012-199408

main75612-89106iLN106,85,YN105,85..TW1198908-198912

main75612-89107iLN100,YN100198809-199012

main75612-89108iLN85,YN85..T1..CBU198809-199008

main75612-89109iLN80,YN80..DLX,SDX198809-199012

main75612-89110iLN107,108,109,112,YN107..SSR,SSRX199108

75615CMOULDING, FRONT FENDER, REAR RH

main75615-35010iKZN130,VZN130199308-199511

main75615-35020iKZN130..4D..SSRX199508-199511

main75615-89108iLN8#,YN8#..(T1,TW1)..(DLX,SDX)..CBU199012-199408

main75615-89109iLN10#,YN10#199308-199408

main75615-89110iLN8#,YN8#..(T1,TW1)..(DLX,SDX)..CBU199008-199012

main75615-89111iLN10#,YN10#; LN130,VZN130,YN130198908-199012

75616CMOULDING, FRONT FENDER, REAR LH

main75616-35010iKZN130,VZN130199308-199511

main75616-35020iKZN130..4D..SSRX199508-199511

main75616-89108iLN8#,YN8#..(T1,TW1)..(DLX,SDX)..CBU199012-199408

main75616-89109iLN100,106,YN100,105199012-199708

main75616-89110iLN8#,YN8#..(T1,TW1)..(DLX,SDX)..CBU198809-199008

main75616-89111iLN10#,YN10#; LN130,VZN130,YN130198908-199012

75621BMOULDING, SIDE PANEL, NO.1 LH

main75621-89101iLN106..T1199012-199408

main75621-89102iLN100,YN100199012-199408

main75621-89103iLN86,YN86..SDX;LN85,YN85..T1..CBU199012-199708

main75621-89104iLN80,YN80..DLX,SDX199012-199408

main75621-89106iLN106..T1198809-198908

main75621-89107iLN100,YN100198809-199012

main75621-89108iLN85,YN85..T1..CBU199008-199012

main75621-89109iLN80,YN80..DLX,SDX198809-199008

75622BMOULDING, SIDE PANEL, NO.2 LH

main75622-89101iLN106,YN105;LN85,YN85..TW1199012

main75622-89102iLN100,YN100199012-199408

main75622-89103iLN86,YN86..SDX;LN85,YN85..T1..CBU199012

main75622-89104iLN80,YN80..DLX,SDX199012-199408

main75622-89105iLN106,YN105;LN85,YN85..TW1198809-198908

main75622-89106iLN100,YN100198809-199012

main75622-89107iLN85,YN85..T1..CBU198809-199008

main75622-89109iLN107,108,109,112,YN107..SSR,SSRX199108

75651MOULDING, QUARTER, OUTSIDE RH

main75651-89115iLN86,YN86..SDX199408-199708

main75651-89117iLN106,107,85,YN105,107,85..TW1; LN106,85,YN105,85..TW1199012-199408

main75651-89118iLN10#,YN100..T1; LN8#,YN8#..T1..(DLX,SDX)..CBU198908-199008

main75651-89120iLN106,YN105..TW1; LN85,YN85..TW1198908-199008

main75651-89121iLN130,VZN130,YN130..2D199012-199308

main75651-89122iLN130,VZN130,YN130..2D198904-199012

75652MOULDING, QUARTER, OUTSIDE LH

main75651-89115iLN86,YN86..SDX199408-199708

main75651-89118iLN10#,YN100..T1; LN8#,YN8#..T1..(DLX,SDX)..CBU198908-199008

main75652-89111iLN107,108,109,112,YN107..SSR,SSRX199408-199708

main75652-89112iLN106,YN105..TW1; LN85,YN85..TW1198908-199008

main75652-89113iLN130,VZN130,YN130..2D199012-199308

main75652-89114iLN130,VZN130,YN130..2D198904-199012

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-35010iKZN130,VZN130..4D199308-199511

main75731-35050iKZN130..4D..SSRX199508-199511

main75731-89107iLN100,106,80,85,YN100,80,85..T1..(DLX,SDX,SR)..CBU; LN86,YN86..SDX;LN100,106,130,80,85,VZN130,YN100,130,80,85..(2D,T1)..(DLX,SDX,SR,SSR,SSRX)..CBU199012-199708

main75731-89108iLN106,85,YN105,85..TW1199012-199408

main75731-89109iLN10#,8#,YN100,8#..T1..(DLX,SDX,SR)..CBU; LN130,VZN130,YN130..2D199008-199012

main75731-89110iLN106,YN105..TW1; LN130,85,YN130,85..4D,TW1198908-199008

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-35010iKZN130,VZN130..4D199308-199511

main75732-35050iKZN130..4D..SSRX199508-199511

main75732-89107iLN100,106,80,85,YN100,80,85..T1..(DLX,SDX,SR)..CBU; LN86,YN86..SDX;LN100,106,130,80,85,VZN130,YN100,130,80,85..(2D,T1)..(DLX,SDX,SR,SSR,SSRX)..CBU199012-199708

main75732-89108iLN106,85,YN105,85..TW1199012-199408

main75732-89109iLN10#,8#,YN100,8#..T1..(DLX,SDX,SR)..CBU; LN130,VZN130,YN130..2D199008-199012

main75732-89110iLN106,YN105..TW1; LN130,85,YN130,85..4D,TW1198908-199008

93510A4012

main93510-A4012

23 parts on this diagram · 4 diagrams in section
