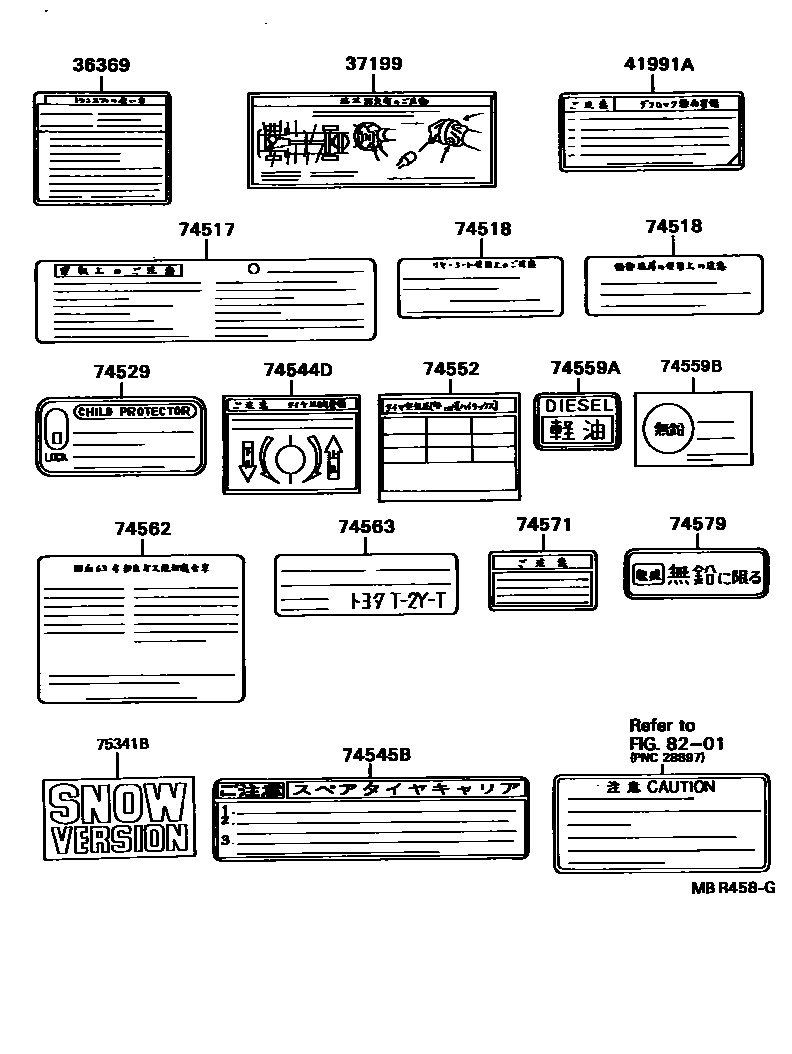

CAUTION PLATE

36369LABEL, TRANSFER INFORMATION

main35519-35090iVZN130,YN130..4FC198904-199109

main35519-35120iVZN130..4FC199109-199511

main36369-35130iLN106,107,YN107199411-199608

main36369-35131iLN106,107,YN107199608-199708

main36369-35160iKZN130,LN109,VZN130..5F; LN107,YN107..SSR199411-199608

main36369-35161iLN107,YN107..SSR; LN109199608-199708

main36369-35200iLN130..4FC199008-199108

main36369-35201iLN108,112..SSRX199608-199708

main36369-35250iLN100,106,107,YN10#199108-199411

main36369-35270iKZN130,LN109,13#,VZN130..5F; LN107,YN107..SSR..(DSL,EFI)199108-199411

main36369-35310iKZN130,LN130..4FC199108-199411

main36369-35360iLN108..SSR199508-199608

main36369-35361iLN108..SSR199608-199708

37199PLATE, MAINTENANCE CAUTION

main37199-35280iLN100,106,YN100,105198809-199506

main37199-35281iLN106199506

main37199-35400iKZN130,LN107,109,13#,VZN130,YN107,130198904-199506

main37199-35401iKZN130,LN107,108,109,112,VZN130,YN107199506

41991APLATE, CAUTION

main41991-60071iYN107..EFI;LN100,106,107,109,YN100,105199008

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-20010iYN80..STD198809-199408

main74517-26030iLN10#,112,8#,YN107,8#199701

main74517-32050iKZN130,LN10#,8#,VZN130,YN107,8#199408-199506

main74517-35010iKZN130,LN10#,112,8#,VZN130,YN107,8#199506-199701

74518PLATE, MAINTENANCE CAUTION

main74518-89103iLN131198904-198907

main74518-89104iLN131198907-199308

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010×2iKZN130,LN13#,VZN130,YN130..4D198904-199511

74544DPLATE, TIRE CARRIER CAUTION

main74544-35060iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#..2D,4D,T1,T3,TW1199008

main74544-35070iYN85..T2;LN85..T2,T3,TW1198809-199008

74545BLABEL, TIRE CARRIER NOTICE, NO.2

main74545-35010iKZN130,LN130,VZN130..SSRX199108-199511

74552PLATE, SAFETY CAUTION

main42661-35070iLN100,YN100198809-199008

main42661-35110iLN13#,YN130..DSL,EFI,TD198904-199108

main42661-35230iLN130,VZN130199008-199108

main42661-35231iKZN130..SSR199506-199511

main42661-35240iLN100,107,YN100,107199008-199506

main42661-35241iLN107,108,YN107199506

main42661-35250iLN106,YN105199008-199506

main42661-35251iLN106199506

main42661-35300iLN130,VZN130..SSRX199108-199308

main42661-35350iKZN130,VZN130..SSRX199308-199506

main42661-35351iKZN130,VZN130..SSRX199506-199511

main42661-35390iLN109199408-199506

main42661-35391iLN109,112199506

main42661-35400iLN86..TW1199408-199506

main42661-35401iLN86..TW1199506

main74552-35062iYN8#..T1,TW1198809-199408

main74552-35111iLN8#..T1,TW1198809-199408

main74552-35120iLN106,YN105198809-199008

main74552-35130iLN85,YN85..T3;YN86..T1,T3,TW1;LN81,86,YN81..T1,T3198809-199506

main74552-35131iYN86..T1,T3,TW1;LN8#,YN81..T1,T3199506

main74552-35190iLN85,86,YN85,86..T2198809-199506

main74552-35191iLN86,YN86..T2199506

74559APLATE, FUEL CAUTION

main74559-14030iKZN130,LN10#,112,13#,8#198809

74559BLABEL, FUEL INFORMATION

main74559-14010iYN10#,130,8#198809-198908

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-22410iLN130198904-199008

main74562-35140iYN130198904-199108

main74562-35150iLN8#198809-199408

main74562-35160iYN8#198809-199008

main74562-35161iYN8#199008-199408

main74562-35170iYN10#198809-199408

main74562-35180iLN10#,131198809-199108

main74562-35200iVZN130199008-199504

main74562-35210iLN10#,131199108-199408

main74562-35220iYN107,8#199408-199505

main74562-35230iLN10#,8#..T1,T3,TW1199408-199505

main74562-35240iLN86..T1,T3,TW1199410-199505

main74562-60210iLN130199008-199308

main74562-60230iKZN130199308-199408

main74562-60250iKZN130199408-199505

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-35080iYN8#198809-199408

main74563-35090iYN100,105;YN107..SSR198809-199408

main74563-35100iYN107,8#199408

main74563-35110iLN106,107,109,8#..T1,T3,TW1199408

main74563-35120iLN106,107199408

main74563-35130iLN108,112199508

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199307

74579PLATE, UNLEADED FUEL CAUTION

main74579-30011iVZN130,YN10#,130,8#198809-199203

75341BPLATE, HOOD NAME

main75341-20060iLN10#,13#,8#,VZN130,YN10#,130,8#199008-199108

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

17 parts on this diagram · 1 diagram in section
