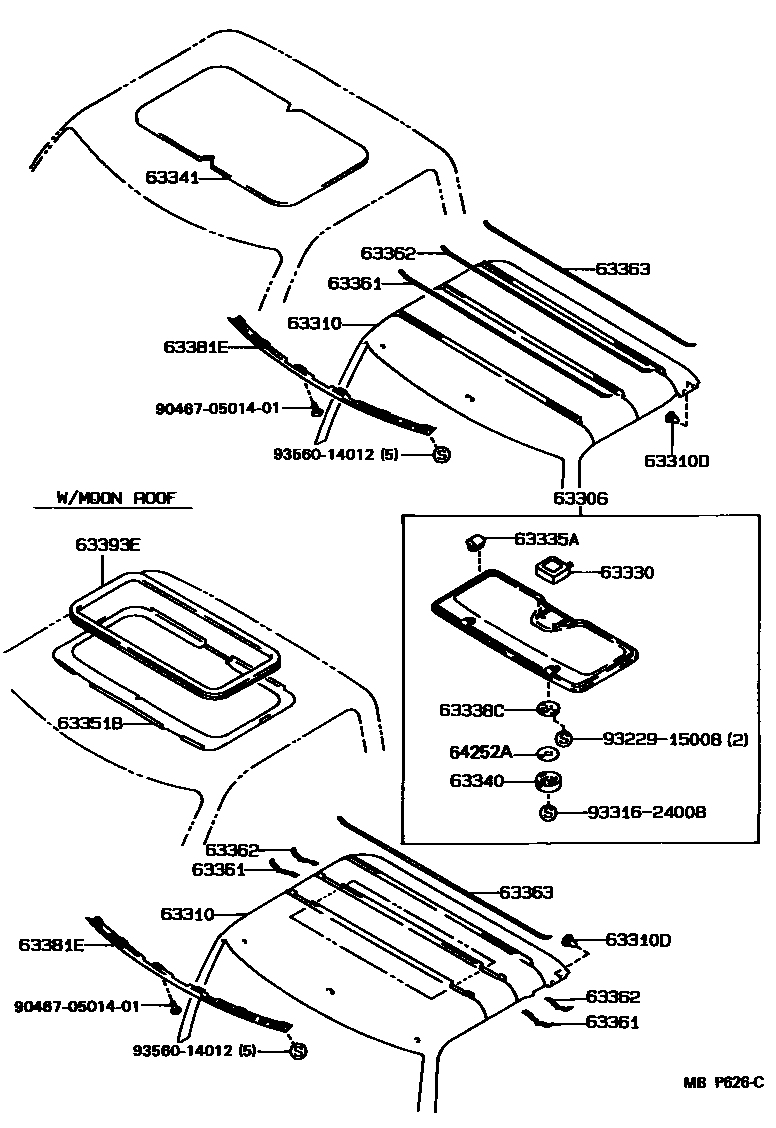

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-35010-B0iLN107..SSR;LN100,YN100199108-199408

GRAY,TRIM1#

main63306-35010-J0iLN107..SSR;LN100,YN100199108-199408

BLUE,TRIM8#

main63306-35030-B0iLN107,108,109,112,YN107..SSR,SSRX199408

GRAY,TRIM1#

main63306-89102-03iLN100,YN100198809-199108

GRAY,TRIM1#

main63306-89102-04iLN100,YN100198809-199108

BLUE,TRIM8#

63310HEADLINING ASSY, ROOF

main63311-35010-B0iLN107,108,109,112,YN107..(SSR,SSRX)..(DSL,EFI,TDE)199108

main63311-35010-J0iLN107..SSR199108-199408

main63311-35060-B1iKZN130..SSR199408-199511

GRAY,TRIM1#

main63311-35070-B1iKZN130,VZN130..SSRX; KZN130..SSR199408-199511

main63311-35090-B1iKZN130,VZN130..SSRX; KZN130..SSR199408-199511

main63311-89123-03iLN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)198902-199109

GRAY,TRIM1#

main63311-89123-04iLN10#,8#,YN100,8#..RCB198809-198902

BLUE,TRIM8#

main63311-89123-06iLN8#,YN8#..RCB..(DLX,SDX)198809-199108

BROWN,TRIM4#

main63311-89123-B0iLN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)199109

SLATE GRAY,TRIM1#

main63311-89123-J1iLN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)199108-199408

LIGHT BLUE,TRIM8#

main63311-89125-03iLN100,YN100198809-199408

main63311-89125-04iLN100,YN100198809-199108

main63311-89125-J1iLN100,YN100199108-199408

main63311-89130-03iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

GRAY,TRIM1#

main63311-89130-04iLN106,85,YN105,85..TW1198809-199108

BLUE,TRIM8#

main63311-89130-06iLN85,YN85..TW1198809-199108

BROWN,TRIM4#

main63311-89130-J1iLN107,85,YN107,85..TW1199108-199408

BLUE,TRIM8#

main63311-89132-03iKZN130,LN131..SR,SSR198904-199408

GRAY,TRIM1#

main63311-89132-04iLN131199008-199108

BLUE,TRIM8#

main63311-89132-J0iLN131199108-199308

BLUE,TRIM8#

main63311-89133-02iLN130,VZN130,YN130198904-199108

RED,TRIM3#

main63311-89133-03iKZN130..SSR199308-199408

main63311-89133-04iLN130,VZN130,YN130; LN131199008-199108

main63311-89133-06iLN130,VZN130,YN130198904-199108

BROWN,TRIM4#

main63311-89133-J0iLN130..2D..SSR;LN130,VZN130..4D199108-199308

BLUE,TRIM8#

main63311-89135-02iLN130,VZN130,YN130198904-199108

main63311-89135-03iLN130,VZN130,YN130; LN131198904-199108

main63311-89135-04iLN130,VZN130,YN130; LN131199008-199108

main63311-89135-06iLN130,VZN130,YN130198904-199108

main63311-89135-J0iLN130..2D..SSR;LN13#,VZN130..4D199108-199308

main63311-89136-03iYN80..STD198902-199408

GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-08122×4iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809-199708

main90467-09110-02×4iLN130,VZN130,YN130198904-199108

RED,TRIM3#

main90467-09110-03×6iKZN130,VZN130199408-199511

GRAY,TRIM1#

main90467-09110-04×4iLN13#,VZN130,YN130199008-199108

BLUE,TRIM8#

main90467-09110-06×4iLN130,VZN130,YN130198904-199108

BROWN,TRIM4#

main90467-09110-J0×4iLN130..2D..SSR;LN13#,VZN130..4D199108-199308

BLUE,TRIM8#

main90467-10044-14×4iLN10#,8#,YN100,8#..RCB198809-198901

BLUE,TRIM8#

main90467-10044-16×4iLN8#,YN8#..RCB..(DLX,SDX)198809-198901

BROWN,TRIM4#

main90467-10044-33×4iLN10#,8#,YN100,8#..RCB198809-198901

GRAY,TRIM1#

main90467-10044-B0×4iLN100,106,8#,YN100,8#..RCB198901-199708

SLATE GRAY,TRIM1#

main90467-10044-E0×4iLN8#,YN8#..RCB..(DLX,SDX)198901-199108

LIGHT BROWN,TRIM4#

main90467-10044-J0×4iLN10#,8#,YN100,8#..RCB198901-198908

LIGHT BLUE,TRIM8#

main90467-10044-J1×4iLN100,106,8#,YN100,8#..RCB..(DLX,SDX,SR)199108-199408

LIGHT BLUE,TRIM8#

63330LOCK ASSY, SUNSHADE TRIM

main63330-16010iLN107,108,109,112,YN107..SSR,SSRX199408

main63330-89101iLN107..SSR;LN100,YN100198809-199408

63335ACUSHION, SUNSHADE TRIM, NO.1

main63335-35010×2iLN100,108,109,112,YN100;LN107,YN107..SSR..(DSL,EFI)199108

FRONT

main63335-35020×2iLN100,108,109,112,YN100;LN107,YN107..SSR..(DSL,EFI)199108

REAR

main63335-89102×4iLN100,YN100198809-199108

63338CSTOPPER, SUNSHADE LOCK, NO.2

main63338-12010iLN100,108,109,112,YN100;LN107,YN107..SSR..(DSL,EFI)198809

63340HANDLE ASSY, SUNSHADE TRIM LOCK

main63340-12010-04iLN100,YN100198809-199108

BLUE,TRIM8#

main63340-12010-23iLN107..SSR;LN100,YN100198809-199408

GRAY,TRIM1#

main63340-12010-J0iLN107..SSR;LN100,YN100199108-199408

BLUE,TRIM8#

main64251-16010-B1iLN107,108,109,112,YN107..SSR,SSRX199408

GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-35050iKZN130,VZN130199411-199511

main63341-89110iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809-199708

main63341-89116iLN100,106,80,85,YN100,80,85..RCB198809-199708

main63341-89122iKZN130,LN13#,VZN130,YN130198904-199411

63351BPAD, ROOF HEADLINING

main63351-89107iLN100,108,109,112,YN100;LN107,YN107..SSR..(DSL,EFI)198809

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-35010×2iLN107..SSR199108-199112

main63361-35011×2iLN107,108,109,112,YN107..(SSR,SSRX)..(DSL,EFI,TDE)199112

main63361-89113×2iLN100,YN100198809-199408

main63361-89116iLN100,106,8#,YN100,8#..RCB198809

main63361-89118iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-35010×2iLN107..SSR199108-199112

main63361-35011×2iLN107,108,109,112,YN107..(SSR,SSRX)..(DSL,EFI,TDE)199112

main63361-89113×2iLN100,YN100198809-199408

main63361-89120iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main63361-89123iLN100,106,8#,YN100,8#..RCB198809

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-89120iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main63361-89123iLN100,106,8#,YN100,8#..RCB198809

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-89104iLN10#,112,8#,YN10#,8#198809

63393ETRIM, ROOF HEADLINING

main63393-89104-04iLN100,YN100198809-199108

BLUE,TRIM8#

main63393-89104-23iLN100,108,109,112,YN100;LN107,YN107..SSR..(DSL,EFI)198809

GRAY,TRIM1#

main63393-89104-J0iLN107..SSR;LN100,YN100199108-199408

BLUE,TRIM8#

64252ASPACER, SUNSHADE TRIM LOCK

main64252-17010iLN107..SSR;LN100,YN100198809-199408

904670501401

main90467-0501401

9322915008

main93229-15008

9331624008

main93316-24008

9356014012

main93560-14012

19 parts on this diagram · 3 diagrams in section
