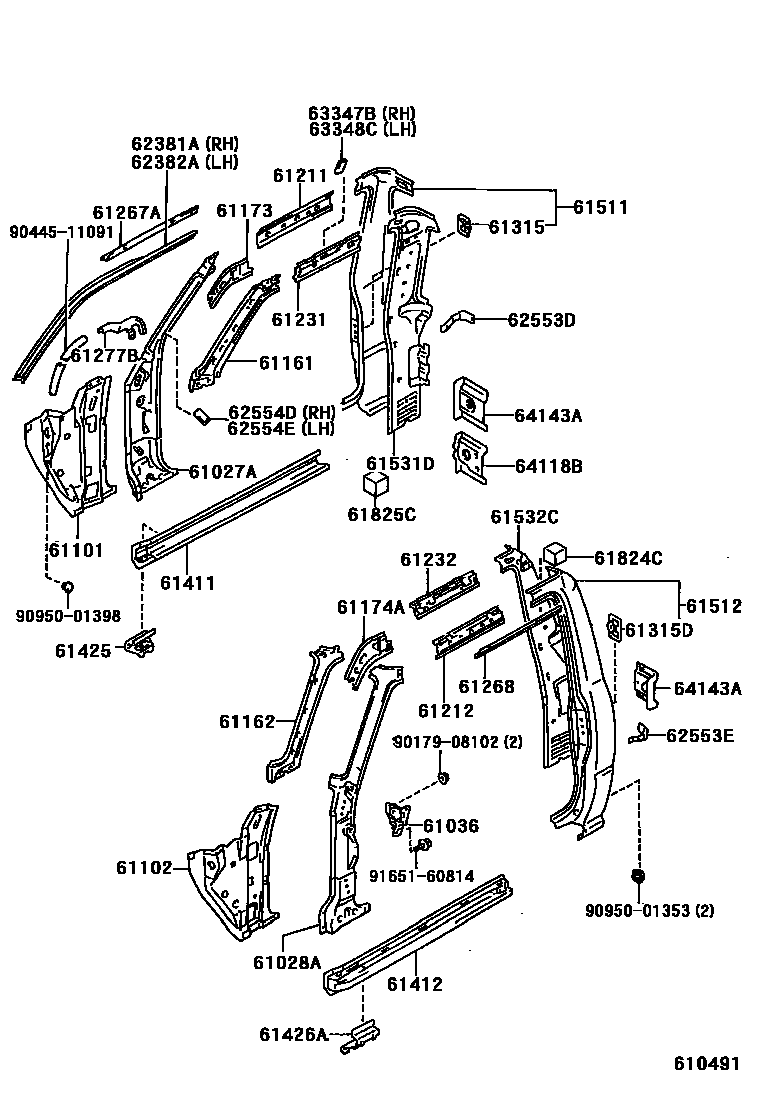

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1��(�-��- �����)

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-89115iLN10#,112,8#,YN10#,8#198809

main61027-89901iKZN130,LN13#,VZN130,YN130198904-199511

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-89115iLN10#,112,8#,YN10#,8#198809

main61028-89901iKZN130,LN13#,VZN130,YN130198904-199511

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-89101iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-89135iLN10#,112,8#,YN10#,8#198809

main61101-89900iKZN130,LN13#,VZN130,YN130198904-199511

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-35020iLN106,107,109; LN108,112,YN107,8#199408

main61102-89130iLN100,106,107,109,8#,YN10#,80,85..CBR,DSL198809

main61102-89900iKZN130,LN130,VZN130,YN130198904-199511

main61102-89901iLN131198904-199308

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-35020iKZN130,LN10#,112,13#,VZN130,YN10#199108

main61161-89108iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-35020iKZN130,LN10#,112,13#,VZN130,YN10#199108

main61162-89108iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-35020iKZN130,LN13#,VZN130199108-199511

main61173-89103iLN10#,112,8#,YN10#,8#198809

main61173-89104iLN13#,VZN130,YN130198904-199108

61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH

main61174-35020iKZN130,LN13#,VZN130199108-199511

main61174-89102iLN10#,112,8#,YN10#,8#198809

main61174-89103iLN13#,VZN130,YN130198904-199108

61211RAIL, ROOF SIDE, OUTER RH

main61211-89107iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main61211-89108iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main61211-89109iKZN130,LN13#,VZN130,YN130..4D198904-199511

61212RAIL, ROOF SIDE, OUTER LH

main61212-89107iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main61212-89108iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main61212-89109iKZN130,LN13#,VZN130,YN130..4D198904-199511

61231RAIL, ROOF SIDE, INNER RH

main61231-89113iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main61231-89114iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1199008

main61231-89115iLN106,85,YN105,85..TW1198809-199008

main61231-89117iKZN130,LN13#,VZN130,YN130..4D198904-199511

61232RAIL, ROOF SIDE, INNER LH

main61232-89113iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main61232-89114iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main61232-89117iKZN130,LN13#,VZN130,YN130..4D198904-199511

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-89101iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main61267-89102iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main61267-89103iKZN130,LN13#,VZN130,YN130..4D198904-199511

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-89101iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main61268-89102iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main61268-89103iKZN130,LN13#,VZN130,YN130..4D198904-199511

61277BJOINT, ROOF DRIP CHANNEL

main61277-89101iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

main61278-89101iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

61315RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

61315DRETAINER, DOOR LOCK STRIKER, LH

main61315-22020iLN10#,13#,8#,VZN130,YN10#,130,8#198809-199108

61411PANEL, ROCKER, OUTER RH

main61401-89103iKZN130,LN13#,VZN130,YN130..4D198904-199511

main61401-89104iKZN130,LN130,VZN130,YN130..2D198904-199511

main61411-35010iLN100,106,8#,YN100,8#..RCB199008

main61411-35020iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1199008

main61411-89109iLN10#,8#,YN100,8#..RCB198809-199008

main61411-89110iLN106,85,YN105,85..TW1198809-199008

61412PANEL, ROCKER, OUTER LH

main61402-89103iKZN130,LN13#,VZN130,YN130..4D198904-199511

main61402-89104iKZN130,LN130,VZN130,YN130..2D198904-199511

main61412-35010iLN100,106,8#,YN100,8#..RCB199008

main61412-35020iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1199008

main61412-89109iLN10#,8#,YN100,8#..RCB198809-199008

main61412-89110iLN106,85,YN105,85..TW1198809-199008

61425REINFORCEMENT, ROCKER PANEL, NO.4 RH

main61425-35010iLN10#,112,8#,YN10#,8#199008

61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH

main61426-35010iLN10#,112,8#,YN10#,8#199008

61511PILLAR, QUARTER LOCK, RH

main61501-35010iLN109,112199408

main61501-89122iLN100,106,8#,YN100,8#..RCB198809

main61501-89125iLN106,107,108,85,86,YN105,107,85,86..TW1198809

61512PILLAR, QUARTER LOCK, LH

main61502-35010iLN100,106,8#,YN100,8#..RCB199304

main61502-35020iLN109,112199408

main61502-89127iLN100,106,8#,YN100,8#..RCB198809-199304

main61502-89129iLN106,107,108,85,86,YN105,107,85,86..TW1198809

61531DPANEL, CAB REAR PILLAR, INNER RH

main61531-89124iLN106,8#,YN8#..RCB..(DLX,STD)198809

main61531-89125iYN107..SSR;LN107,108,109,112,85,86,YN85,86..TW1199308

main61531-89126iLN106,107,85,YN105,107,85..TW1198809-199308

main61531-89127iLN100,106,85,86,YN100,80,85,86..T1..(SDX,SR)198809

61532CPANEL, CAB REAR PILLAR, INSIDE LH

main61532-89124iLN106,8#,YN8#..RCB..(DLX,STD)198809

main61532-89126iLN106,85,YN105,85..TW1198809-199001

main61532-89127iLN100,106,85,86,YN100,80,85,86..T1..(SDX,SR)198809

main61532-89128iLN107,85,YN107,85..TW1199108-199308

main61532-89129iLN106,107,85,YN105,107,85..TW1199001-199308

61824PLATE, NOISE CONTROL, NO.1

main61824-89106×2iLN130,VZN130,YN130..2D198904-199107

main61825-20100×2iKZN130,LN130,VZN130,YN130..2D199107-199511

61824CPAD, NOISE SHUTTER, NO.1

main61824-89104×2iLN100,106,8#,YN100,8#..RCB198809-199208

main61824-89108×2iYN130..4D..4FC198912-199001

main62151-20170×2iKZN130,LN13#,VZN130..4D199108-199511

61825CPAD, NOISE SHUTTER, NO.2

main61825-89102×2iLN10#,8#,YN100,8#..RCB198809-199108

main62151-20170×2iLN100,106,8#,YN100,8#..RCB199108

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-89101iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main62381-89102iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main62381-89103iKZN130,LN13#,VZN130,YN130..4D198904-199511

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-89101iKZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3198809

main62382-89102iLN106,107,108,109,112,85,86,YN105,107,85,86..TW1198809

main62382-89103iKZN130,LN13#,VZN130,YN130..4D198904-199511

62553DPAD, PILLAR, NO.3

main62553-89101iLN100,106,80,85,YN100,80,85..RCB198809

62553EPAD, PILLAR, NO.3

main62553-89101iLN100,106,80,85,YN100,80,85..RCB198809

62554DPAD, FRONT PILLER

main62554-89102iYN107..SR;LN100,106,107,13#,80,85,VZN130,YN100,105,130,80,85198909

62554EPAD, PILLAR, NO.4

main62554-89102iYN107..SR;LN100,106,107,13#,80,85,VZN130,YN100,105,130,80,85198909

63347BPAD, ROOF SIDE RAIL SILENCER, RH

main63347-89102iLN100,106,80,85,YN100,80,85..RCB198909

63348CPAD, ROOF SIDE RAIL SILENCER, LH

main63347-89102iLN100,106,80,85,YN100,80,85..RCB198909

64118BREINFORCEMENT, CAB BACK SIDE, RH

main64118-89103iLN100,106,YN100..T1198809

64143AREINFORCEMENT, BACK CORNER PANEL, RH

main64143-89104iLN10#,8#,YN100,8#..RCB198809-199001

main64143-89106iLN10#,8#,YN100,8#..RCB199001-199108

main64144-89104iLN10#,8#,YN100,8#..RCB199001-199108

9017908102

main90179-08102

9044511091

main90445-11091

9095001353

main90950-01353

9095001398

main90950-01398

9165160814

main91651-60814

44 parts on this diagram · 5 diagrams in section
