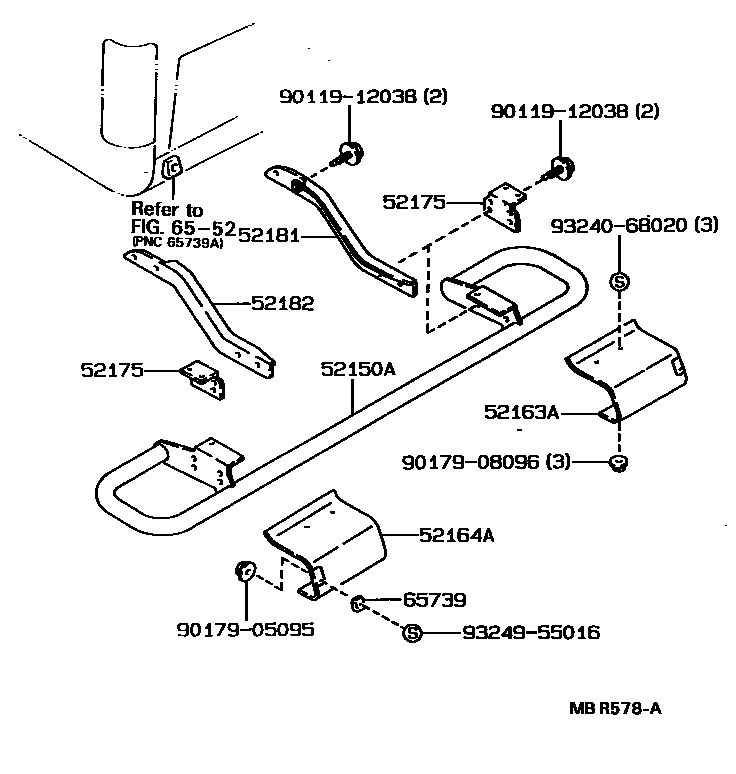

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52150ABUMPER ASSY, REAR

main52105-35030iKZN130..4D..SSRX199408-199503

main52105-35050-A0iKZN130..4D..SSRX199508-199511

main52105-35050-F0iKZN130,LN130,VZN130..SSRX199108-199411

main52105-35070-F0iKZN130..4D..SSRX199404-199407

main52105-35090iLN131199108-199308

main52105-35150iKZN130..SSR199411-199511

main52105-89116iLN131198904-199108

main52105-89117iKZN130..4D..SSRX199408-199503

main52105-89120-03iLN13#,YN130198904-198908

SILVER.M,27L

main52105-89120-13iLN13#,VZN130,YN130198904-199108

D.GRAY.M,28L

main52105-95111iLN100,109,112,YN100198809-199708

52163APLATE, REAR BUMPER, RH

main52163-89103iLN100,109,112,YN100198809

52164APLATE, REAR BUMPER, LH

main52164-89102iLN100,109,112,YN100198809

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-95110×2iLN100,109,112,YN100198809

52181ARM, REAR BUMPER, RH

main52181-89119iLN100,YN100198809-199408

main52181-89120iLN109,112199408

52182ARM, REAR BUMPER, LH

main52182-89116iLN100,YN100198809-199408

main52182-89117iLN109,112199408

6552REAR BODY FLOOR & FENDER

→ Go to FIG 65-52

65739BUMPER, TAIL GATE

main65739-89101×2iLN100,109,112,YN100198809

9011912038

main90119-12038

9017905095

main90179-05095

9017908096

main90179-08096

9324068020

main93240-68020

9324955016

main93249-55016

13 parts on this diagram · 2 diagrams in section
