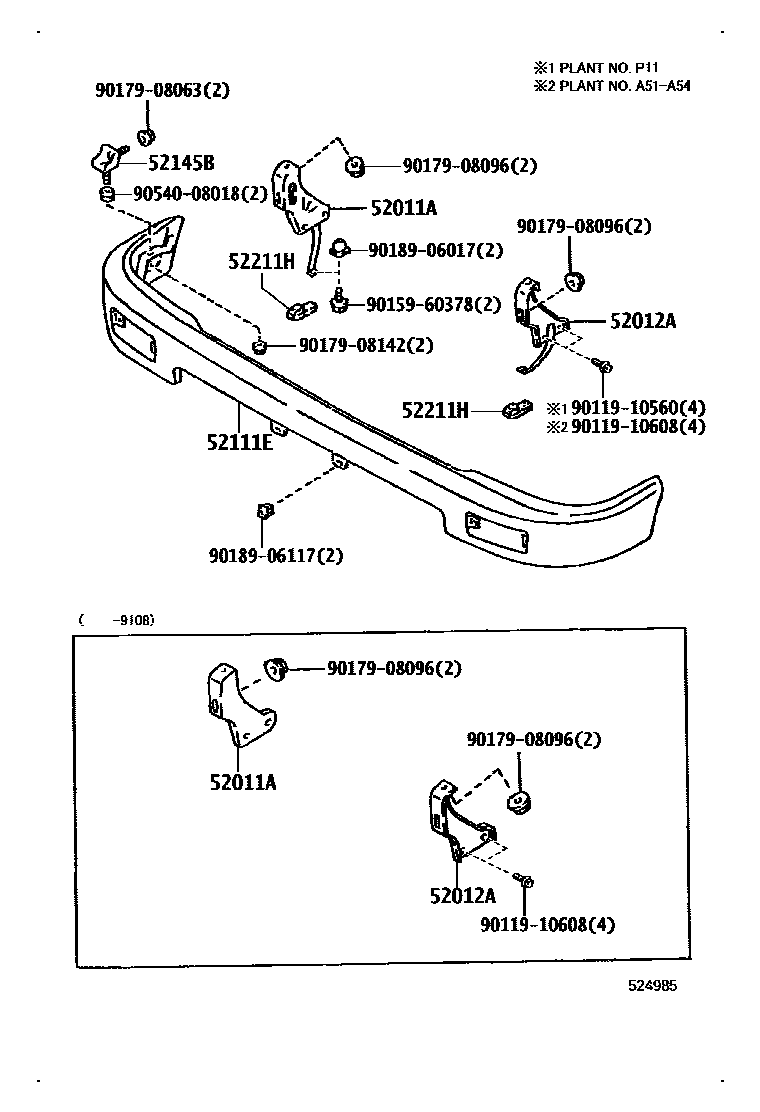

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0006 1 0007 1 0009 1��(���� ����� ��-��) 0010 1��(���� ����� ���� ��-��)

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-35030iLN100,109,112,YN100199108

main52011-35040iLN106,107,108,YN107199108

main52011-35050iKZN130,LN13#,VZN130199108-199511

main52011-35060iLN80,81,YN80,81199108

main52011-89114iLN106,85,YN105,85198809-199108

main52011-89115iLN80,YN80198809-199108

main52011-89116iLN100,YN100198809-199108

main52011-89117iLN13#,VZN130,YN130198904-199108

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-35030iLN100,109,112,YN100199108

main52012-35040iLN106,107,108,YN107199108

main52012-35050iKZN130,LN13#,VZN130199108-199511

main52012-35060iLN80,81,YN80,81199108

main52012-89114iLN106,85,YN105,85198809-199108

main52012-89115iLN80,YN80198809-199108

main52012-89116iLN100,YN100198809-199108

main52012-89117iLN13#,VZN130,YN130198904-199108

52111EBAR, FRONT BUMPER

main52101-35060iLN80,81,YN80,81..DLX,STD199108-199708

main52101-35070iYN80..SDX199108-199408

main52101-35080iLN100,YN100199108-199408

main52101-35090iLN100,109,112,YN100199108-199708

main52101-35110iLN106,107,YN107..DLX,SR199108-199708

main52101-35120iLN107,108,YN107..SSR,SSRX199408-199708

main52101-35130iLN131199108-199308

main52101-35160-F0iKZN130,LN130..SSR199108-199511

main52101-35170iKZN130,LN130..SSR199108-199511

main52101-35180iKZN130,LN130,VZN130..SSRX199108-199511

main52101-35190-A0iKZN130..4D..SSRX199508-199511

main52101-35190-F0iKZN130..4D..SSRX199404-199407

main52101-35250iLN85,86,YN85,86..DLX199108-199708

main52101-89107iLN80,YN80198809-199108

main52101-89109iYN80..SDX198908-199108

main52101-89111iLN106,85,YN105,85198809-199108

main52101-89112iLN85,86,YN85,86..SDX199108-199708

main52101-89113iLN100,131,YN100198809-199108

main52101-89114iLN100,130,VZN130,YN100,130198809-199108

main52101-89117-03iLN13#,YN130198904-198908

main52101-89117-13iLN13#,VZN130,YN130198904-199108

52145BBRACKET, FRONT BUMPER SIDE MOUNTING

main52145-89102×2iLN100,13#,80,VZN130,YN100,130,80198809-199108

52211HCUSHION(FOR FRONT BUMPER ARM)

main52211-89101×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

9011910560

main90119-10560

9011910608

main90119-10608

9015960378

main90159-60378

9017908063

main90179-08063

9017908096

main90179-08096

9017908142

main90179-08142

9018906017

main90189-06017

9018906117

main90189-06117

9054008018

main90540-08018

14 parts on this diagram · 6 diagrams in section
