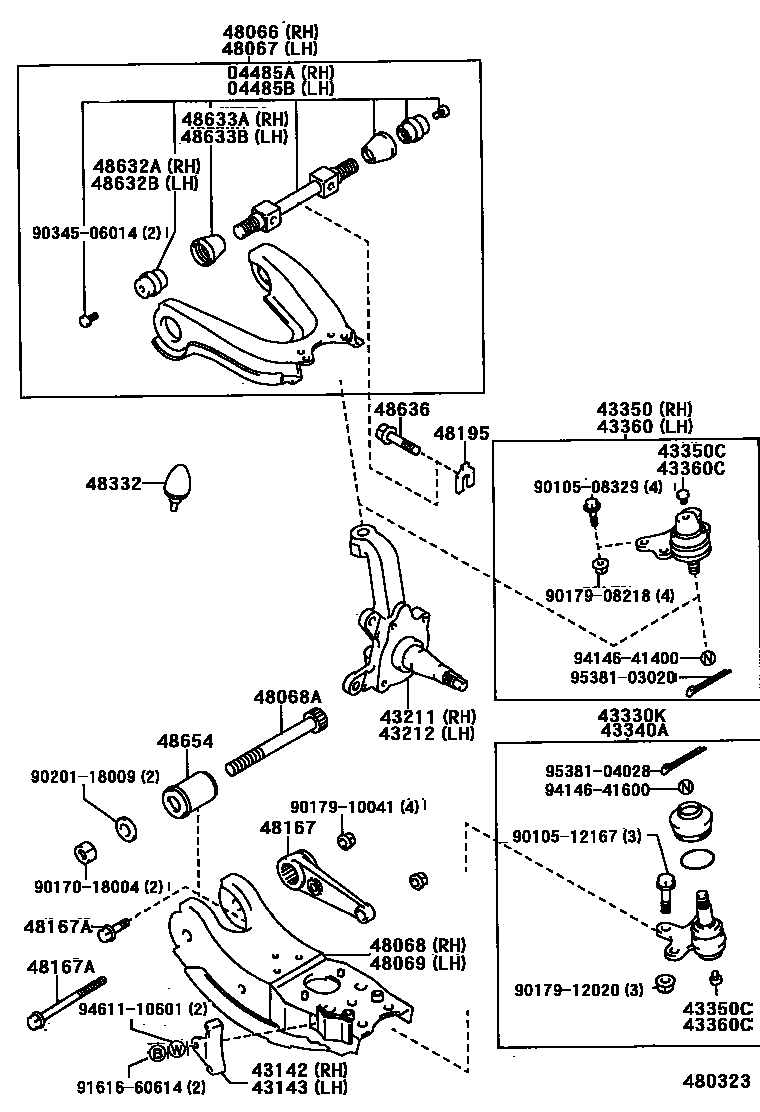

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35020iLN8#,YN8#198809

main04485-35060iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35020iLN8#,YN8#198809

main04485-35060iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

43142SEAT, STEERING KNUCKLE STOPPER, RH

main43142-35010iLN8#,YN8#199308

43143SEAT, STEERING KNUCKLE STOPPER, LH

main43142-35010iLN8#,YN8#199308

43211KNUCKLE, STEERING, RH

main43201-35040iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main43211-35090iLN100,106,YN100,105198809

main43211-35130iLN8#,YN8#198809

43212KNUCKLE, STEERING, LH

main43202-35030iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main43212-35050iLN100,106,YN100,105198809

main43212-35090iLN8#,YN8#198809

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39245iLN8#,YN8#198809-199108

main43330-39265iLN13#,VZN130,YN130198904-199108

main43330-39295iLN8#,YN8#199108

main43330-39315iKZN130,LN107,108,109,112,13#,VZN130,YN107199108

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39295iLN8#,YN8#199108

main43340-39225iLN8#,YN8#198809-199108

main43340-39245iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39075iLN8#,YN8#198809

main43350-39085iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iKZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8#198809

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39075iLN8#,YN8#198809

main43360-39085iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iKZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8#198809

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35050iLN8#,YN8#198809

main48066-35110iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35050iLN8#,YN8#198809

main48067-35060iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35050iKZN130,LN107,109,13#,VZN130,YN107,130198904-199410

main48068-35051iKZN130,LN107,108,109,112,VZN130,YN107199410

main48605-35120iLN8#,YN8#198809-199108

main48605-35121iLN8#,YN8#199108

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003iLN8#,YN8#198809

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35050iKZN130,LN107,109,13#,VZN130,YN107,130198904-199410

main48069-35051iKZN130,LN107,108,109,112,VZN130,YN107199410

main48606-35120iLN8#,YN8#198809-199108

main48606-35121iLN8#,YN8#199108

48167ARM, TORQUE

main48167-35020iLN8#,YN8#198809-199108

main48167-35040iLN8#,YN8#199108

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087iLN8#,YN8#198809

L=129

main90105-10088iLN8#,YN8#198809

L=26

48195SHIM, CAMBER ADJUST

main90565-12004iLN8#,YN8#198809

main90565-12008iLN8#,YN8#198809

main90565-12009iLN8#,YN8#198809

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iLN8#,YN8#198809

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-30012iLN8#,YN8#198809

main48632-35050iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main48635-35010iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-30012iLN8#,YN8#198809

main48632-35050iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main48635-35010iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-35010iLN8#,YN8#198809

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-35010iLN8#,YN8#198809

48636BOLT, UPPER ARM SET

main90105-12080iLN8#,YN8#198809

48654BUSH, LOWER ARM

main48654-35010iLN8#,YN8#198809

9010508329

main90105-08329

9010512167

main90105-12167

9017018004

main90170-18004

9017908218

main90179-08218

9017910041

main90179-10041

9017912020

main90179-12020

9020118009

main90201-18009

9034506014

main90345-06014

9161660614

main91616-60614

9414641400

main94146-41400

9414641600

main94146-41600

9461110601

main94611-10601

9538103020

main95381-03020

9538104028

main95381-04028

41 parts on this diagram · 3 diagrams in section
