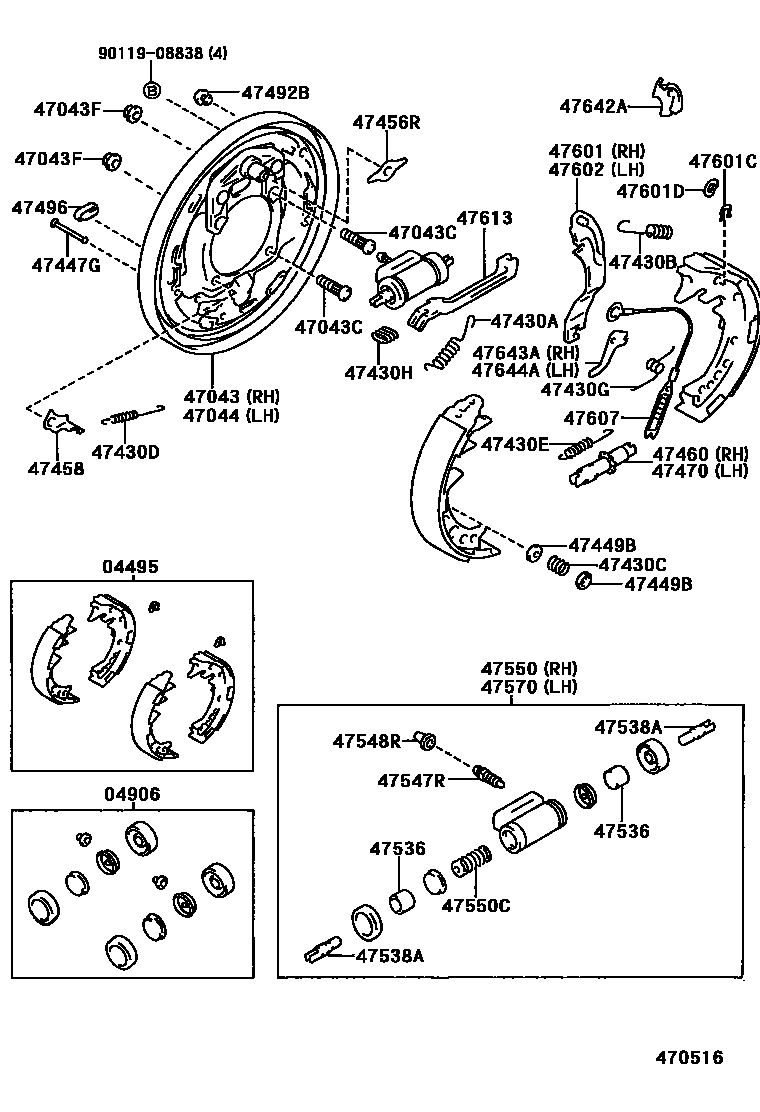

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1 0004 1 0005 1

04495SHOE KIT, REAR BRAKE

main04495-35101iLN8#,YN8#198809-199010

main04495-35122iLN86,YN86..T2;LN80,85,YN80,85199010

main04495-35151iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

main04495-35200iLN8#,YN8#..T1,T3,TW1199408

main04497-26090iLN10#,13#,VZN130,YN10#,130198809-199010

REBUILT

main04497-35070iLN8#,YN8#198809-199010

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26050iKZN130,LN13#,VZN130199108-199511

main04906-30120iLN8#,YN8#..T1,T3,TW1199408

main04906-31010iLN85,86,YN85,86..T2198809

main04906-35080iLN8#,YN8#..T1,T3,TW1198809-199408

main04906-35100iLN10#,112,YN10#199108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26120iLN8#,YN8#..T1,T3,TW1199408

main47043-35130iLN86,YN86..T2;LN80,85,YN80,85198809

main47043-35150iLN10#,112,YN10#198809

main47043-35160iKZN130,LN13#,VZN130,YN130198904-199511

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×8iKZN130,LN13#,81,86,VZN130,YN81,86..2D,4D,T1,T3,TW1; LN10#,112,YN10#199108-199708

main90114-10016×4iLN86,YN86..T2;LN80,85,YN80,85198809-199708

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067×8iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809-199708

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26120iLN8#,YN8#..T1,T3,TW1199408

main47044-35120iLN86,YN86..T2;LN80,85,YN80,85198809

main47044-35140iLN10#,112,YN10#198809

main47044-35150iKZN130,LN13#,VZN130,YN130198904-199511

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iLN86,YN86..T2;LN80,85,YN80,85198809

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iLN86,YN86..T2;LN80,85,YN80,85198809

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iKZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1198809

main90501-20604×4iLN86,YN86..T2;LN80,85,YN80,85198809

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412×2iLN86,YN86..T2;LN80,85,YN80,85198809

main90506-18031×2iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

main90506-18299×2iLN8#,YN8#..T1,T3,TW1199408

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-16343×2iLN86,YN86..T2;LN80,85,YN80,85198809

main90506-26011iLN130,VZN130..SSR;LN10#,112,131,YN10#,130198809

main90506-26014iLN130..SSRX;KZN130,VZN130199108-199511

main90507-12036×2iLN8#,YN8#..T1,T3,TW1199408

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031×2iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

main90508-20261iLN86,YN86..T2;LN80,85,YN80,85198809

main90508-20262iLN86,YN86..T2;LN80,85,YN80,85198809

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-18012×2iLN86,YN86..T2;LN80,85,YN80,85198809

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLN8#,YN8#198809

main47447-30020×4iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010×2iLN86,YN86..T2;LN80,85,YN80,85198809

47458BRACKET, REAR BRAKE SHOE RETURN SPRING

main47457-35020iLN86,YN86..T2;LN80,85,YN80,85198809

main47458-35020iLN86,YN86..T2;LN80,85,YN80,85198809

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35020iLN8#,YN8#199408

main47061-60011iLN10#,112,YN10#198809

main47062-60011iKZN130,LN13#,VZN130,YN130198904-199511

main47405-30020iLN8#,YN8#198809-199408

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-60011iKZN130,LN13#,VZN130,YN130198904-199511

main47062-35020iLN8#,YN8#199408

main47062-60011iLN10#,112,YN10#198809

main47406-30020iLN8#,YN8#198809-199408

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iKZN130,LN10#,112,13#,81,86,VZN130,YN10#,130,81,86..2D,4D,T1,T3,TW1198809

main47491-35040×2iLN86,YN86..T2;LN80,85,YN80,85198809

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-30040×4iLN8#,YN8#..T1,T3,TW1199408

main47531-26070×4iLN8#,YN8#..T1,T3,TW1198809-199408

main47531-26080×4iLN85,86,YN85,86..T2198809

47538ALINK, WHEEL CYLINDER CONNECTING

main47538-35010×4iLN86,YN86..T2;LN80,85,YN80,85198809

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iLN8#,YN8#..T1,T3,TW1199408

main47547-26010×2iLN86,YN86..T2;LN80,85,YN80,85198809

main47547-60020×2iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iLN8#,YN8#..T1,T3,TW1198809-199408

main47550-26100iLN85,86,YN85,86..T2198809

main47550-26110iKZN130,LN13#,VZN130199108-199511

main47550-30140iLN8#,YN8#..T1,T3,TW1199408

main47550-35170iLN10#,YN10#199108-199503

main47550-35190iLN10#,112,YN107199503

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iLN8#,YN8#..T1,T3,TW1198809-199408

main47509-22010×2iLN85,86,YN85,86..T2198809

main47509-30010×2iLN8#,YN8#..T1,T3,TW1199408

main47509-60010×2iKZN130,LN13#,VZN130199108-199511

main90029-60011×2iLN10#,112,YN107199503

main90501-09079×2iLN10#,YN10#199108-199503

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iLN8#,YN8#..T1,T3,TW1198809-199408

main47550-26100iLN85,86,YN85,86..T2198809

main47550-26110iKZN130,LN13#,VZN130199108-199511

main47550-30140iLN8#,YN8#..T1,T3,TW1199408

main47550-35170iLN10#,13#,VZN130,YN10#,130198809-199108

main47550-35190iLN10#,112,YN107199503

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iLN86,YN86..T2;LN80,85,YN80,85198809-199708

main47611-26050iLN8#,YN8#..T1,T3,TW1199408-199708

main47611-35040iLN10#,112,YN10#198809-199708

main47612-35040iKZN130,LN13#,VZN130,YN130198904-199511

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iLN86,YN86..T2;LN80,85,YN80,85198809

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iLN86,YN86..T2;LN80,85,YN80,85198809-199708

main47611-35040iKZN130,LN13#,VZN130,YN130198904-199511

main47612-26050iLN8#,YN8#..T1,T3,TW1199408-199708

main47612-35040iLN10#,112,YN10#198809-199708

47607CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST

main47607-30010×2iLN86,YN86..T2;LN80,85,YN80,85198809

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35011iLN86,YN86..T2;LN80,85,YN80,85198809

main47614-35011iLN86,YN86..T2;LN80,85,YN80,85198809

47642AGUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE

main47642-20010×2iLN86,YN86..T2;LN80,85,YN80,85198809

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20011iLN86,YN86..T2;LN80,85,YN80,85198809-199708

main47643-26010iLN8#,YN8#..T1,T3,TW1199408-199708

main47643-60010iLN10#,112,YN10#198809-199708

main47644-60010iKZN130,LN13#,VZN130,YN130198904-199511

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-20011iLN86,YN86..T2;LN80,85,YN80,85198809-199708

main47643-60010iKZN130,LN13#,VZN130,YN130198904-199511

main47644-26010iLN8#,YN8#..T1,T3,TW1199408-199708

main47644-60010iLN10#,112,YN10#198809-199708

9011908838

main90119-08838

38 parts on this diagram · 4 diagrams in section
