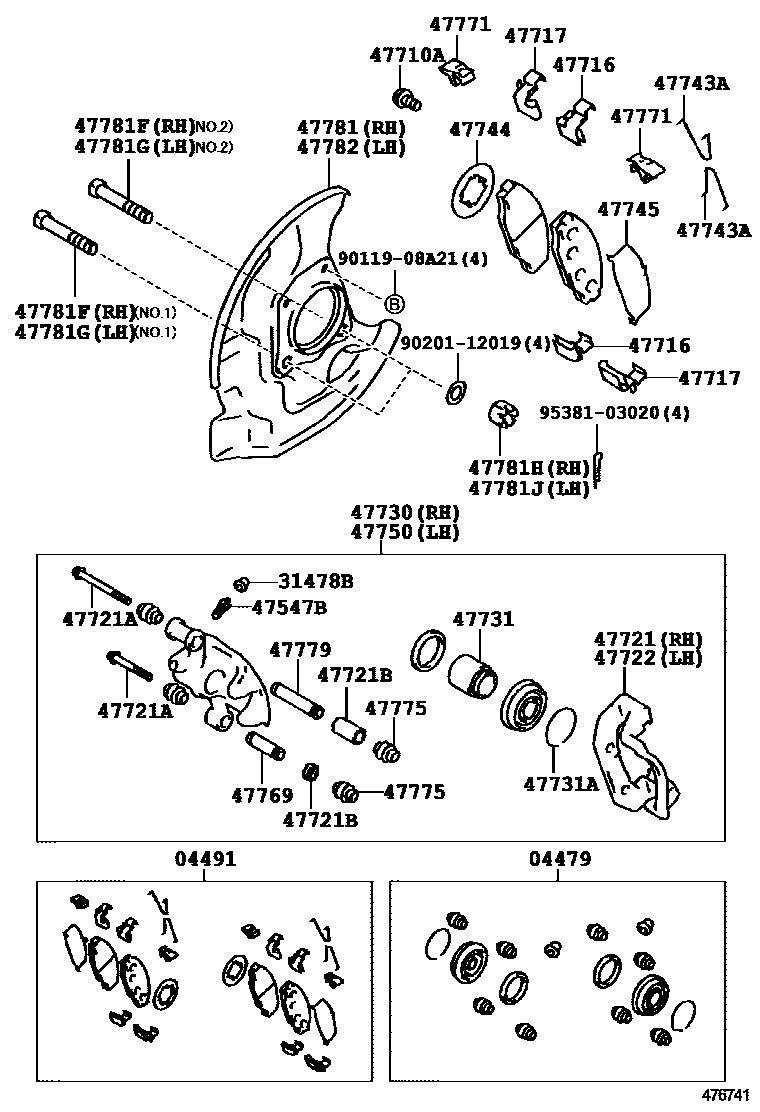

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35010iLN10#,112,YN10#199108-199708

main04479-40010iLN8#,YN8#198809-199708

main04479-60020iKZN130,LN13#,VZN130199108-199511

04491PAD KIT, DISC BRAKE, FRONT

main04491-35160iLN10#,YN10#199208-199505

main04491-35170iLN10#,YN10#199110-199208

main04491-35190iLN13#,VZN130,YN130198904-199108

main04491-35200iLN8#,YN8#198809-199505

main04491-35240iKZN130,LN13#,VZN130199108-199309

main04491-35241iKZN130,VZN130199309-199408

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iKZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#198809-199708

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLN8#,YN8#198809-199708

main47547-20030×2iKZN130,LN10#,112,13#,VZN130,YN10#,130198809-199708

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144×4iKZN130,LN10#,112,13#,VZN130,YN10#,130198809-199708

main90119-12058×4iLN8#,YN8#198809-199708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040×4iLN8#,YN8#199110-199708

main47716-40010×4iLN8#,YN8#198809-199110

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010×4iLN8#,YN8#199110-199708

main47717-40010×4iLN8#,YN8#198809-199110

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLN8#,YN8#198809-199708

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iLN8#,YN8#198809-199708

main90119-10249×2iLN8#,YN8#198809-199708

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLN8#,YN8#198809-199708

main90387-16005×2iLN8#,YN8#198809-199708

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iLN8#,YN8#198809-199708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26080iLN8#,YN8#198809-199708

main47730-35080iLN10#,112,YN10#199108-199708

main47730-35090iKZN130,LN13#,VZN130199108-199511

47731PISTON, FRONT DISC BRAKE

main47731-35010×8iLN10#,112,YN10#199108-199708

main47731-40010×2iLN8#,YN8#198809-199708

main47731-60010×8iKZN130,LN13#,VZN130199108-199511

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044×8iLN10#,112,YN10#199108-199708

main90522-50003×8iKZN130,LN13#,VZN130199108-199511

main90522-70001×2iLN8#,YN8#198809-199708

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020×4iLN8#,YN8#198809-199708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26020×2iLN8#,YN8#198809-199708

main47744-35020×2iKZN130,VZN130199309-199408

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35020×2iKZN130,VZN130199309-199408

main47745-40020×2iLN8#,YN8#198809-199708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26080iLN8#,YN8#198809-199708

main47750-35080iLN10#,112,YN10#199108-199708

main47750-35090iKZN130,LN13#,VZN130199108-199511

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010×2iLN8#,YN8#198809-199708

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-35010×4iLN8#,YN8#198809-199708

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010×8iLN8#,YN8#198809

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLN8#,YN8#198809-199708

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-35080iLN8#,YN8#198809

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90102-12006iLN8#,YN8#198809

main90102-12011iLN8#,YN8#198809

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90102-12006iLN8#,YN8#198809

main90102-12011iLN8#,YN8#198809

47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90171-12006×2iLN8#,YN8#198809

47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90171-12006×2iLN8#,YN8#198809

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-35080iLN8#,YN8#198809

9011908A21

main90119-08A21

9020112019

main90201-12019

9538103020

main95381-03020

31 parts on this diagram · 4 diagrams in section
