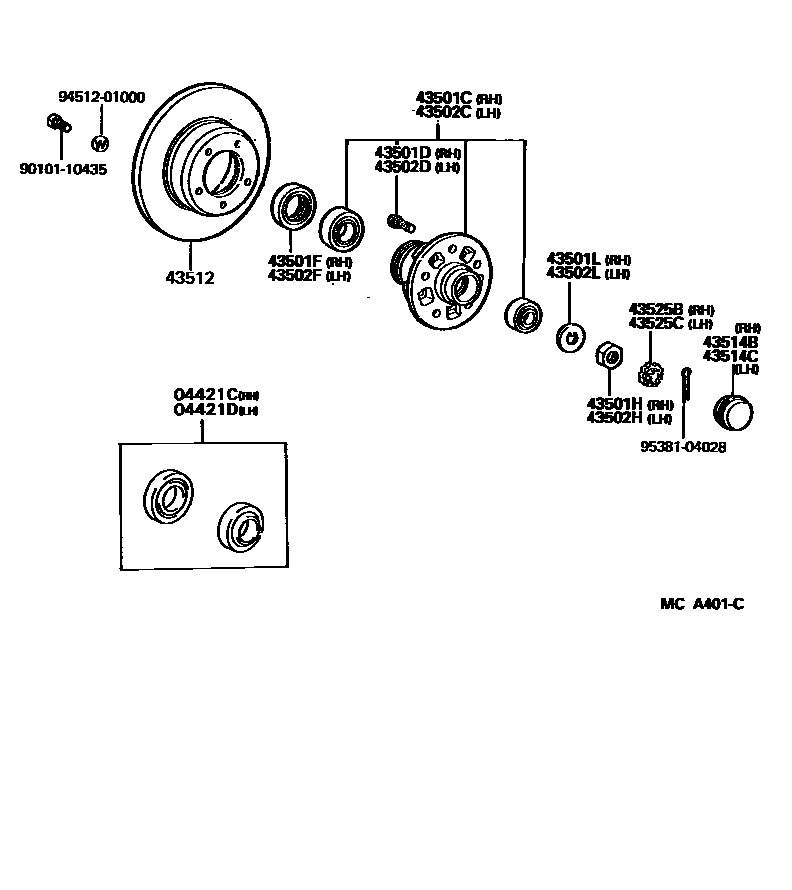

FRONT AXLE HUB

0001 1 0002 1 0003 1

04421CBEARING KIT, FRONT AXLE SHAFT, RH

main04421-35010iLN8#,YN8#198809-199108

main04421-35020iLN8#,YN8#199108

04421DBEARING KIT, FRONT AXLE SHAFT, LH

main04421-35010iLN8#,YN8#198809-199108

main04421-35020iLN8#,YN8#199108

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-39015iLN8#,YN8#198809

main43502-39095iLN100,106,YN100199108

main43502-60020iLN10#,YN10#198809-199108

main43511-35100iLN107,13#,VZN130,YN107199108-199308

main43511-35905iLN13#,VZN130,YN130198904-199108

main43511-39015iKZN130,LN107,108,109,112,VZN130,YN107199308

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×5iLN8#,YN8#198809

main90942-02049×6iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main90942-02053×6iLN100,106,YN100,105198809

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50005iLN8#,YN8#198809

main90311-62001iLN100,106,YN100,105198809

main90311-66001iKZN130,LN107,108,109,112,13#,VZN130,YN107199108-199509

main90311-66003iKZN130,LN107,108,109,112,VZN130,YN107199509

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-19185iLN8#,YN8#198809

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-20007iLN8#,YN8#198809

main90214-42030iKZN130,LN10#,112,13#,VZN130,YN10#199108

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-39015iLN8#,YN8#198809

main43502-39095iLN100,106,YN100199108

main43502-60020iLN10#,YN10#198809-199108

main43511-35100iLN107,13#,VZN130,YN107199108-199308

main43511-35905iLN13#,VZN130,YN130198904-199108

main43511-39015iKZN130,LN107,108,109,112,VZN130,YN107199308

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×5iLN8#,YN8#198809

main90942-02049×6iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904

main90942-02053×6iLN100,106,YN100,105198809

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50005iLN8#,YN8#198809

main90311-62001iLN100,106,YN100,105198809

main90311-66001iKZN130,LN107,108,109,112,13#,VZN130,YN107,130198904-199509

main90311-66003iKZN130,LN107,108,109,112,VZN130,YN107199509

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-19185iLN8#,YN8#198809

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-20007iLN8#,YN8#198809

main90214-42030iKZN130,LN10#,112,13#,VZN130,YN10#,130198809

43512DISC, FRONT

main43512-35170×2iLN100,106,YN100,105198809

main43512-35180×2iLN8#,YN8#198809

main43512-35190×2iLN13#,VZN130,YN130198904-199108

main43512-35200×2iKZN130,LN13#,VZN130199108-199511

43514BCAP, FRONT AXLE HUB GREASE, RH

main43423-35010iLN108,131..SR,SSRX;KZN130,LN107,109,112,130,VZN130,YN107,130..(SSR,SSRX)..(DSL,EFI,TD,TDE)198904

main43514-35010iLN8#,YN8#198809

43514CCAP, FRONT AXLE HUB GREASE, LH

main43423-35010iLN108,131..SR,SSRX;KZN130,LN107,109,112,130,VZN130,YN107,130..(SSR,SSRX)..(DSL,EFI,TD,TDE)198904

main43514-35010iLN8#,YN8#198809

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-22010iLN8#,YN8#198809

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-22010iLN8#,YN8#198809

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

20 parts on this diagram · 3 diagrams in section
