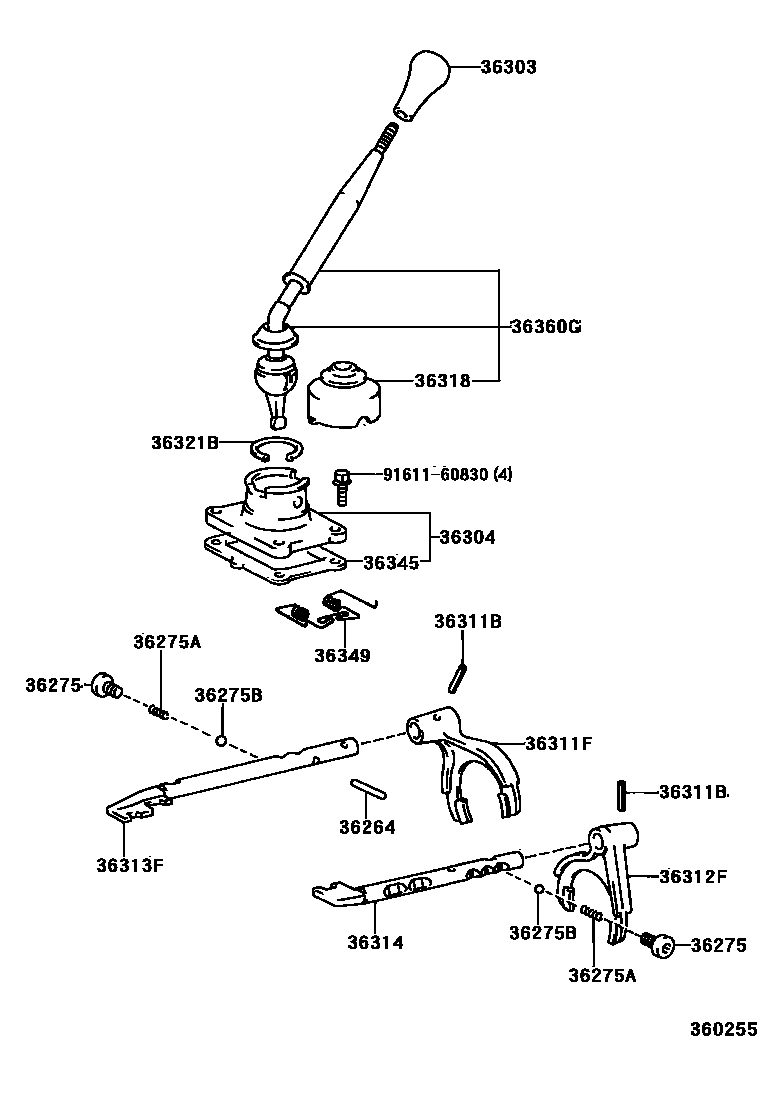

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1 0004 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06005iLN100,106,107,YN10#198809

main90250-10020iLN108..SSR199508

36275PLUG, SHIFT DETENT BALL SPRING

main90341-10064×2iLN100,106,107,YN10#198809

main90341-12014iLN108..SSRX;VZN130,YN130..5F;KZN130,LN109,112,13#198904

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-09107iVZN130..5F;LN13#,YN130199008-199108

LH,INNER

main90501-13001×2iLN100,106,107,YN10#198809

main90501-16116iLN107,YN107..SSR; LN108,109,112..SSRX; LN108..SSR199601

main90501-18091iVZN130..5F;LN13#,YN130199008-199108

LH,OUTER

36275BBALL, SHIFT DETENT

main90360-08009×2iLN100,106,107,YN10#198809

main90360-10003iLN108..SSRX;VZN130,YN130..5F;KZN130,LN109,112,13#198904

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35060-03iLN10#,YN10#..SR198809-199008

GRAY,TRIM1#

main36303-35060-04iLN10#,YN10#..SR198809-199008

BLUE,TRIM8#

main36303-35080-01iLN106..DLX198809-199008

BLACK,TRIM1#,8#

main36303-35090-02iLN130;VZN130,YN130..5F198904-199108

RED,TRIM3#

main36303-35090-03iLN13#;VZN130,YN130..5F198904-199108

GRAY,TRIM1#

main36303-35090-04iVZN130..5F;LN13#,YN130199008-199108

BLUE,TRIM8#

main36303-35090-06iLN130;VZN130,YN130..5F198904-199108

BROWN,TRIM4#

main36303-35100iLN106..DLX199008-199408

main36303-35110-03iLN10#,YN10#..SR,SSR199008-199208

GRAY,TRIM1#

main36303-35110-04iLN10#,YN10#..SR,SSR199008-199202

BLUE,TRIM8#

main36303-35110-R9iLN10#,YN10#..SR,SSR199202-199408

MEDIUM BLUE,TRIM8#

main36303-35110-S4iLN106,107,108,YN107..DLX,SR,SSR199408-199708

MEDIUM GRAY,TRIM1#

main36303-35120-B0iLN107,YN107..SSR..(DSL,EFI); VZN130..5F;LN108..SSRX;KZN130,LN109,112,13#199108-199708

main36303-35120-J0iLN107..SSR199108-199408

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35030iLN10#,YN10#198809-199008

main36304-35031iLN100,106,107,YN10#199008-199605

main36304-35032iLN106,107,YN107199605-199708

main36304-35040iVZN130..5F199008-199511

main36304-35050iYN130..5F;KZN130,LN108,109,112,13#198904-199608

main36304-35051iLN107,YN107..SSR; LN108,109,112199608-199708

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2iLN100,106,107,YN10#198809

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35010iLN100,106,107,YN10#198809

main36311-35020iLN108..SSR199508

main36311-35041iLN107,YN107..SSR..(DSL,EFI)199108

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35020iLN100,106,107,YN10#198809

main36312-35030iLN13#;VZN130,YN130..5F198904-199108

main36312-35040iLN107,YN107..SSR..(DSL,EFI); VZN130..5F;KZN130,LN108,109,112,13#199108

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35020iLN100,106,107,YN10#198809

main36313-35050iLN108..SSR199508-199601

main36313-35080iLN108..SSR199601

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35040iLN100,106,107,YN10#198809

main36314-35090iLN13#;YN130..5F198904-199106

main36314-35091iLN13#,YN130199106-199108

main36314-35100iVZN130..5F199008-199106

main36314-35101iVZN130..5F199106-199108

main36314-35110iKZN130,LN108,109,112,13#; LN107,YN107..SSR..(DSL,EFI)199108

main36314-35120iVZN130..5F199108-199511

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-20060iLN100,106,107,YN10#198809-199605

main33555-35090iLN107,YN107..SSR..(DSL,EFI)199108-199608

main33555-35190iLN107,YN107..SSR; LN108,109,112199608

main33555-35200iLN106,107,YN107199605

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iVZN130,YN130..5F;KZN130,LN10#,112,13#,YN10#198809

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35020iLN10#,YN10#198809-199008

main36345-35021iLN100,106,107,YN10#199008-199708

main36345-35030iVZN130..5F199008-199511

main36345-35040iLN107..SSR199108-199608

36349SPRING, TRANSFER SELECT RETURN

main36349-35020iLN108..SSR199508-199708

main36349-35030iLN10#,YN10#199008-199010

main36349-35031iLN100,106,107,YN10#199010-199708

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35110iLN100,106,107,YN10#198809-199605

main36360-35111iLN106,107,YN107199605

main36360-35120iLN109,13#,VZN130,YN130..5F198904-199608

main36360-35121iLN107,YN107..SSR; LN109199608

main36360-35140iLN130..4FC;LN108,112..SSRX199008-199608

main36360-35141iLN108,112..SSRX199608

main36360-35160iKZN130..5F199308-199511

main36360-35170iKZN130..4FC199308-199511

main36360-35260iLN108..SSR199508-199608

main36360-35261iLN108..SSR199608

9161160830

main91611-60830

17 parts on this diagram · 4 diagrams in section
