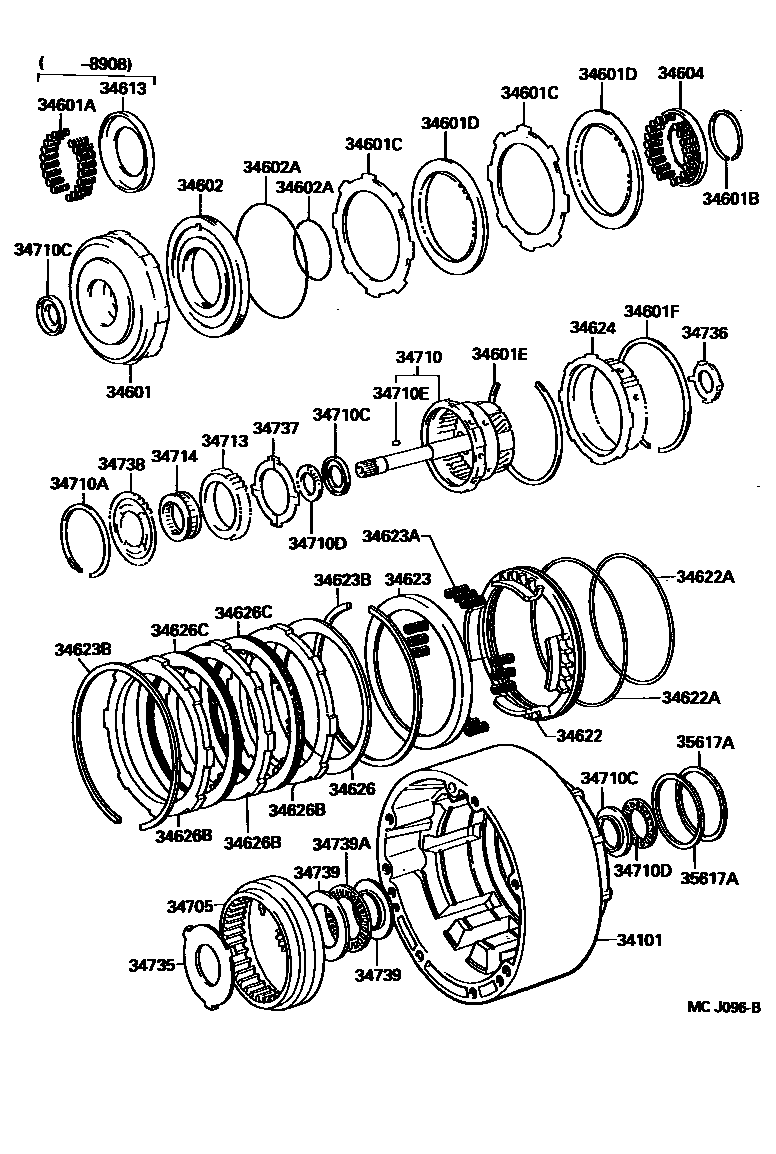

OVERDRIVE GEAR (ATM)

0001 1 0002 1 0003 1A44D

34101CASE SUB-ASSY, OVERDRIVE

main34101-30062iLN85,YN86..4FC198809

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iLN85,YN86..4FC198809-199708

main34601-35010iYN130..4FC198904-199008

main34601-60020iKZN130,LN108,112,130,VZN130..4FC199008-199708

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023×18iLN85..4FC198809-198908

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iLN85,YN86..4FC198809

34601CPLATE, CLUTCH (FOR OVERDRIVE)

main35634-22040×2iLN85..4FC198809-199408

main35634-30070iYN86..4FC199408

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-24010×2iLN85..4FC198809-199408

main35677-30160iYN86..4FC199408

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iLN85,YN86..4FC198809

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iLN85,YN86..4FC198809

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30011iLN85,YN86..4FC198809-199708

main34602-30020iLN108,112,YN130..4FC198904-199708

main34602-50010iKZN130,LN130,VZN130..4FC199008-199511

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iLN85,YN86..4FC198809-199708

main90301-65005iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

main90301-99016iLN85,YN86..4FC198809-199708

main90301-99036iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iLN85,YN86..4FC198908-199708

main34604-30010iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iLN85..4FC198809-198908

34622PISTON, OVERDRIVE BRAKE

main34622-30040iLN85,YN86..4FC198809-199708

main34622-30070iVZN130..4FC199406-199511

main34622-35010iYN130..4FC198904-199008

main34622-35020iVZN130..4FC199008-199406

main34622-60020iKZN130,LN108,112,130..4FC199008-199708

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iLN85,YN86..4FC198809-199708

main90301-99009iLN85,YN86..4FC198809-199708

main90301-99035iYN130..4FC198904-199008

main90301-99037iYN130..4FC198904-199008

main90301-99063iKZN130,LN108,112,130,VZN130..4FC199008-199708

main90301-99064iKZN130,LN108,112,130,VZN130..4FC199008-199708

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iLN85,YN86..4FC198809

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671×12iLN85..4FC198809-199408

main90501-11023×12iYN86..4FC199408

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iLN85,YN86..4FC198809

34624HUB, OVERDRIVE BRAKE

main34624-26010iLN85,YN86..4FC199108

main34624-32010iLN85..4FC198809-199108

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iLN85,YN86..4FC198809

34626BFLANGE, REAR CLUTCH (FOR OVERDRIVE)

main34625-26010×3iLN85..4FC198809-199408

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-30040×2iLN85..4FC198809-199408

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iLN85,YN86..4FC198809

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iYN86..4FC199408-199708

main34710-30022iLN85..4FC198809-199408

main34710-30030iYN130..4FC198904-199008

main34710-60020iKZN130,LN108,112,130,VZN130..4FC199008-199708

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iLN85,YN86..4FC198809

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iLN85,YN86..4FC198809-199708

CTR

main34739-30041iLN85,YN86..4FC198809-199708

main35789-22010iLN85,YN86..4FC198809-199708

main35789-30050iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iLN85,YN86..4FC198809-199708

main90374-24001iLN85,YN86..4FC198809-199708

main90374-25005iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

main90374-28008iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4iLN85,YN86..4FC198809

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iLN85,YN86..4FC198809-199708

main34713-32010iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30030iLN85,YN86..4FC198809-199708

main35791-30040iYN130..4FC198904-198907

main35791-50010iKZN130,LN108,112,130,VZN130,YN130..4FC198907-199708

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iLN85,YN86..4FC198809

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iLN85,YN86..4FC198809

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iLN85,YN86..4FC198809-199708

main34737-30030iYN130..4FC198904-199008

main34737-50010iKZN130,LN108,112,130,VZN130..4FC199008-199708

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30020iLN85,YN86..4FC198809

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iLN85,YN86..4FC198809

main35789-22030iLN85,YN86..4FC198809

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iLN85,YN86..4FC198809

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iLN85,YN86..4FC198809-199708

main35617-30020×2iKZN130,LN108,112,130,VZN130,YN130..4FC198904-199708

36 parts on this diagram · 3 diagrams in section
