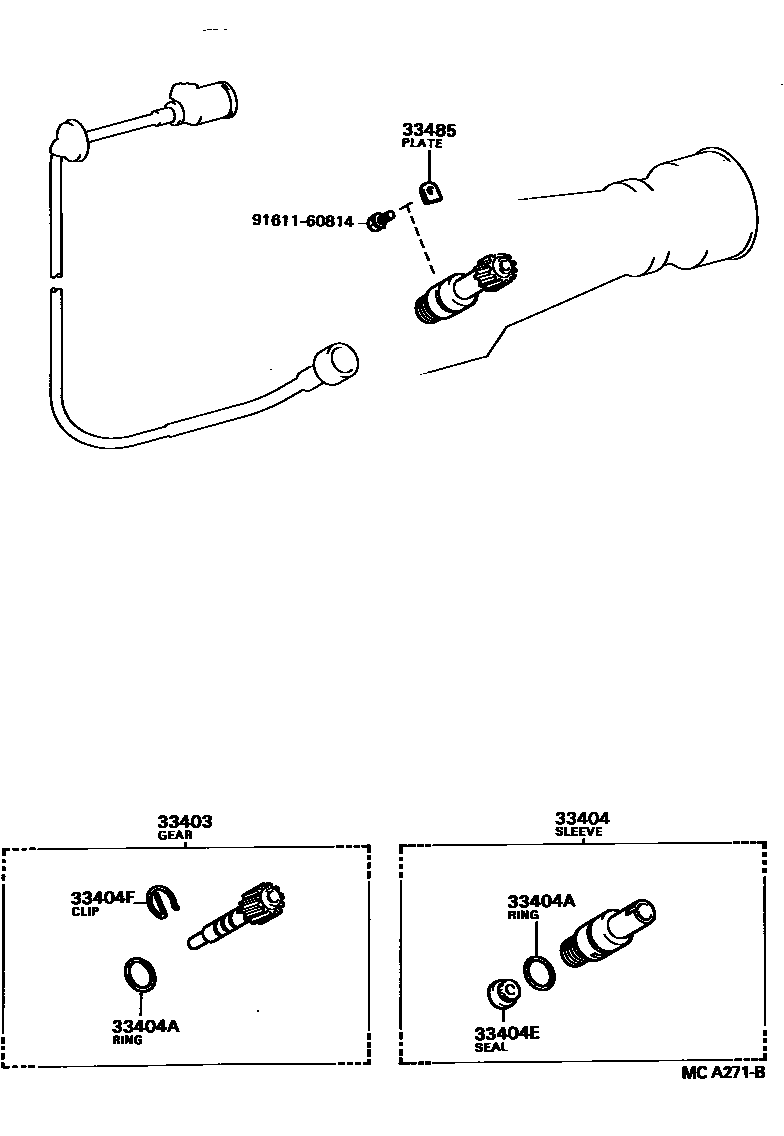

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0003 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29115iLN107..SSR199408

main33403-29125iYN107199408

main33403-29135iLN130,YN130..5F..(EFI,TDE)198904-199108

main33403-29145iLN109,VZN130..5F199408

main33403-29325iLN130..5F199108-199308

main33403-39295iLN10#,8#..(T1,TW1)..MTM199108-199408

main33403-39305iLN8#,YN10#..MTM199108-199408

main33403-39315iYN8#..T1,TW1199108-199408

main33403-39325iYN8#199108-199408

main33403-39345iKZN130..5F..SSRX199308-199511

main33403-39355iLN131,VZN130..5F199108-199408

main33403-39415iLN107..SSR199108-199408

main33403-39425iKZN130..5F199308-199511

main33482-39025iYN107199408

main33482-39035iYN8#..DLX,SDX198809-199008

main33482-39045iYN8#..5H199408

main33482-39135iLN106,107,8#199408

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLN107,YN107..SSR; LN109,VZN130..5F199408

main33404-35010iLN10#,8#,YN10#,8#..MTM198809-199108

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLN106,107,8#,YN107,8#..MTM199408

main96711-24030iLN13#,VZN130,YN130..5F198904-199108

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLN10#,13#,8#,VZN130,YN10#,130,8#..MTM198809-199108

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKZN130,LN100,106,107,109,13#,8#,VZN130,YN10#,130,8#..MTM198809

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLN10#,13#,8#,VZN130,YN10#,130,8#..MTM198809-199108

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
