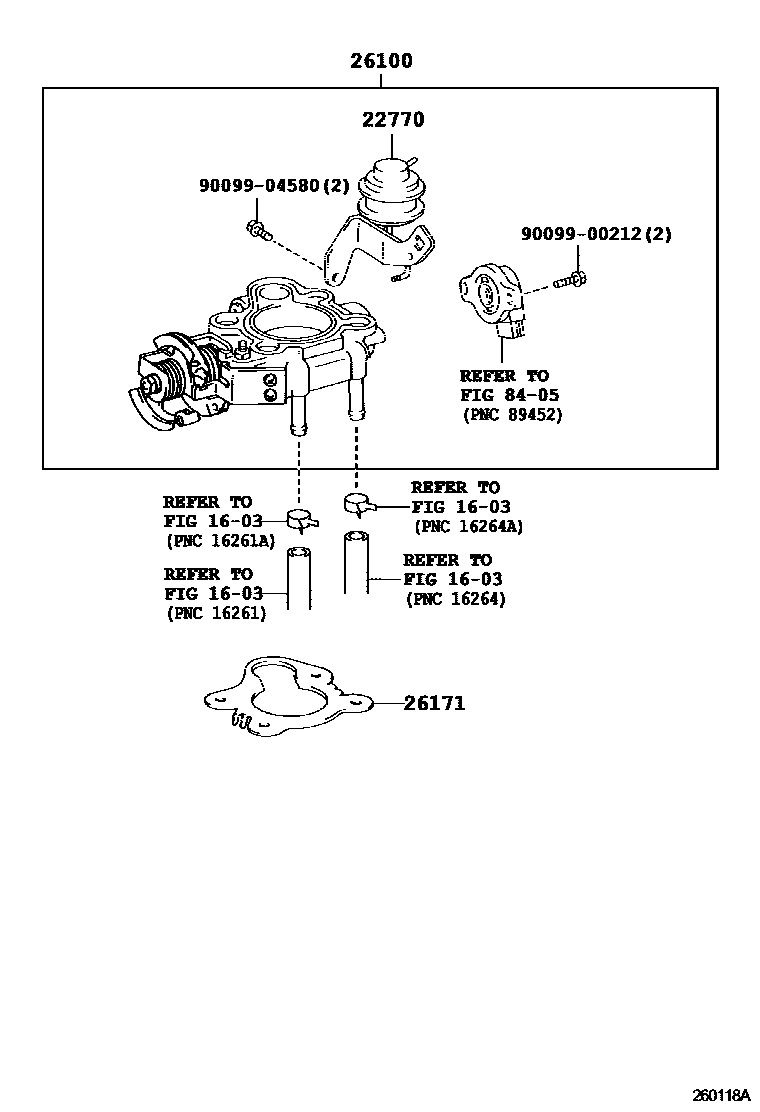

VENTURI

0001 1 0002 1 0003 1 0005 1 0006 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22770ACTUATOR, IDEL UP

main26133-54110i2LTE..LN130199008-199308

main26133-54150i3L..LN131198908-199308

main26133-54220i2LTE..LN108,112199508

main26133-67010i1KZTE..KZN130199308-199511

26100VENTURI ASSY

main26100-54140i2LT..LN130198904-199008

main26100-54150i3L..LN131198904-199308

main26100-54200i2LTE..LN130199008-199210

main26100-54201i2LTE..LN130199210-199308

main26100-54220i2LTE..LN108,112199508-199708

main26100-67010i1KZTE..KZN130199308-199501

main26100-67020i1KZTE..KZN130..4FC..SSRX199308-199501

main26100-67040i1KZTE..KZN130199501-199511

main26100-67050i1KZTE..KZN130..4FC..SSRX199501-199511

26171GASKET, VENTURI

main17116-54021i2LT#,3L..LN108,112,13#198904

main26171-67010i1KZTE..KZN130199308-199511

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009900212

main90099-00212

9009904580

main90099-04580

7 parts on this diagram · 5 diagrams in section
