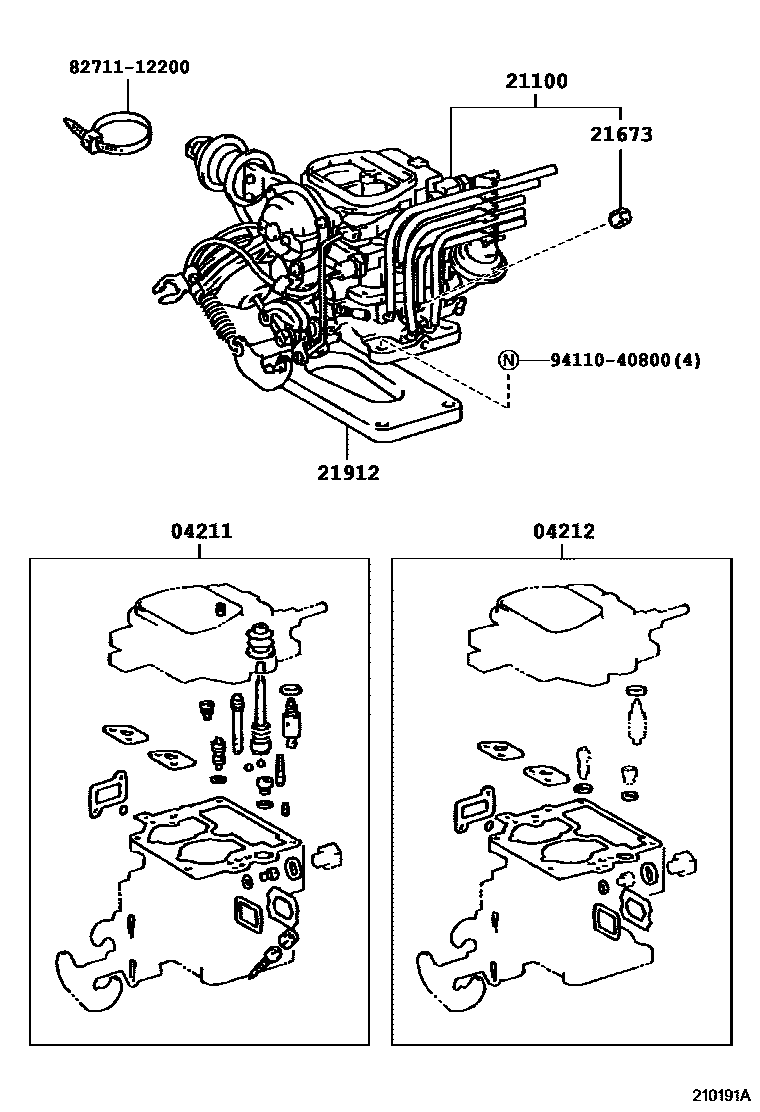

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-72170i2Y,3Y..YN10#,8#198809-199408

04212GASKET KIT, CARBURETOR

main04212-73071i2Y,3Y..YN10#,8#198809-199408

21100CARBURETOR ASSY

main21100-72250i2Y,3Y..YN10#,8#198809-199408

21673CAP, IDLE LIMIT

main21673-71030i2Y,3Y..YN10#,8#198809-199408

21912INSULATOR, CARBURETOR HEAT

main21912-71020i2Y,3Y..YN10#,8#198809-198912

main21912-71021i2Y,3Y..YN10#,8#198912-199408

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section
