DISTRIBUTOR

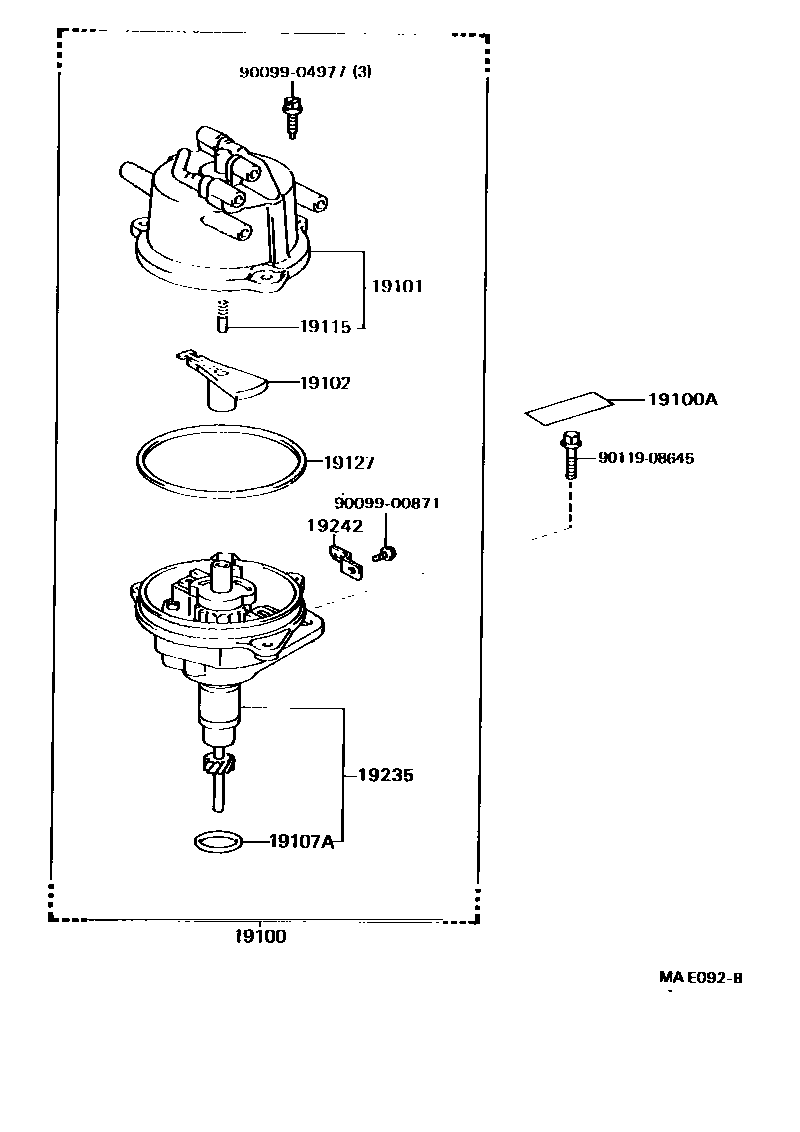

Parts diagram

19100DISTRIBUTOR ASSY

main19030-71060i198809-199108

main19030-73060i198809-199108

main19030-73130i199108-199408

main19040-73030i198904-199108

main19040-73070i199408

main19100-65010i199008-199108

main19100-65020i199108-199511

19100ATAPE, SEALING

main90919-24004i198809-199312

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-65010i199008-199108

main19101-65040i199108-199511

main19101-71010i198809

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16040i198809-199108

main19102-16060i199108

main19102-61240i199008-199108

main19102-70160i199108-199511

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i198809-199103

main90099-14090i199103

main90099-14091i199103-199511

main96711-35030i199008-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i199008-199108

main19115-63010×2i198809

main19115-88280i199108-199511

19127PACKING, DUST PROOF

main19127-61240i199108-199511

main19127-63010i198809

main19127-63020i198809

main19127-65010i199008-199108

19235HOUSING, DISTRIBUTOR

main19235-65010i199008-199108

main19235-65020i199108-199511

main19235-71010i199002-199108

main19235-72011i199108-199408

main19235-73030i198904-199108

main19235-73100i199408

19242CLAMP, CORD

main19242-65010i199008-199108

main19242-65020i199108-199511

main19242-71010i198809-199309

main19242-71060i198809-198912

main19242-71061i198912-199309

main19242-73030i198904

9009900871

main90099-00871

9009904977

main90099-04977

9011908645

main90119-08645

12 parts on this diagram · 5 diagrams in section
