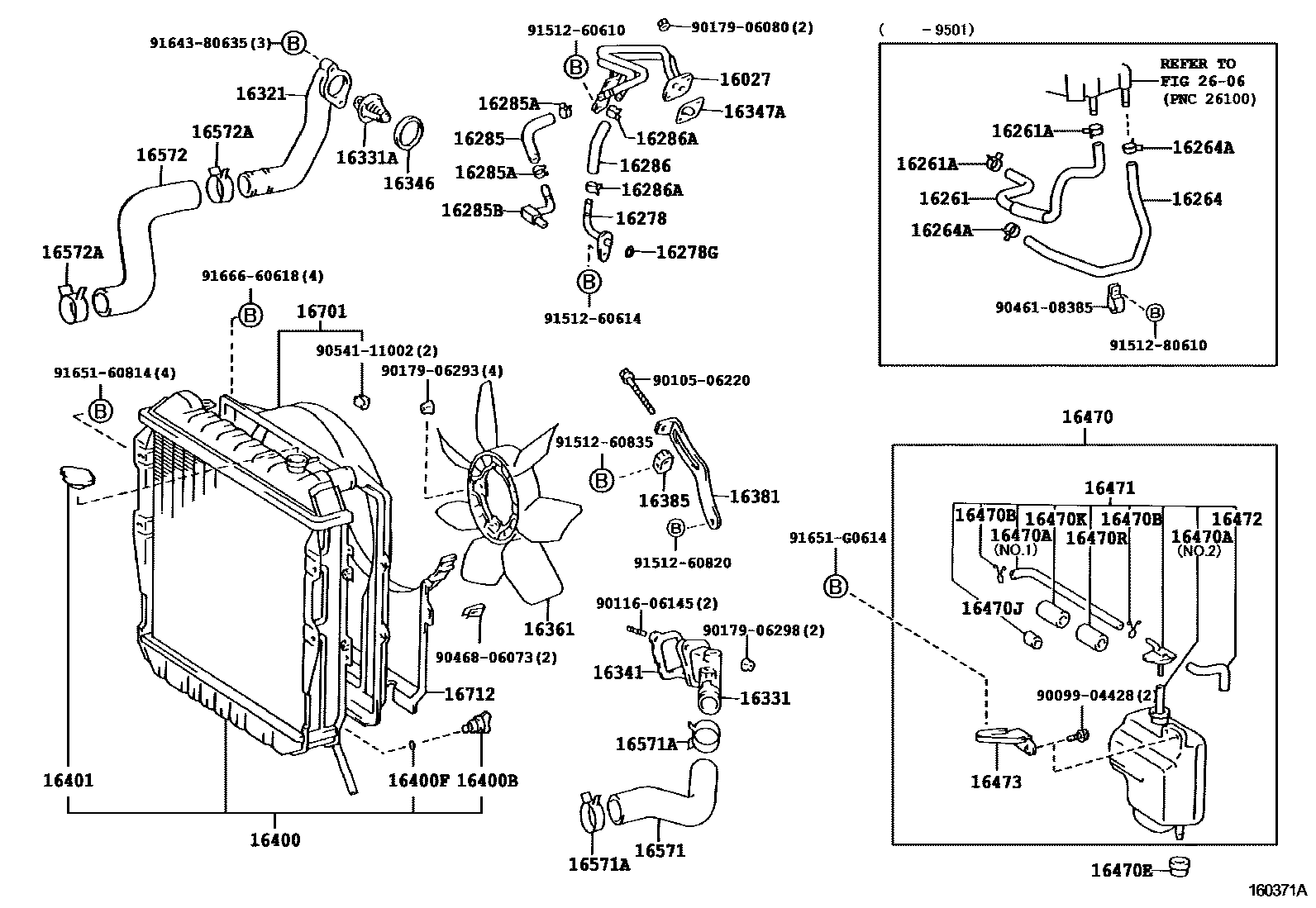

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

16027PIPE SUB-ASSY, TURBO WATER, NO.1

main16027-67010i1KZTE..KZN130199308-199511

sub16027-67011

sub16284-67020

16261HOSE, WATER BY-PASS

main16261-54080i2L,3L..LN100,106,107,109,131,8#198809-199009

main16261-54110i2LTE..LN130199009-199308

main16261-65011i3VZE..VZN130199008-199108

main16261-67050i1KZTE..KZN130199308-199501

main99556-10110i3YE..YN107,130,81,86198904

sub99556-10185

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i3YE..YN107,130,81,86198904

sub96135-51300

main90467-15004i2L#,3L..LN10#,13#,8#198809-198909

main90467-15022i2LT#,2L,3L..LN100,106,107,109,13#,8#198909-199501

main90467-23003i3VZE..VZN130199008-199108

sub96134-42300

16264HOSE, WATER BY-PASS, NO.2

main16264-54070i2L,3L..LN100,106,107,109,131,8#198809-199708

main16264-54130i2LTE..LN130199009-199308

main16264-67010i1KZTE..KZN130199308-199501

main16264-73021i3YE..YN107,130,81,86198904

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i3YE..YN107,130,81,86198904

sub96135-51300

main90467-15004i2L#,3L..LN10#,13#,8#198809-198909

main90467-15022i1KZTE..KZN130198909-199501

16278PIPE, WATER BY-PASS, NO.2

main16278-67010i1KZTE..KZN130199308-199511

main16278-73011i3YE..YN107,130,81,86198904

16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)

main96761-24010i1KZTE..KZN130199308-199511

16285HOSE, TURBO WATER, NO.2

main16285-67010i1KZTE..KZN130199308-199511

16285ACLIP(FOR TURBO WATER HOSE NO.2)

main90467-15022i1KZTE..KZN130199308-199511

16285BUNION(FOR TURBO WATER HOSE NO.2)

main90405-10044i1KZTE..KZN130199308-199511

16286HOSE, TURBO WATER, NO.3

main16285-67010i1KZTE..KZN130199308-199511

main16286-54020i2LT#..LN108,112,130198904

16286ACLIP(FOR TURBO WATER HOSE NO.3)

main90467-15004i2LT..LN130198904-198909

main90467-15022i2LT#..LN108,112,130198909-199511

16321INLET, WATER

main16321-65010i3VZE..VZN130199008-199207

sub16321-65030

main16321-65030i3VZE..VZN130199207-199511

main16321-67010i1KZTE..KZN130199308-199508

sub16321-67011

main16321-67011i1KZTE..KZN130199508-199511

sub16321-0K010

main16321-71010i2Y,3Y#..YN10#,130,8#198809

16331OUTLET, WATER

main16331-54090i2L,3L..LN100,106,107,109,131,8#198809

main16331-54100i2LT#..LN130198904-199108

sub16331-54101

main16331-54101i2LTE..LN130199108-199308

main16331-54180i2LTE..LN108,112199508

main16331-65011i3VZE..VZN130199008-199108

main16331-65020i3VZE..VZN130199108-199511

main16331-67020i1KZTE..KZN130199308-199511

main16331-71010i2Y,3Y..YN10#,8#198809-199408

main16331-73010i3YE..YN107,130,81,86198904-199512

main16331-73011i3YE..YN107,8#199512

16331ATHERMOSTAT

main16340-54010i2LTE,3L..LN10#,112,8#199605

main16340-54010i2LTE,3L..LN10#,112,8#199505-199605

main90916-03046i2Y,3Y#..YN10#,8#199201

main90916-03069i2Y,3Y#..YN10#,130,8#198809-199201

sub90916-03046

main90916-03072i2L#,3L..LN10#,13#,8#199108-199303

sub90916-03099

main90916-03079i3VZE..VZN130199008-199511

main90916-03097i1KZTE..KZN130199308-199511

sub90916-03118

main90916-03099i2L#,3L..LN10#,13#,8#198809-199505

16341GASKET, WATER OUTLET

main16341-35010i2LTE..LN108,112198904-199608

main16341-54030i2L,3L..LN10#,131,8#198809-199110

sub16341-54040

main16341-54040i2L,3L..LN10#,131,8#199110-199505

main16341-65010i3VZE..VZN130199008-199511

sub16341-35010

main16341-67020i1KZTE..KZN130199308-199511

main16341-71010i2Y,3Y#..YN10#,130,8#198809-198912

sub16341-71011

main16341-71011i2Y,3Y#..YN10#,130,8#198912-199706

main16341-73010i3YE..YN107,8#199707

16346GASKET, THERMOSTAT

main16346-67010i1KZTE..KZN130199308-199511

sub16346-30010

16347AGASKET(FOR TURBO WATER PIPE)

main16347-28010i2LT..LN130198904-198907

sub16347-42020

main16347-42020i2LT#..LN108,112,130198909

main16347-58010i2LT..LN130198907-198909

main16347-67010i1KZTE..KZN130199308-199511

16361FAN

main16361-38010i2Y,3Y#..YN10#,130,8#198809

main16361-54020i2L..LN8#..5H198809-199408

main16361-54040i2L,3L..LN10#,85..4FC,5F198809-198904

main16361-54070i2LT#,2L,3L..LN108,112,13#,85..4FC,5F198904

main16361-65010i3VZE..VZN130199008-199308

main16361-65020i3VZE..VZN130199308-199511

main16361-67020i1KZTE..KZN130199308-199511

16381BAR, FAN BELT ADJUSTING

main16381-54060i2L#,3L..LN10#,13#,8#198809-199008

sub16381-54061

main16381-54120i2LTE,3L..LN108,112,13#199008

sub16381-54121

main16381-65010i3VZE..VZN130199008-199511

main16381-67020i1KZTE..KZN130199308-199511

main16381-71010i2Y,3Y..YN10#,8#198809-199408

main16381-73011i3YE..YN107,130,81,86198904

16385SLIDER, FAN BELT ADJUSTING

main16385-67010i1KZTE..KZN130199308-199511

main16385-71010i3YE..YN107,130,81,86198904

16400RADIATOR ASSY

main16400-54610i2L..LN8#..5H198809-199408

sub16400-5B470

main16400-54620i2L..LN85..4FC198809-199208

main16400-54640i3L..LN100,106,107,109,131198809-199604

sub16400-5B510

main16400-54730i2LT..LN130198904-199003

sub16400-54731

main16400-54731i2LT#..LN130..5F199003-199308

sub16400-54732

main16400-5B010i3L..LN8#199408-199604

sub16400-5B480

main16400-5B010i2L..LN8#..5H199008-199408

sub16400-5B480

main16400-5B020i2L..LN85..4FC199008-199208

sub16400-5B490

main16400-5B020i2L..LN85..4FC199208-199408

sub16400-5B490

main16400-5B040i2LTE..LN130..4FC199008-199308

sub16400-5B041

main16400-5B370i2LTE..LN108,112199508

main16400-5B480i3L..LN8#199604

sub16400-5B490

main16400-5B510i3L..LN106,107,109199604

main16400-65041i3VZE..VZN130..5F199008-199108

sub16400-65070

main16400-65061i3VZE..VZN130..4FC199008-199108

sub16400-65070

main16400-65100i3VZE..VZN130..5F199108-199511

sub16400-65120

main16400-65120i3VZE..VZN130..4FC199108-199511

main16400-67060i1KZTE..KZN130..5F199308-199412

sub16400-67080

main16400-67070i1KZTE..KZN130..4FC199308-199412

sub16400-67071

main16400-67071i1KZTE..KZN130..4FC199412-199511

main16400-67080i1KZTE..KZN130..5F199412-199511

sub16400-67071

main16400-71071i2Y,3YE..YN8#..5H198809

sub16400-35360

main16400-71081i3Y#..YN10#198809

main16400-73200i3YE..YN130..5F198904-199108

sub16400-35350

main16400-73380i3YE..YN130..4FC198904-199008

main16400-73430i3YE..YN86..4FC199408

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i2L,3L..LN10#,131,8#198809-199511

main90910-09099i2L..LN8#199008-199408

main90910-09099i3L..LN81,86;2L..LN85..4FC199208

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96711-19007i2LT#,2L,3L..LN10#,112,13#,8#198809-199511

16401CAP SUB-ASSY, RADIATOR

main16401-63010i3VZE..VZN130198809-199511

16470TANK ASSY, RADIATOR RESERVE

main16470-35100i2Y,3Y#..YN10#,8#199108

main16470-54120i2L,3L..LN10#,131,8#198809-199108

main16470-54180i2LT..LN130198904-199001

sub16470-54200

main16470-54200i2LT#..LN130199001-199108

main16470-54240i2LTE..LN130199108-199511

main16470-54250i3L..LN131199108-199308

main16470-54310i2LTE..LN108,112199508

main16470-65010i3VZE..VZN130199008-199108

main16470-65020i3VZE..VZN130199108-199511

main16470-72030i2Y,3Y#..YN10#,130,8#198809-199108

sub16470-35100

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-70070i3VZE..VZN130199008-199511

main90099-04428i1KZTE..KZN130199308-199409

main90445-12043i1KZTE..KZN130199308-199511

sub90445-12078

main90445-12043i2LT#..LN130198904-199308

sub90445-12078

main90445-12078i2L,3L..LN100,106,107,109,8#199302

main90445-12078i2L,3L..LN10#,131,8#198809-199308

main90445-12078i2L,3L..LN10#,131,8#198809-199511

main90445-12078i3VZE..VZN130199008-199511

main90445-12078i1KZTE..KZN130199308-199511

main90445-12078i2Y,3Y#..YN10#,130,8#198809

main90445-12078i2LTE..LN108,112199508

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3VZE..VZN130198809-199511

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-25025i1KZTE..KZN130198809-199511

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main16474-54240i1KZTE..KZN130199308-199511

16470KHOSE, NO.4(FOR RADIATOR RESERVE TANK)

main88714-89105i1KZTE..KZN130199308-199511

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16483-55020i2LTE..LN130199108-199511

16471CAP SUB-ASSY, RESERVE TANK

main16405-35040i3VZE..VZN130199008-199511

main16405-54180i2L,3L..LN100,106,107,109,131,8#198809

main16405-54190i2LT#..LN130198904-199511

main16405-54280i2LTE..LN108,112199508

main16405-71010i2Y,3Y#..YN10#,130,8#198809

16472HOSE, BREATHER

main85338-71030i2Y,3Y#..YN10#,130,8#198809-199511

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-35100i2Y,3Y#..YN10#,8#199108

main16473-35110i3VZE..VZN130199108-199511

main16473-54240i1KZTE..KZN130199108-199511

16571HOSE, RADIATOR, INLET

main16571-54270i2L,3L..LN100,106,107,109,131,8#198809

main16571-54310i2LT#..LN130198904-199308

main16571-54440i2LTE..LN108,112199508

main16571-65011i3VZE..VZN130199008-199511

main16571-67050i1KZTE..KZN130199308-199511

main16571-71030i2Y,3Y#..YN10#,130,8#198809

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37003i2Y,3Y#..YN10#,8#198809-199511

main90467-41003i1KZTE..KZN130199308-199308

main90467-41006i1KZTE..KZN130199309-199511

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-54250i2L..LN8#198809-199408

main16572-54270i2LT#,3L..LN10#,112,13#198809

main16572-54390i3L..LN81,86;2L..LN85..4FC199208

main16572-54390i2L..LN8#199008-199408

main16572-65010i3VZE..VZN130199008-199511

main16572-67050i1KZTE..KZN130199308-199511

main16572-71031i2Y,3Y#..YN10#,130,8#198809

main16573-54080i3L..LN10#198809-198904

sub16573-54081

main16573-54081i2LT#,3L..LN10#,112,13#198904

main16573-54100i2L..LN8#199008-199408

main16573-54100i3L..LN81,86;2L..LN85..4FC199208

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002i2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD198809-199705

sub90467-37005

main90467-37002i2LT#,2L,3L..LN10#,112,13#,8#198809-199705

sub90467-37005

main90467-37003i2Y,3Y#..YN10#,8#198809-199108

main90467-37005i2LTE,3L..LN10#,112,8#199705

main90467-37005i3YE..YN107,8#199705

main90467-38001i3VZE..VZN130199008-199511

sub90466-38001

main90467-41001i2LT#,2L,3L..LN10#,112,13#,8#198809

main90467-41006i1KZTE..KZN130199308-199511

sub90467-41002

16701SHROUD SUB-ASSY, FAN

main16701-67030i1KZTE..KZN130199308-199511

main16711-54260i2L..LN8#..5H198809-199008

main16711-54270i2L..LN85..4FC198809-199008

main16711-54290i2LT#,3L..LN100,106,107,109,13#198809

main16711-54410i2L..LN8#..5H199008-199408

main16711-54420i3L..LN81,86;2L..LN85..4FC199008

main16711-54460i2LTE..LN108,112199508

main16711-65031i3VZE..VZN130199008-199511

main16711-71030i2Y,3Y#..YN10#,130,8#198809

16712SHROUD, FAN, NO.2

main16712-54050i2Y,3Y#..YN10#,130,8#198809

main16712-54180i2L..LN8#..5H198809-199008

main16712-54190i2L..LN85..4FC198809-199008

main16712-54200i2LT#,3L..LN100,106,107,109,13#198809-199708

main16712-54280i2L..LN8#..5H199008-199408

main16712-54290i3L..LN81,86;2L..LN85..4FC199008-199708

main16712-54310i2LTE..LN108,112199508-199708

main16712-65010i3VZE..VZN130199008-199511

main16712-67020i1KZTE..KZN130199308-199511

2606

9009904428

main90099-04428

9010506220

main90105-06220

9011606145

main90116-06145

9017906080

main90179-06080

9017906293

main90179-06293

9017906298

main90179-06298

9046108385

main90461-08385

9046806073

main90468-06073

9054111002

main90541-11002

9151260610

main91512-60610

9151260614

main91512-60614

9151260820

main91512-60820

9151260835

main91512-60835

9151280610

main91512-80610

9164380635

main91643-80635

9165160814

main91651-60814

91651G0614

main91651-G0614

9166660618

main91666-60618

60 parts on this diagram · 9 diagrams in section
