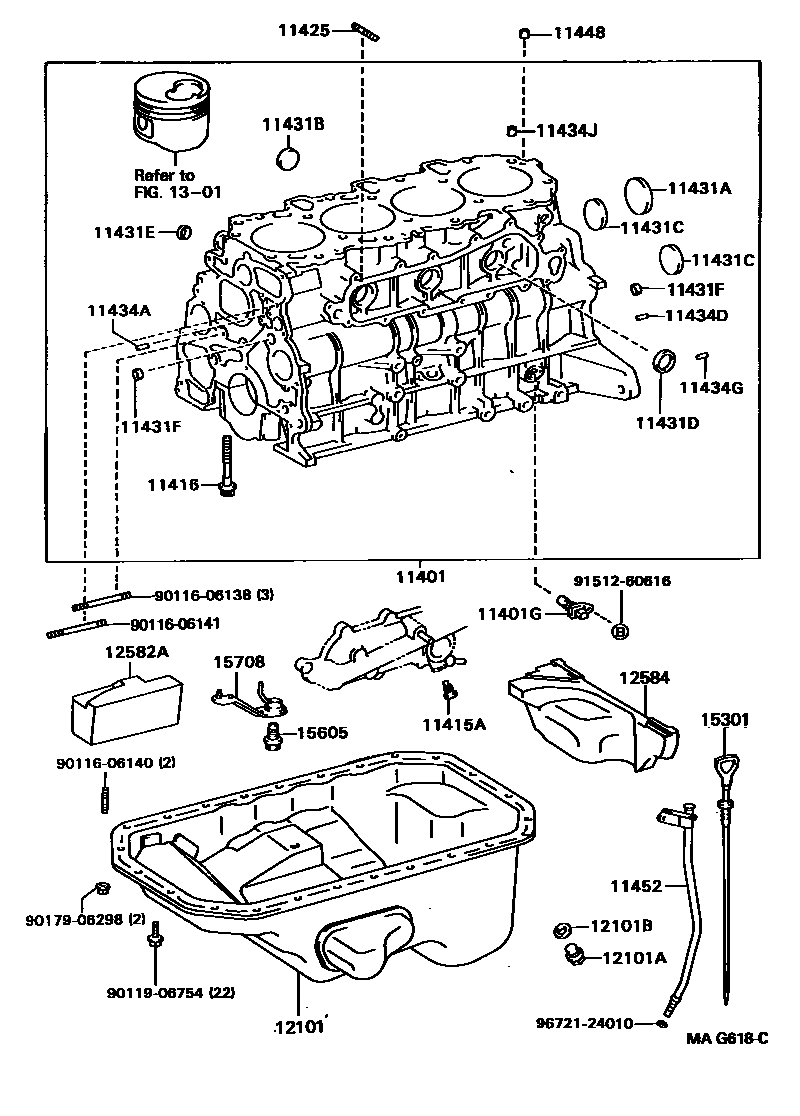

CYLINDER BLOCK

0001 1 0002 1 0005 1 0007 1 0008 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59345i2L..LN8#198809-199108

sub11401-59347

main11401-59347i2L..LN8#199108-199408

main11401-59355i2LT..LN130198904-199008

sub11401-59357

main11401-59365i3L..LN10#,131198809-199102

sub11401-59505

main11401-59495i2LTE..LN130199008-199108

sub11401-59497

main11401-59497i2LTE..LN108,112,130199108

main11401-59505i3L..LN100,106,107,109,131,81,86199102

main11401-69336i3VZE..VZN130199008-199108

sub11401-69525

main11401-69525i3VZE..VZN130199108-199511

main11401-69545i1KZTE..KZN130199308-199503

sub11401-69546

sub13572-67041

sub13581-67041

sub90105-10398

main11401-69546i1KZTE..KZN130199503-199511

sub11401-69547

main11401-79066i2Y..YN8#198809-199408

main11401-79086i3Y#..YN10#,130198809-198908

sub11401-79088

main11401-79088i3Y#..YN10#,130198908-199308

sub11401-79735

main11401-79735i3Y#..YN10#,81,86199308-199512

sub11401-79736

main11401-79736i3YE..YN107,8#199512

11401GSENSOR, CRANK POSITION

main90919-05005i1KZTE..KZN130199308-199511

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-53030i2L,3L..LN100,106,107,109,8#199402

main96431-53828i2L#,3L..LN10#,13#,8#198809-199402

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-53030i2L#,3L..LN10#,13#,8#198907-199008

main90910-09087i1KZTE..KZN130199308-199511

main96431-23814i3VZE..VZN130199008-199511

main96432-23814i2L#,3L..LN10#,13#,8#198809-199402

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02032i2Y,3Y#..YN10#,130,8#198809

main90910-02061i2LT#,2L,3L..LN10#,112,13#,8#198809

main90910-02072i3VZE..VZN130199008-199511

sub90910-02176

main90910-02113i1KZTE..KZN130199308-199511

11425BOLT, STUD(FOR OIL FILTER)

main90116-06141i1KZTE..KZN130199308-199511

sub90116-06171

main90116-08157i2LT#,2L,3L..LN10#,112,13#,8#198809-199511

main92112-60825i2LTE,3L..LN10#,112,8#199511-199705

main92112-80825i2LTE,3L..LN10#,112,8#199705-199708

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-35005i3VZE..VZN130199406-199511

main96411-01800i2Y,3Y#..YN10#,130,8#198809

main96411-42500i2LT#,2L,3L..LN10#,112,13#,8#198809

main96411-43500i3VZE..VZN130199008-199406

main96411-64500i1KZTE..KZN130199308-199511

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2LT#,2L,3L..LN10#,112,13#,8#198809

main96411-63500i1KZTE..KZN130199308-199511

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-44000i1KZTE..KZN130199308-199511

main96411-45000i2Y,3Y#..YN10#,130,8#198809

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35002i1KZTE..KZN130199308-199310

main90331-35004i1KZTE..KZN130199310-199511

main96411-45000i2Y,3Y#..YN10#,130,8#198809

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-62000i1KZTE..KZN130199308-199511

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main96411-41800i1KZTE..KZN130199308-199411

main96411-61800i1KZTE..KZN130199411-199511

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i2Y,3Y#..YN10#,130,8#198809-199511

main90253-11001i2LT#,2L,3L..LN10#,13#,8#198809-199012

main90253-11021i2L#,3L..LN10#,112,13#,8#199012

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3VZE..VZN130199008-199208

main90250-06015i3VZE..VZN130199208-199511

main90250-06068i1KZTE..KZN130199308-199511

main90253-11001i2LT#,2L,3L..LN10#,13#,8#198809-199012

main90253-11021i2L#,3L..LN10#,112,13#,8#199012

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2LTE,3L..LN10#,112,8#199502

main90250-10192i1KZTE..KZN130198809-199511

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15016i1KZTE..KZN130198809-199511

main90253-16001i3VZE..VZN130199008-199511

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

main11448-67010i1KZTE..KZN130199308-199511

11452GUIDE, OIL LEVEL GAGE

main11452-40010i2Y,3Y..YN10#,8#198809-199408

main11452-54080i2LTE,2L,3L..LN10#,112,13#,8#198809

main11452-54110i2LT..LN130198904-199008

main11452-65011i3VZE..VZN130199008-199511

main11452-67020i1KZTE..KZN130199308-199511

main11452-71020i3YE..YN107,130,81,86198904

12101PAN SUB-ASSY, OIL

main12101-54110i2L..LN8#198809-199005

sub12101-54112

sub90341-12012

sub90430-12027

main12101-54112i2L,3L..LN8#199005-199708

sub12101-54113

main12101-54130i2LT,3L..LN10#,13#198809-199005

sub12101-54132

sub90341-12012

sub90430-12027

main12101-54132i2LT,3L..LN100,106,107,109,13#199005-199708

sub12101-54133

sub12129-54010

sub91651-60614

main12101-54202i2LTE..LN108,112,130199008-199708

sub12101-54310

main12101-65010i3VZE..VZN130199008-199105

sub12101-65011

main12101-65011i3VZE..VZN130199105-199511

sub12101-65012

main12101-67070i1KZTE..KZN130199308-199511

main12101-71021i2Y,3YE..YN8#198809

main12101-73012i3Y#..YN10#,130198809

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3VZE..VZN130198809-199511

main90341-18089i2L#,3L..LN10#,13#,8#198809-199005

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD198809-199010

sub90430-12028

main90430-12020i3VZE..VZN130199008-199106

sub90430-12028

main90430-12027i2Y,3Y#..YN10#,130,8#199005-199312

sub90430-12031

main90430-12031i1KZTE..KZN130199309-199511

main90430-18013i2L#,3L..LN10#,13#,8#198809-198909

sub90430-18023

main90430-18026i2L#,3L..LN10#,13#,8#198909-199005

12582AINSULATOR, CYLINDER BLOCK, NO.2

main12582-67010i1KZTE..KZN130199308-199511

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-67020i1KZTE..KZN130199308-199511

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-54070i2LT#,2L,3L..LN10#,112,13#,8#198809

main15301-65010i3VZE..VZN130199008-199511

main15301-67020i1KZTE..KZN130199308-199511

main15301-71020i3YE..YN107,130,81,86198904

main15301-72010i2Y,3Y..YN10#,8#198809-199408

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i1KZTE..KZN130198809-199511

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54030i2L#,3L..LN10#,13#,8#198809-198908

sub15708-54060

main15708-54060i2LT#,2L,3L..LN10#,112,13#,8#198908

main15708-67010i1KZTE..KZN130199308-199511

sub15708-30010

9011606138

main90116-06138

9011606140

main90116-06140

9011606141

main90116-06141

9011906754

main90119-06754

9017906298

main90179-06298

9151260616

main91512-60616

9672124010

main96721-24010

34 parts on this diagram · 5 diagrams in section
