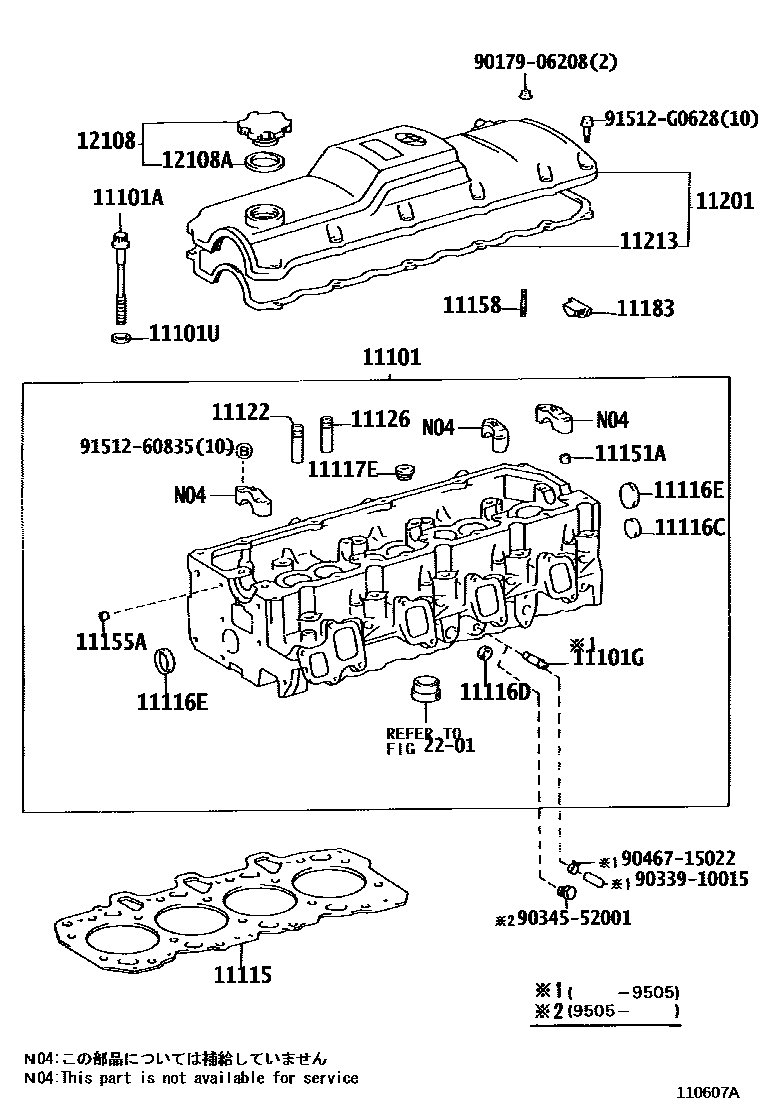

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-54110i2L..LN8#198809-199206

sub11101-54111

main11101-54111i2L..LN8#199206-199408

main11101-54120i2LT#..LN130198904-199206

sub11101-54121

main11101-54121i2LTE..LN108,112,130199206

main11101-54130i3L..LN10#,131198809-199206

sub11101-54131

main11101-54131i3L..LN100,106,107,109,131,81,86199206

main11101-65010i3VZE..VZN130199008-199205

sub11101-65011

main11101-65011i3VZE..VZN130199205-199511

main11101-69125i1KZTE..KZN130199308-199505

sub11101-69126

sub90345-52001

sub90404-52004

main11101-69126i1KZTE..KZN130199505-199511

sub11101-69128

sub11176-67011

sub12281-67070

sub12282-67030

sub90119-10907

sub91512-81025

sub91552-81020

sub91651-61016

main11101-71010i2Y..YN8#198809-199212

main11101-71011i2Y..YN8#199212-199408

main11101-73010i3Y..YN10#198809-199408

main11101-73020i3YE..YN130198904-199108

main11101-73021i3YE..YN107,8#199408

main11102-65010i3VZE..VZN130199008-199108

sub11102-65021

main11102-65020i3VZE..VZN130199108-199205

sub11102-65021

main11102-65021i3VZE..VZN130199205-199511

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i2Y,3Y#..YN10#,130,8#198809

main90910-02075i3VZE..VZN130199008-199511

main90910-02080i2LT#,2L,3L..LN10#,112,13#,8#198809

main90910-02081i2LT#,2L,3L..LN10#,112,13#,8#198809

main90910-02112i1KZTE..KZN130199308-199511

11101GUNION(FOR CYLINDER HEAD)

main90406-10019i1KZTE..KZN130199308-199505

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023i1KZTE..KZN130199308-199511

11115GASKET, CYLINDER HEAD

main11115-54070-B0i3L..LN10#,131198809-199111

sub11115-54070

sub11115-54071

main11115-54070-D0i3L..LN10#,131198809-199111

sub11115-54070

sub11115-54071

main11115-54070-F0i3L..LN10#,131198809-199111

sub11115-54070

sub11115-54071

main11115-54071-B0i3L..LN10#,131199111-199207

sub11115-54072

main11115-54071-D0i3L..LN10#,131199111-199207

sub11115-54072

main11115-54071-F0i3L..LN10#,131199111-199207

sub11115-54072

main11115-54072-B0i3L..LN100,106,107,109,81,86199207-199603

sub11115-54073

main11115-54072-D0i3L..LN100,106,107,109,81,86199207-199603

sub11115-54073

main11115-54072-F0i3L..LN10#,131199207-199603

sub11115-54073

main11115-54073-B0i3L..LN106,107,109,8#199603

main11115-54073-D0i3L..LN106,107,109,8#199603

main11115-54073-F0i3L..LN106,107,109,8#199603

main11115-54080-B0i2L#..LN130,8#198809-198908

sub11115-54081

main11115-54080-D0i2L#..LN130,8#198809-198908

sub11115-54081

main11115-54080-F0i2L#..LN130,8#198809-198908

sub11115-54081

main11115-54081-B0i2LT#,2L..LN130,8#198908-199111

sub11115-54082

main11115-54081-D0i2LT#,2L..LN130,8#198908-199111

sub11115-54082

main11115-54081-F0i2LT#,2L..LN130,8#198908-199111

sub11115-54082

main11115-54082-B0i2L#..LN130,8#199111-199204

sub11115-54083

main11115-54082-D0i2L#..LN130,8#199111-199204

sub11115-54083

main11115-54082-F0i2L#..LN130,8#199111-199204

sub11115-54083

main11115-54083-B0i2L#..LN130,8#199204-199408

sub11115-54084

main11115-54083-D0i2L#..LN130,8#199204-199408

sub11115-54084

main11115-54083-F0i2L#..LN130,8#199204-199408

sub11115-54084

main11115-54084-B0i2LTE..LN108,112199508

main11115-54084-D0i2LTE..LN108,112199508

main11115-54084-F0i2LTE..LN108,112199508

main11115-65030i3VZE..VZN130199008-199403

sub11115-65031

main11115-65031i3VZE..VZN130199403-199511

sub11115-65032

main11115-67020-01i1KZTE..KZN130199308-199509

MARK 1

sub11115-67040

main11115-67020-03i1KZTE..KZN130199308-199509

MARK 3

sub11115-67040

main11115-67020-05i1KZTE..KZN130199308-199509

MARK 5

sub11115-67040

main11115-67040-01i1KZTE..KZN130199509-199511

MARK 1

sub11115-67050

main11115-67040-03i1KZTE..KZN130199509-199511

MARK 3

sub11115-67050

main11115-67040-05i1KZTE..KZN130199509-199511

MARK 5

sub11115-67050

main11115-71011i2Y,3Y#..YN10#,130,8#198809-199008

sub11115-73040

main11115-73040i2Y,3Y#..YN10#,130,8#199008-199308

sub11115-73041

main11115-73041i2Y,3Y#..YN10#,8#199308

11116GASKET, CYLINDER HEAD, NO.2

main11116-65030i3VZE..VZN130199008-199403

sub11116-65031

main11116-65031i3VZE..VZN130199403-199511

sub11116-65032

11116CPLUG, TIGHT, NO.3

main96411-43000i2LT#,2L,3L..LN10#,13#,8#198809-199411

main96411-63000i1KZTE..KZN130199305-199511

11116DPLUG, TIGHT, NO.4

main96411-44500i2LT#,2L,3L..LN10#,13#,8#198809-199305

main96411-62000i1KZTE..KZN130199308-199511

main96411-64500i2L#,3L..LN10#,13#,8#199305-199501

11116EPLUG, TIGHT, NO.5

main96411-63500i1KZTE..KZN130199308-199511

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-20002i2Y,3Y#..YN10#,130,8#198809-199303

main90341-20008i3VZE..VZN130199008-199408

main90341-22008i1KZTE..KZN130199308-199511

11122BUSH, INTAKE VALVE GUIDE

main11122-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

sub11122-17020

main11122-65020i3VZE..VZN130199008-199511

main11122-67020i1KZTE..KZN130199308-199511

main11122-71020i2Y,3Y#..YN10#,130,8#198809

main11123-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

main11123-65020i3VZE..VZN130199008-199511

main11123-67020i1KZTE..KZN130199308-199511

main11123-71020i2Y,3Y#..YN10#,130,8#198809

11126BUSH, EXHAUST VALVE GUIDE

main11122-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

sub11122-17020

main11122-65020i3VZE..VZN130199008-199511

main11122-67020i1KZTE..KZN130199308-199511

main11123-54020i2LT#,2L,3L..LN10#,112,13#,8#198809

main11123-65020i3VZE..VZN130199008-199511

main11123-67020i1KZTE..KZN130199308-199511

main11126-71020i2Y,3Y#..YN10#,130,8#198809

main11127-71020i2Y,3Y#..YN10#,130,8#198809

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11021i1KZTE..KZN130198809-199603

11155APIN, RING W/HEAD

main90253-10004i1KZTE..KZN130199308-199511

main90253-11021i3VZE..VZN130199008-199511

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06089i3L..LN10#,8#198809-199505

main90116-06095i1KZTE..KZN130199308-199312

main90116-06149i1KZTE..KZN130199312-199511

main92122-80616i3L..LN106,107,109,8#199505

11183PLUG, SEMICIRCULAR

main11183-54020i1KZTE..KZN130198809-199511

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-65020i3VZE..VZN130199008-199108

sub11201-65030

main11201-65030i3VZE..VZN130199108-199511

main11201-71011i2Y,3Y#..YN10#,8#199208-199512

sub11201-71012

main11201-71012i3YE..YN107,8#199512

main11201-79035i2Y,3Y#..YN10#,130,8#198809-199208

sub11201-71011

sub11213-71020

sub90210-09001

main11202-65040i3VZE..VZN130199008-199108

sub11202-65050

main11202-65050i3VZE..VZN130199108-199511

main11210-54020i2LT#..LN130198904-199203

sub11210-54021

main11210-54021i2LTE..LN130199203-199208

sub11210-54022

main11210-54022i2LTE..LN130199208-199302

sub11210-54041

main11210-54030i2L,3L..LN10#,131,8#198809-199203

sub11210-54031

main11210-54031i2L,3L..LN100,106,107,109,131,8#199203-199704

sub11210-54032

main11210-54032i3L..LN106,107,109,8#199704

main11210-54041i2LTE..LN108,112,130199302-199704

sub11210-54042

main11210-54042i2LTE..LN108,112199704

main11210-67010i1KZTE..KZN130199308-199511

11213GASKET, CYLINDER HEAD COVER

main11213-54050i2LT#,2L,3L..LN10#,112,13#,8#198809

main11213-65010i3VZE..VZN130199008-199511

main11213-67010i1KZTE..KZN130199308-199511

main11213-71020i2Y,3Y#..YN10#,130,8#198809

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i1KZTE..KZN130199308-199511

main12180-61010i2Y,3Y#..YN10#,130,8#198809-199003

sub12180-70020

main12180-65010i3VZE..VZN130199008-199107

sub12180-65011

main12180-65011i3VZE..VZN130199107-199308

main12180-70020i2LT#,2L,3L..LN10#,112,13#,8#198809

main12180-73010i2Y,3Y#..YN10#,130,8#199011-199103

sub12180-73011

main12180-73011i2Y,3Y#..YN10#,130,8#199103-199408

main12180-75010i2Y,3Y#..YN10#,130,8#199003-199011

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD198809-199011

main12195-71020i2Y,3Y#..YN10#,130,8#198809-199003

main12195-73010i2Y,3Y#..YN10#,130,8#199011-199408

main90430-37004i3VZE..VZN130199008-199511

2201

9017906208

main90179-06208

9033910015

main90339-10015

9034552001

main90345-52001

9046715022

main90467-15022

9151260835

main91512-60835

91512G0628

main91512-G0628

27 parts on this diagram · 4 diagrams in section
