REAR WIPER

85010RMOTOR & LINK ASSY, RR WIPER

main85010-89132iLN60,61,YN60,61..V,WG198405-198903

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iLN60,61,YN60,61..V,WG198405-198903

85168TCOVER, WIPER LINK

main85168-89102-03iLN60,61,YN60,61..V198405-198608

GRAY,GRAY,TRIM1#

main85168-89102-05iLN61,YN61198608-198903

BEIGE,BEIGE,TRIM4#

main85168-89102-08iLN60,61,YN60,61..V198405-198608

IVORY,IVORY,TRIM4#

main85168-89102-13iLN61,YN61198608-198903

GRAY,GRAY,TRIM1#

85168VCLIP, WIPER LINK COVER

main90467-09064-03×4iLN60,61,YN60,61..V198405-198608

GRAY,GRAY,TRIM1#

main90467-09064-05×4iLN61,YN61198608-198903

BEIGE,BEIGE,TRIM4#

main90467-09064-08×4iLN60,61,YN60,61..V198405-198608

IVORY,IVORY,TRIM4#

main90467-09064-13×4iLN61,YN61198608-198903

GRAY,GRAY,TRIM1#

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iLN60,61,YN60,61..V,WG198405-198903

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iLN60,61,YN60,61..V,WG198405-198903

85190RARM ASSY, REAR WIPER

main85190-89133iLN60,61,YN60,61..V,WG198405-198903

85192RCOVER, REAR WIPER ARM

main85192-14020iLN60,61,YN60,61..V,WG198405-198903

sub85192-13060

85196ASLIDER, WIPER ARM

main85196-89133iLN60,61,YN60,61..V,WG198405-198903

85220RBLADE ASSY, REAR WIPER

main85220-22460iLN60,61,YN60,61..V,WG198405-198903

sub85220-22461

main85220-89108iLN61,YN61198608-198903

WINTER BLADE

85221RBLADE, REAR WIPER

main85221-16070iLN60,61,YN60,61..V,WG198405-198903

sub85214-12H90

85267ASTEP, LINEAR WIPER

main85267-89101iLN60,61,YN60,61..V,WG198405-198903

8523189121

main85231-89121

9009900925

main90099-00925

9016745003

main90167-45003

9165640622

main91656-40622

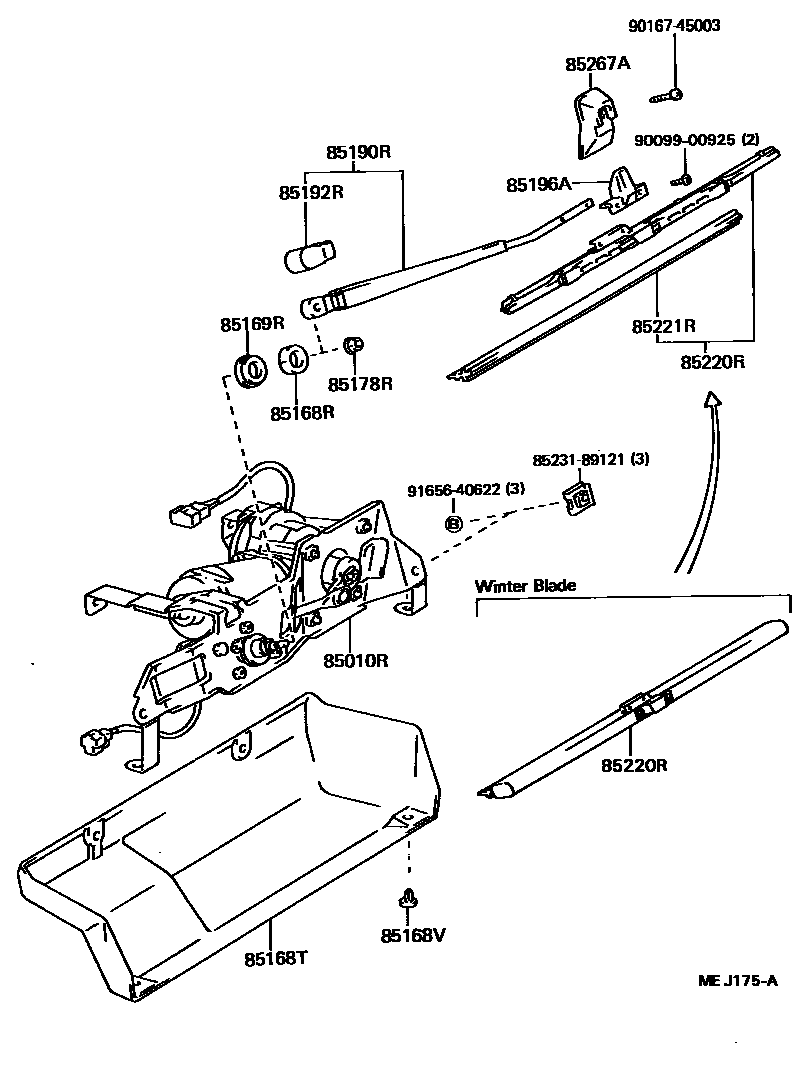

16 parts on this diagram · 1 diagram in section
