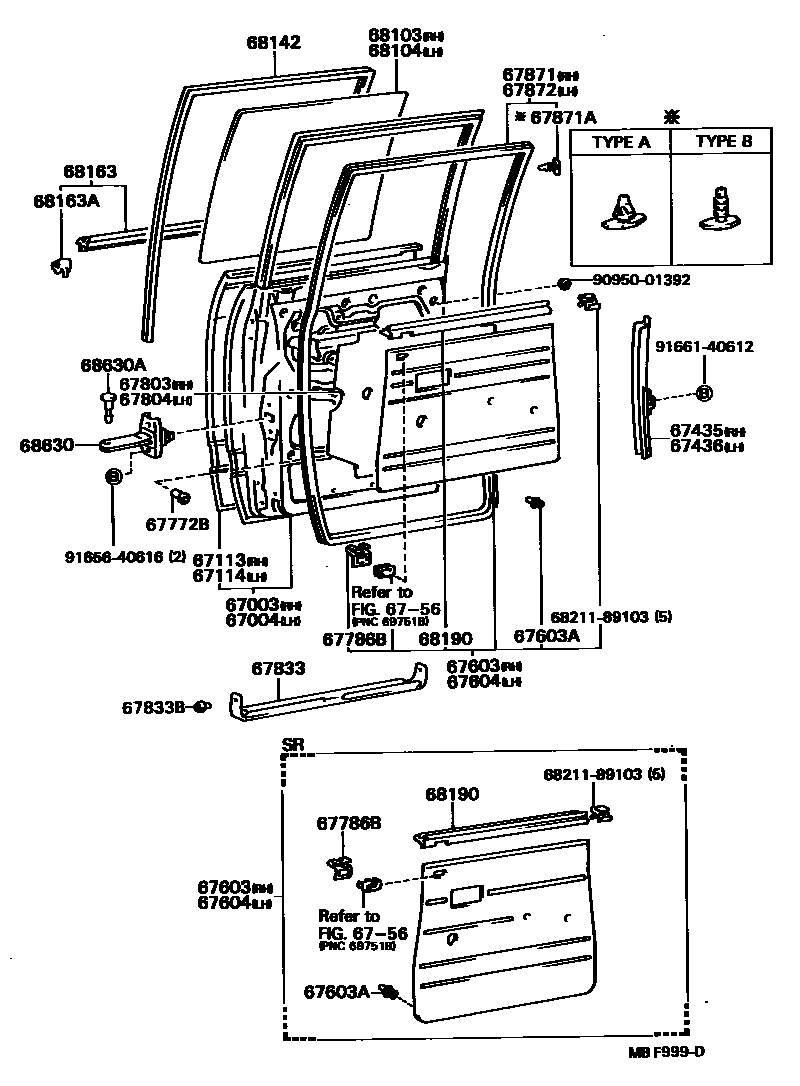

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-89102iLN55,56,YN56..TW198312-198608

sub67003-89104

main67003-89103iLN65..TW198312-198608

sub67003-89106

main67003-89106iLN56,65,YN56,65..TW198608-198808

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-89102iLN55,56,YN56..TW198312-198608

sub67004-89104

main67004-89103iLN65..TW198312-198608

sub67004-89106

main67004-89106iLN56,65,YN56,65..TW198608-198808

67113PANEL, REAR DOOR, OUTER RH

main67113-89102iLN55,56,65,YN56..TW198312-198608

sub67113-89103

main67113-89103iLN56,65,YN56,65..TW198608-198808

67114PANEL, REAR DOOR, OUTER LH

main67114-89102iLN55,56,65,YN56..TW198312-198608

sub67114-89103

main67114-89103iLN56,65,YN56,65..TW198608-198808

67435FRAME, REAR DOOR WINDOW LOWER, RH

main67407-89102iLN55,56,65,YN56,65..TW198312-198808

67436FRAME, REAR DOOR WINDOW, LOWER LH

main67408-89102iLN55,56,65,YN56,65..TW198312-198808

6756

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-89106-03iLN55,56,YN56..TW198312-198608

GRAY,GRAY,TRIM1#

main67630-89106-04iLN55,56,YN56..TW198312-198608

BLUE,BLUE,TRIM8#

main67630-89106-06iLN55,56,YN56..TW198312-198608

BROWN,BROWN,TRIM4#

main67630-89107-03iLN65..TW198312-198608

GRAY,GRAY,TRIM1#

main67630-89107-04iLN65..TW198312-198608

BLUE,BLUE,TRIM8#

main67630-89107-06iLN65..TW198312-198608

BROWN,BROWN,TRIM4#

main67630-89112-03iLN56,YN56..TW198608-198808

GRAY,GRAY,TRIM1#

main67630-89112-04iLN56,YN56..TW198608-198808

BLUE,BLUE,TRIM8#

main67630-89114-03iLN65,YN65..TW198608-198808

GRAY,GRAY,TRIM1#

main67630-89114-04iLN65,YN65..TW198608-198808

BLUE,BLUE,TRIM8#

main67630-89114-05iLN65,YN65..TW198608-198808

BEIGE,BEIGE,TRIM4#

main67630-89115-05iLN56,YN56..TW198608-198808

BEIGE,BEIGE,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12010iLN55,56,YN56..TW198312-198808

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-89106-03iLN55,56,YN56..TW198312-198608

GRAY,GRAY,TRIM1#

main67640-89106-04iLN55,56,YN56..TW198312-198608

BLUE,BLUE,TRIM8#

main67640-89106-06iLN55,56,YN56..TW198312-198608

BROWN,BROWN,TRIM4#

main67640-89107-03iLN65..TW198312-198608

GRAY,GRAY,TRIM1#

main67640-89107-04iLN65..TW198312-198608

BLUE,BLUE,TRIM8#

main67640-89107-06iLN65..TW198312-198608

BROWN,BROWN,TRIM4#

main67640-89112-03iLN56,YN56..TW198608-198808

GRAY,GRAY,TRIM1#

main67640-89112-04iLN56,YN56..TW198608-198808

BLUE,BLUE,TRIM8#

main67640-89114-03iLN65,YN65..TW198608-198808

GRAY,GRAY,TRIM1#

main67640-89114-04iLN65,YN65..TW198608-198808

BLUE,BLUE,TRIM8#

main67640-89114-05iLN65,YN65..TW198608-198808

BEIGE,BEIGE,TRIM4#

main67640-89115-05iLN56,YN56..TW198608-198808

BEIGE,BEIGE,TRIM4#

67772BCAP, REAR DOOR TRIM RETAINER

main67772-20021iLN65..TW198312-198608

main67772-89101iLN56,65,YN56,65..TW198608-198808

67786BRETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67786-10010iLN55,56,65,YN56..TW198312-198608

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-89101iLN55,56,65,YN56,65..TW198312-198808

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-89101iLN55,56,65,YN56,65..TW198312-198808

67833COVER, REAR DOOR SERVICE HOLE

main67842-89102iLN55,56,65,YN56,65..TW198312-198808

67833BCLIP(FOR REAR DOOR SERVICE HOLE COVER)

main90467-07041-03iLN55,56,65,YN56,65..TW198312-198808

GRAY,GRAY,TRIM1#

sub90467-07041

67871WEATHERSTRIP, REAR DOOR, RH

main67871-89102iLN55,56,65,YN56,65..TW198312-198808

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-89103iLN55,56,65,YN56,65..TW198312-198808

TYPE A,RH

main67868-30040iLN55,56,65,YN56,65..TW198405-198808

TYPE B

main67868-89101iLN55,56,65,YN56,65..TW198312-198808

TYPE A,LH

sub67867-89103

67872WEATHERSTRIP, REAR DOOR, LH

main67872-89102iLN55,56,65,YN56,65..TW198312-198808

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-89103iLN55,56,YN56..TW198312-198608

sub68113-89104

main68113-89104iLN65..TW198312-198808

68104GLASS SUB-ASSY, REAR DOOR, LH

main68113-89103iLN55,56,YN56..TW198312-198608

sub68113-89104

main68113-89104iLN65..TW198312-198808

68142RUN, REAR DOOR GLASS

main68142-89102iLN55,56,65,YN56,65..TW198312-198808

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-89102iLN55,56,65,YN56,65..TW198312-198808

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-89105iLN55,56,65,YN56,65..TW198312-198808

sub68211-89104

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-89106iLN55,56,65,YN56..TW198312-198608

RH

main68173-89107iLN56,65,YN56,65..TW198608-198808

RH

main68174-89103iLN55,56,65,YN56..TW198312-198608

LH

main68174-89104iLN56,65,YN56,65..TW198608-198808

LH

68630CHECK ASSY, REAR DOOR

main68630-89102iLN55,56,65,YN56,65..TW198312-198808

68630APIN(FOR REAR DOOR CHECK)

main68617-22010iLN55,56,65,YN56..TW198312-198608

sub68617-12010

main68617-90A00iLN56,65,YN56,65..TW198608-198808

6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)

main68211-89103

9095001392

main90950-01392

9165640616

main91656-40616

9166140612

main91661-40612

31 parts on this diagram · 1 diagram in section
