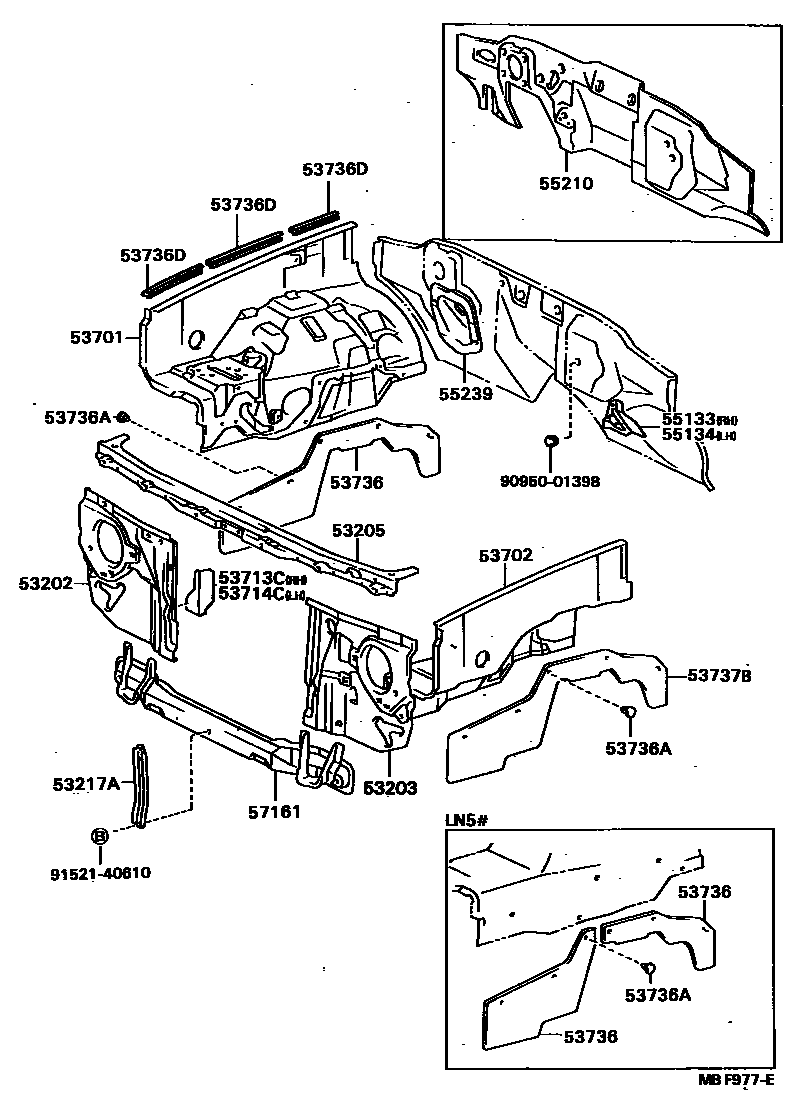

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-89112iLN60,YN60..V198405-198508

main53211-89113iLN5#,6#,YN56,6#..T1,T3,TW198311-198406

main53211-89114iLN5#,60,65,YN5#,60,65..T1,T3,TW198406-198608

main53211-89116iLN61,YN61198508-198608

main53211-89120iLN5#,6#,YN5#,6#198608-198903

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-89111iLN60,YN60..V198405-198508

main53212-89112iLN5#,60,65,YN5#,60,65..T1,T3,TW198311-198608

main53212-89113iLN61,YN61198508-198608

main53212-89117iLN5#,6#,YN5#,6#198608-198903

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-89105iLN60,61,YN60,61..V198405-198608

main53216-89106iLN5#,60,65,YN5#,60,65..T1,T3,TW198311-198608

main53216-89107iLN5#,6#,YN5#,6#198608-198903

53217ABRACE, HOOD LOCK SUPPORT

main53217-89107iLN5#,6#,YN5#,6#198311-198903

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-89128iLN5#198311-198808

main53701-89130iYN5#198311-198608

main53701-89134iYN6#198311-198608

main53701-89137iLN6#..DSL198311-198903

main53701-89144iYN60198311-198408

W/WINCHI

main53701-89145iLN60198311-198408

W/WINCHI

main53701-89148iLN60..TD198411-198503

W/WINCHI

main53701-89149iLN60..TD198411-198503

main53701-89172iLN60..TD198503-198508

main53701-89173iLN61..TD198508-198903

main53701-89174iLN60..TD198503-198508

W/WINCHI

main53701-89185iYN5#198608-198808

main53701-89193iYN6#..CBR; YN61..EFI198608-198903

W/WINCHI

main53701-89195iYN61..EFI198608-198903

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-89166iYN5#198311-198808

main53702-89168iYN6#..CBR198311-198903

main53702-89173iLN5#198311-198408

main53702-89175iLN6#198311-198408

main53702-89182iLN5#198311-198408

COLD SPEC

main53702-89183iLN6#198311-198408

COLD SPEC

main53702-89194iLN5#198408-198808

main53702-89196iLN5#198408-198808

COLD SPEC

main53702-89199iLN6#198408-198903

main53702-89200iLN6#198408-198903

COLD SPEC

main53702-89227iYN61..EFI198608-198903

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-89101iLN5#,60,65,YN5#,60,65198608-198808

main53713-89103iLN61,YN61198608-198903

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-89101iLN5#,60,65,YN5#,60,65198608-198808

main53714-89103iLN61,YN61198608-198903

53736SEAL, FRONT FENDER APRON, RH

main53736-89107iYN5#198311-198808

main53736-89108iLN5#198311-198808

FR

main53736-89111iLN60,65198311-198808

RR

main53736-89114iYN61198508-198810

main53736-89115iLN61198508-198810

FR

main53736-89116iLN61198508-198812

RR

main53736-89126iYN61198810-198903

main53736-89127iLN61198810-198903

FR

main53736-89128iLN61198812-198903

RR

main53737-89105iLN5#198311-198808

RR

main53737-89106iYN60,65198311-198808

main53737-89107iLN60,65198311-198808

FR

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10005-01×10iLN6#,YN5#,6#198311-198810

BLACK,BLACK

main90467-10107×10iLN61,YN61198810-198903

53736DSEAL, FENDER APRON

main53736-89112×2iLN56..4FC198508-198808

L=300

main53736-89113×4iLN56..4FC198508-198808

L=180

53737BSEAL, FRONT FENDER APRON, LH

main53736-89107iLN5#; YN5#198311-198808

main53736-89109iLN60,65,YN60,65198311-198808

main53736-89114iLN61,YN61198508-198810

main53736-89126iLN61,YN61198810-198903

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-89103iLN5#,6#,YN5#,6#198311-198903

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-89103iLN5#,6#,YN5#,6#198311-198903

55210INSULATOR ASSY, DASH PANEL

main55210-89141iYN5#,6#198311-198608

main55210-89142iLN5#,6#198311-198608

main55210-89145iYN61198608-198903

main55210-89146iYN5#,60,65198608-198808

main55210-89147iLN5#,6#198608-198903

55239SILENCER, STEERING COLUMN HOLE COVER

main55210-89136iLN6#,YN6#198311-198903

main55210-89137iLN5#,YN5#..MTM198311-198808

57161CROSSMEMBER, FRONT

main57104-89104iLN5#,YN5#198311-198702

main57104-89105iLN60,65,YN60,65..T1,TW198311-198702

main57104-89107iLN5#,YN5#198702-198808

main57104-89108iLN60,65,YN60,65198702-198808

9095001398

main90950-01398

9152140610

main91521-40610

19 parts on this diagram · 2 diagrams in section
