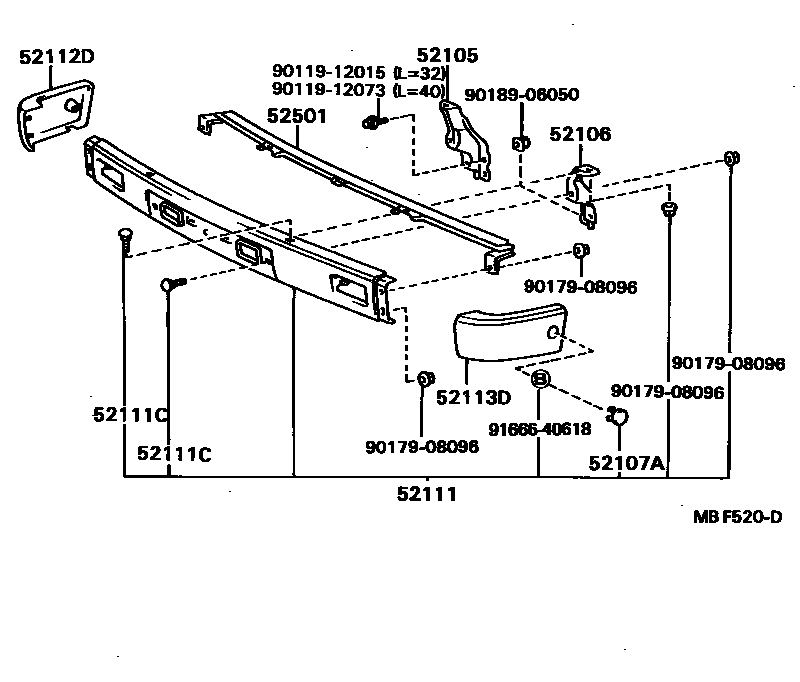

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0004 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-89105iLN60,YN60198311-198408

main52011-89106iLN5#,65,YN56,65198311-198408

main52011-89108iLN60,YN60198408-198808

main52011-89109iLN5#,65,YN5#,65198408-198808

main52011-89111iLN61,YN61198508-198903

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-89105iLN60,YN60198311-198408

main52012-89106iLN5#,65,YN56,65198311-198408

main52012-89108iLN60,YN60198408-198808

main52012-89109iLN5#,65,YN5#,65198408-198808

main52012-89111iLN61,YN61198508-198903

52107ACOVER, FRONT BUMPER ARM HOLE

main52127-89101×2iLN5#,6#,YN5#,6#198311-198903

52111BUMPER ASSY, FRONT

main52111-39495iLN5#,YN5#..DLX198311-198608

main52111-39505iLN55,56,YN56..SDX198311-198608

main52111-39515iLN56,YN56..SDX198608-198611

CHROME PLATED

main52111-39525iLN6#,YN60,61..SR,SSR198311-198608

main52111-39535iLN65,YN65..DLX198311-198608

main52111-39545iLN6#,YN6#198311-198611

CHROME PLATED

main52111-89139iLN56,YN56..SDX198611-198808

CHROME PLATED

main52111-89146iLN60,65,YN60,65198708-198808

CHROME PLATED

main52111-89156iLN5#,YN5#198608-198808

main52111-89158iLN6#,YN6#..CBR,DSL,TD198608-198708

main52111-89164iLN61,YN61..V198708-198903

main52111-89165iLN61,YN61198708-198903

CHROME PLATED

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08035×4iLN5#,6#,YN5#,6#198311-198903

CHROME PLATED

main90112-08038×4iLN5#,YN5#..DLX198311-198608

main90112-08050×4iLN55,56,YN56..SDX; LN6#,YN6#198311-198608

main90112-08065×4iLN5#,6#,YN5#,6#..CBR,DSL,TD198608-198903

52112DEXTENSION, FRONT BUMPER, RH

main52102-89104iLN5#,YN5#198311-198808

main52102-89105iLN65,YN65198311-198808

main52102-89106iLN60,61,YN60,61198311-198903

52113DEXTENSION, FRONT BUMPER, LH

main52103-89104iLN5#,YN5#198311-198808

main52103-89105iLN65,YN65198311-198808

main52103-89106iLN60,61,YN60,61198311-198903

52501FILLER SUB-ASSY, FRONT BUMPER

main52501-89102iLN60,61,YN60,61198311-198608

main52501-89104iLN60,61,YN60,61198608-198903

9011912015

main90119-12015

9011912073

main90119-12073

9017908096

main90179-08096

9018906050

main90189-06050

9166640618

main91666-40618

13 parts on this diagram · 3 diagrams in section
