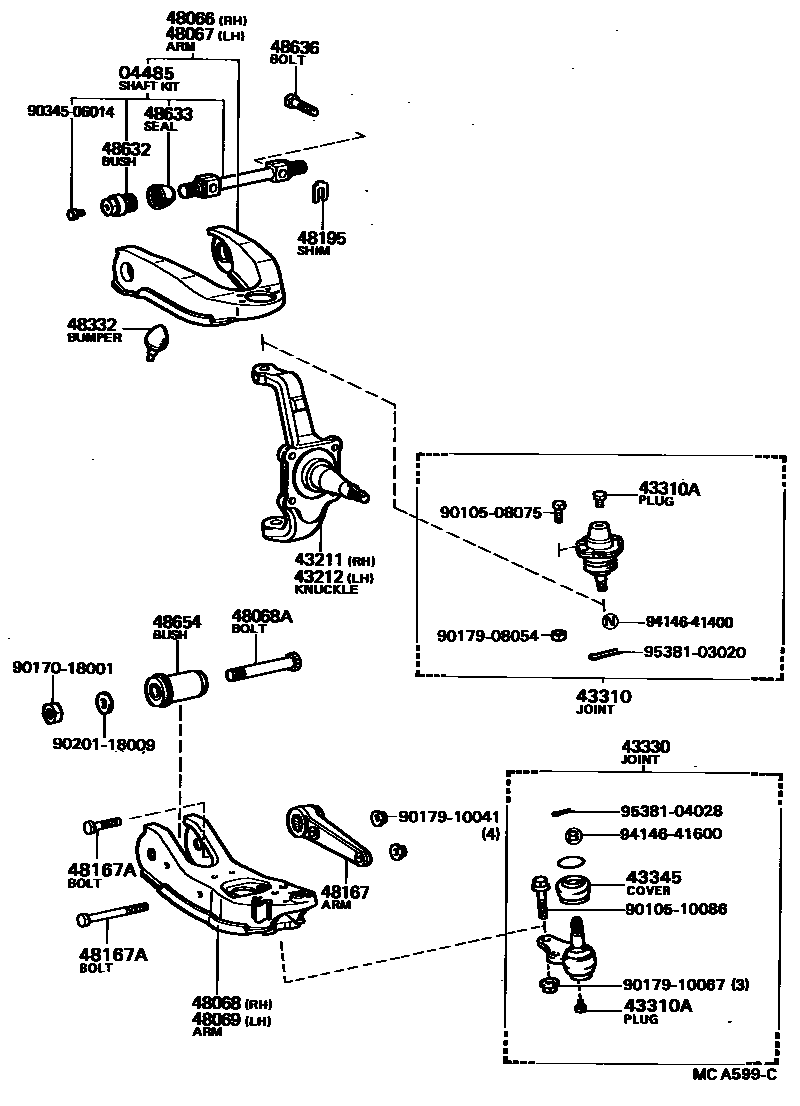

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-35020iLN5#,YN5#198311-198808

main04485-35040iLN61,YN61198508-198903

43211KNUCKLE, STEERING, RH

main43201-35020iLN61,YN61198508-198903

main43211-35070iLN5#,YN5#198311-198808

main43211-35090iLN60,65,YN60,65198311-198808

43212KNUCKLE, STEERING, LH

main43202-35010iLN61,YN61198508-198903

main43212-35040iLN5#,YN5#198311-198808

main43212-35050iLN60,65,YN60,65198311-198808

43310JOINT ASSY, UPPER BALL

main43350-39035iLN5#,YN5#198311-198808

main43350-39045iLN61,YN61198508-198903

RH

main43360-39075iLN61,YN61198508-198903

LH

43310APLUG (FOR BALL JOINT)

main90345-06014iLN5#,61,YN5#,61198311-198903

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39165iLN5#,YN5#198311-198808

RH

main43330-39195iLN61,YN61198508-198903

RH

main43340-39145iLN5#,YN5#198311-198808

LH

main43340-39175iLN61,YN61198508-198903

LH

43345COVER, LOWER BALL JOINT DUST

main43345-26010iLN5#,YN5#198311-198508

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35050iLN5#,YN5#198311-198808

main48066-35070iLN61,YN61198508-198808

main48066-35100iLN61,YN61198808-198903

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35050iLN5#,YN5#198311-198808

main48067-35030iLN61,YN61198508-198808

main48067-35040iLN61,YN61198808-198903

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35040iLN61,YN61198508-198903

main48605-35060iLN5#,YN5#198311-198705

main48605-35070iLN5#,YN5#198705-198808

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003iLN5#,YN5#198311-198808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35040iLN61,YN61198508-198903

main48606-35060iLN5#,YN5#198311-198705

main48606-35070iLN5#,YN5#198705-198808

48167ARM, TORQUE

main48106-35010iLN61,YN61198508-198804

main48106-35011iLN61,YN61198804-198903

main48167-35020iLN5#,YN5#198311-198808

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087iLN5#,YN5#198311-198808

L=129

main90105-10088iLN5#,YN5#198311-198808

L=26

main90105-12112iLN61,YN61198508-198903

48195SHIM, CAMBER ADJUST

main90565-12004iLN5#,YN5#198311-198808

main90565-12008iLN5#,YN5#198311-198808

main90565-12009iLN5#,YN5#198311-198808

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iLN5#,YN5#198311-198808

48632BUSH, UPPER ARM

main48632-26010iLN61,YN61198508-198903

FR

main48632-30012iLN5#,YN5#198311-198808

main48635-26010iLN61,YN61198508-198903

RR

48633SEAL, UPPER ARM PIVOT DUST

main48633-35010iLN5#,YN5#198311-198808

48636BOLT, UPPER ARM SET

main90105-12080iLN5#,YN5#198311-198808

48654BUSH, LOWER ARM

main48061-35010iLN61,YN61198508-198511

main48061-35011iLN61,YN61198511-198903

main48654-35010iLN5#,YN5#198508-198808

main48654-35030iLN5#,YN5#198311-198508

9010508075

main90105-08075

9010510086

main90105-10086

9017018001

main90170-18001

9017908054

main90179-08054

9017910041

main90179-10041

9017910067

main90179-10067

9020118009

main90201-18009

9034506014

main90345-06014

9414641400

main94146-41400

9414641600

main94146-41600

9538103020

main95381-03020

9538104028

main95381-04028

32 parts on this diagram · 3 diagrams in section
