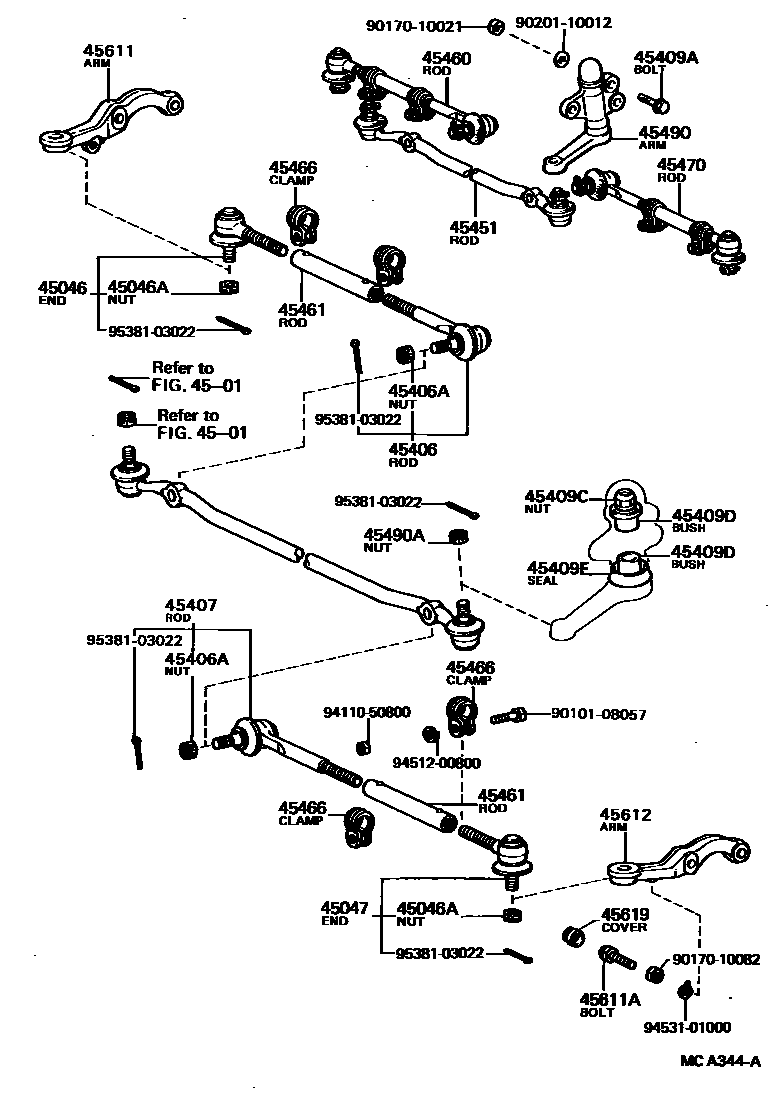

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1

4501

45046END SUB-ASSY, TIE ROD, RH

main45046-29125iLN61,YN61198508-198903

sub45046-39235

main45046-35080iLN60,65,YN60,65198311-198808

sub45046-35H00

sub45466-55020

main45046-39165iLN5#,YN5#198311-198808

sub45046-39375

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iLN5#,6#,YN5#,6#198311-198903

45047END SUB-ASSY, TIE ROD, LH

main45046-29125iLN61,YN61198508-198903

sub45046-39235

main45046-39165iLN5#,YN5#198311-198808

sub45046-39375

main45047-35050iLN60,65,YN60,65198311-198808

sub45047-35H00

sub45466-55020

45406ROD SUB-ASSY, TIE, RH

main45406-39115iLN5#,YN5#198311-198808

main45406-39135iLN61,YN61198508-198903

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042iLN5#,61,YN5#,61198311-198903

45407ROD SUB-ASSY, TIE, LH

main45406-39115iLN5#,YN5#198311-198808

main45406-39135iLN61,YN61198508-198903

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-10113iLN5#,YN5#198311-198808

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iLN5#,61,YN5#,61198311-198903

45409DBUSH(FOR IDLER ARM)

main90385-18068iLN5#,61,YN5#,61198311-198808

TYPE A

main90386-18002iLN61,YN56,61198808-198903

TYPE B

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iLN5#,61,YN5#,61198311-198903

45451ROD, STEERING RELAY

main45450-39105iLN5#,YN5#198311-198808

main45451-39025iLN61,YN61198508-198903

sub45451-39135

45460ROD ASSY, TIE, RH

main45460-39205iLN60,65,YN60,65198311-198808

sub45460-39255

main45460-39215iLN5#,YN5#198311-198808

main45460-39245iLN61,YN61198508-198903

45461ROD, STEERING TIE

main45461-35100iLN60,65,YN60,65198311-198808

main45465-35020iLN5#,YN5#198311-198808

main45465-35030iLN61,YN61198508-198903

45466CLAMP, TIE ROD END

main45466-30020iLN5#,61,YN5#,61198311-198903

main45466-55010iLN60,65,YN60,65198311-198808

45470ROD ASSY, TIE, LH

main45460-39215iLN5#,YN5#198311-198808

main45470-39055iLN61,YN61198508-198903

45490ARM ASSY, STEERING IDLER

main45490-35130iLN5#,YN5#198311-198808

main45490-39255iLN61,YN61198508-198808

sub45490-39335

main45490-39335iLN61,YN61198808-198903

sub45490-39345

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iLN5#,61,YN5#,61198311-198903

45611ARM, STEERING KNUCKLE, RH

main45601-35070iLN60,65,YN60,65198311-198808

main45611-35120iLN5#,YN5#198311-198808

main45611-35130iLN61,YN61198508-198903

45611ABOLT, KNUCKLE STOPPER

main90106-10032iLN5#,YN5#198311-198808

main90106-12022iLN61,YN61198508-198903

45612ARM, STEERING KNUCKLE, LH

main45612-35120iLN5#,YN5#198311-198808

main45612-35130iLN60,65,YN60,65198311-198808

main45612-35150iLN61,YN61198508-198903

45619COVER, KNUCKLE STOPPER

main45619-14020iLN5#,YN5#198311-198808

main45619-36010iLN61,YN61198511-198903

9010108057

main90101-08057

9017010021

main90170-10021

9017010082

main90170-10082

9020110012

main90201-10012

9411050800

main94110-50800

9451200800

main94512-00800

9453101000

main94531-01000

9538103022

main95381-03022

30 parts on this diagram · 8 diagrams in section
