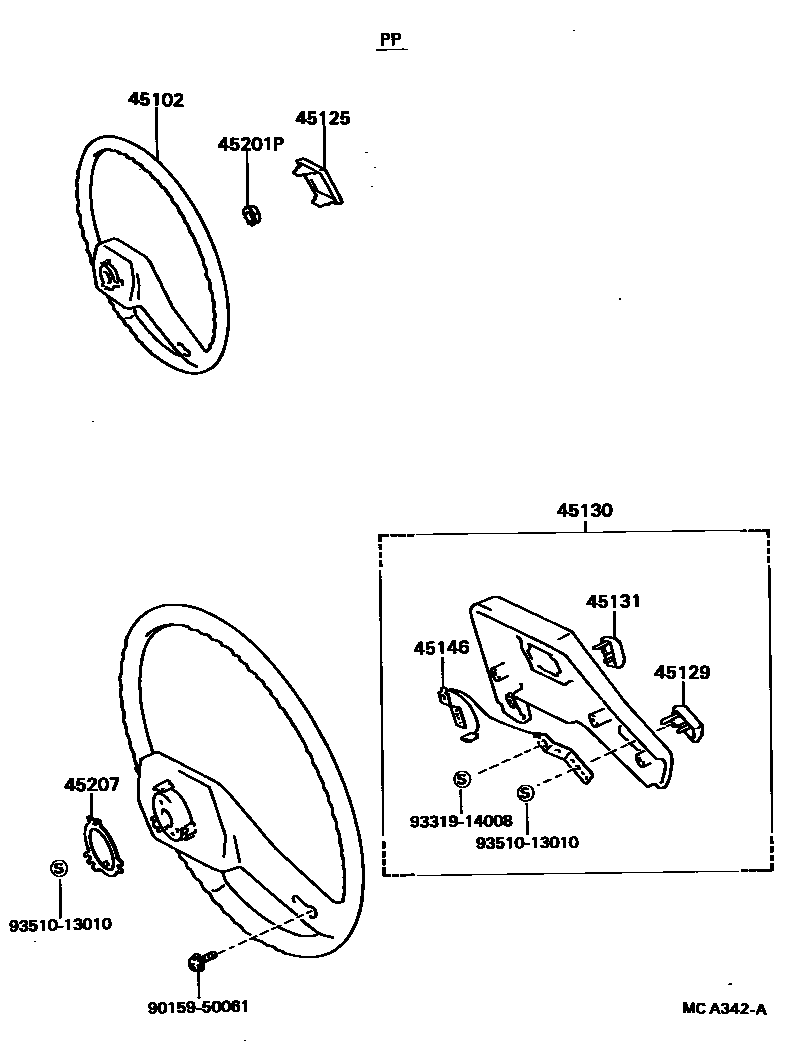

STEERING WHEEL

0001 1 0002 1 0003 1SSR�������

45102WHEEL SUB-ASSY, STEERING

main45100-14350-03iLN61,YN61..SSR198608-198903

SSR LIMITED,GRAY,GRAY,TRIM1#

main45100-14350-05iLN61,YN61..SSR198608-198903

SSR LIMITED,BEIGE,BEIGE,TRIM4#

main45100-35210iLN5#,65,YN5#,65..DLX198311-198608

main45100-35211-03iLN5#,65,YN5#..DLX198608-198808

GRAY,GRAY,TRIM1#

main45100-35211-04iLN5#,65,YN5#..DLX198608-198808

BLUE,BLUE,TRIM8#

main45100-35211-05iLN5#,65,YN5#..DLX198608-198808

BEIGE,BEIGE,TRIM4#

main45100-35220iLN55,56,6#,YN56,60,61..SDX,SR,SSR198311-198608

main45100-35221-03iLN56,6#,YN56,6#..SDX,SR,SSR198608-198903

GRAY,GRAY,TRIM1#

main45100-35221-04iLN56,60,65,YN56,60..SDX,SR198608-198808

BLUE,BLUE,TRIM8#

main45100-35221-05iLN61,YN61..SSR198608-198903

BEIGE,BEIGE,TRIM4#

45125MARK, STEERING WHEEL PAD

main45125-35080iLN5#,65,YN5#,65..DLX198311-198608

main45125-35081-03iLN5#,65,YN5#..DLX198608-198808

GRAY,GRAY,TRIM1#

main45125-35081-04iLN5#,65,YN5#..DLX198608-198808

BLUE,BLUE,TRIM8#

main45125-35081-05iLN5#,65,YN5#..DLX198608-198808

BEIGE,BEIGE,TRIM4#

main45125-35090iLN55,56,YN56..SDX198311-198608

main45125-35091-03iLN56,6#,YN56,6#..SDX,SR,SSR198608-198903

GRAY,GRAY,TRIM1#

main45125-35091-04iLN56,60,65,YN56,60..SDX,SR198608-198808

BLUE,BLUE,TRIM8#

main45125-35091-05iLN56,60,65,YN56,60..SDX,SR198608-198808

BEIGE,BEIGE,TRIM4#

main45125-35110iLN6#,YN60,61..SR,SSR198311-198608

main45125-35141iLN61,YN61..SSR198608-198903

SSR LIMITED

45129BUTTON, HORN, NO.2

main45129-35040iLN5#,65,YN5#,65..DLX198311-198608

main45129-35041-03iLN5#,65,YN5#..DLX198608-198808

GRAY,GRAY,TRIM1#

main45129-35041-04iLN5#,65,YN5#..DLX198608-198808

BLUE,BLUE,TRIM8#

main45129-35041-05iLN5#,65,YN5#..DLX198608-198808

BEIGE,BEIGE,TRIM4#

45130BUTTON ASSY, HORN

main45130-35170iLN5#,65,YN5#,65..DLX198311-198608

main45130-35171-03iLN5#,65,YN5#..DLX198608-198808

GRAY,GRAY,TRIM1#

main45130-35171-04iLN5#,65,YN5#..DLX198608-198808

BLUE,BLUE,TRIM8#

main45130-35171-05iLN5#,65,YN5#..DLX198608-198808

BEIGE,BEIGE,TRIM4#

main45130-35191-03iLN61,YN61..SSR198608-198903

GRAY,GRAY,TRIM1#

main45130-35191-05iLN61,YN61..SSR198608-198903

BEIGE,BEIGE,TRIM4#

45131BUTTON, HORN, NO.1

main45131-35120iLN5#,65,YN5#,65..DLX198311-198608

main45131-35121-03iLN5#,65,YN5#..DLX198608-198808

GRAY,GRAY,TRIM1#

main45131-35121-04iLN5#,65,YN5#..DLX198608-198808

BLUE,BLUE,TRIM8#

main45131-35121-05iLN5#,65,YN5#..DLX198608-198808

BEIGE,BEIGE,TRIM4#

45146SPRING, HORN BUTTON CONTACT

main45146-35070iLN5#,65,YN5#..DLX198608-198808

45201PNUT, STEERING WHEEL SET

main90179-12086iLN5#,6#,YN5#,6#198311-198903

45207RING, HORN CONTACT

main45176-20030iLN5#,65,YN5#,65..DLX198311-198808

main45176-22050iLN61,YN61..SSR198608-198903

SSR LIMITED

main45176-35020iLN55,56,6#,YN56,6#..SDX,SR,SSR198311-198903

9015950061

main90159-50061

9331914008

main93319-14008

9351013010

main93510-13010

11 parts on this diagram · 3 diagrams in section
