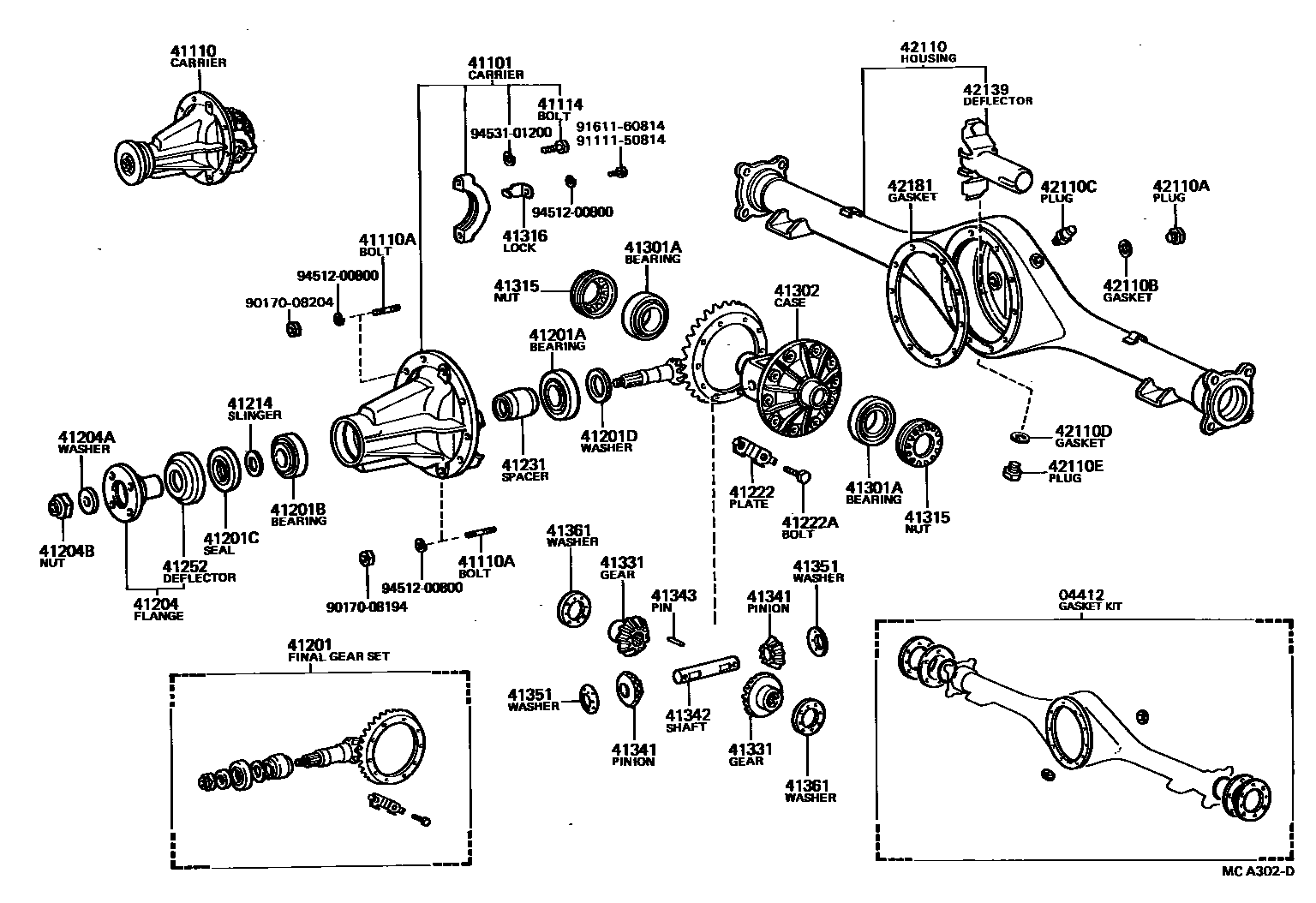

REAR AXLE HOUSING & DIFFERENTIAL
04412GASKET KIT, REAR DIFFERENTIAL CARRIER
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=43:10=4.300
R=41:9=4.556
R=39:8=4.875
R=43:10=4,300
R=41:9=4.556
R=43:10=4,300,W/LSD
R=41:9=4.556,W/LSD
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
R=43:10
R=41:9
R=43:10
R=41:9
R=43:10
R=41:9
R=39:8
R=39:8
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W/LSD
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W/LSD
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41331GEAR, REAR DIFFERENTIAL SIDE
W/LSD
41341PINION, REAR DIFFERENTIAL
W/LSD
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
T=1.0
T=0.6
W/LSD
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
9017008194
main90170-08194
9017008204
main90170-08204
9111150814
main91111-50814
9161160814
main91611-60814
9451200800
main94512-00800
9453101200
main94531-01200
42 parts on this diagram · 2 diagrams in section
