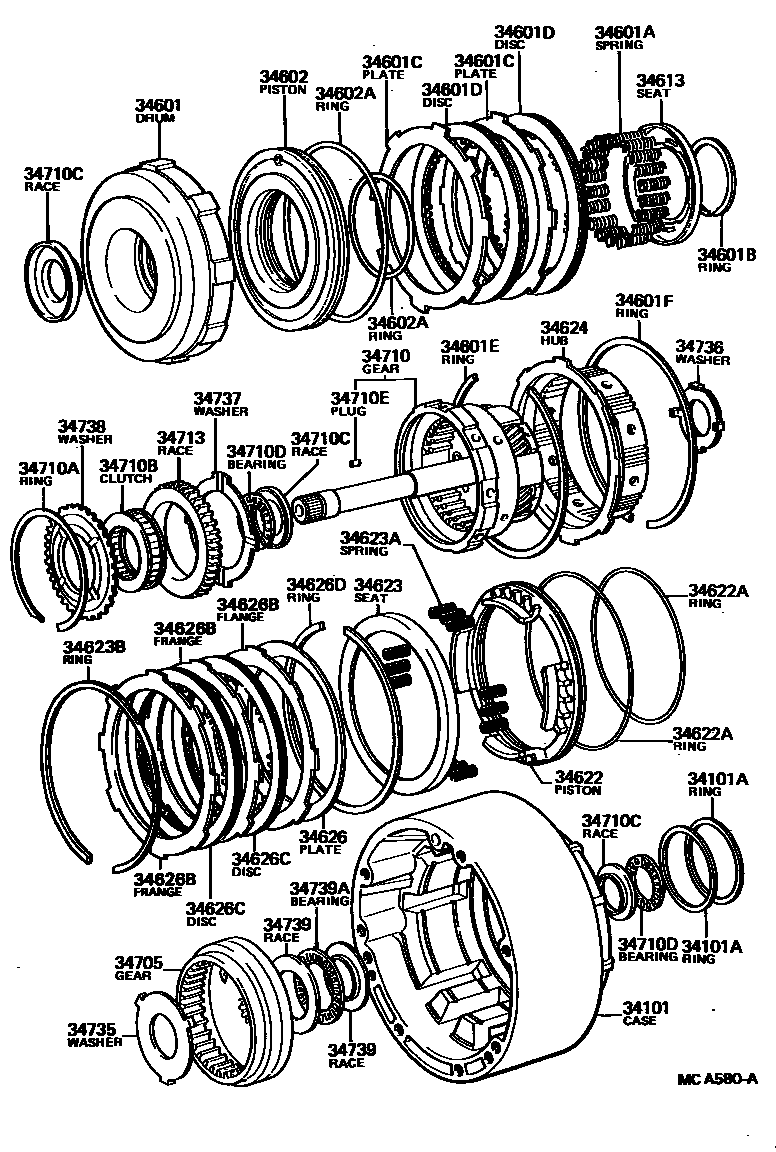

OVERDRIVE GEAR (ATM)
34101CASE SUB-ASSY, OVERDRIVE
34101ARING, OIL SEAL (FOR OVERDRIVE CASE)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)
34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)
34601CPLATE, CLUTCH (FOR OVERDRIVE)
34601DDISC, CLUTCH (FOR OVERDRIVE)
34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)
34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
OD=56.57-57.67
INNER,ID=65
OD=122.12-122.88
OUTER,ID=112,5
34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING
34622PISTON, OVERDRIVE BRAKE
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
ID=108.45-109.95
ID=123.23-125.23
INNER
OUTER
34623SEAT, OVERDRIVE BRAKE RETURN SPRING
34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)
34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)
34626PLATE, OVERDRIVE BRAKE CUSHION
34626BFLANGE, REAR CLUTCH (FOR OVERDRIVE)
34626CDISC, CLUTCH (FOR OVERDRIVE)
34626DRING, HOLE SNAP (FOR OVERDRIVE)
34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING
34710GEAR ASSY, OVERDRIVE PLANETARY
34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)
34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)
34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)
CTR
FR
RR
FILLER
DRAIN
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
RR
CTR
34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1
34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2
34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3
34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4
34739RACE, THRUST BEARING(FOR OVERDRIVE)
FR
RR
34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)
36 parts on this diagram · 2 diagrams in section
