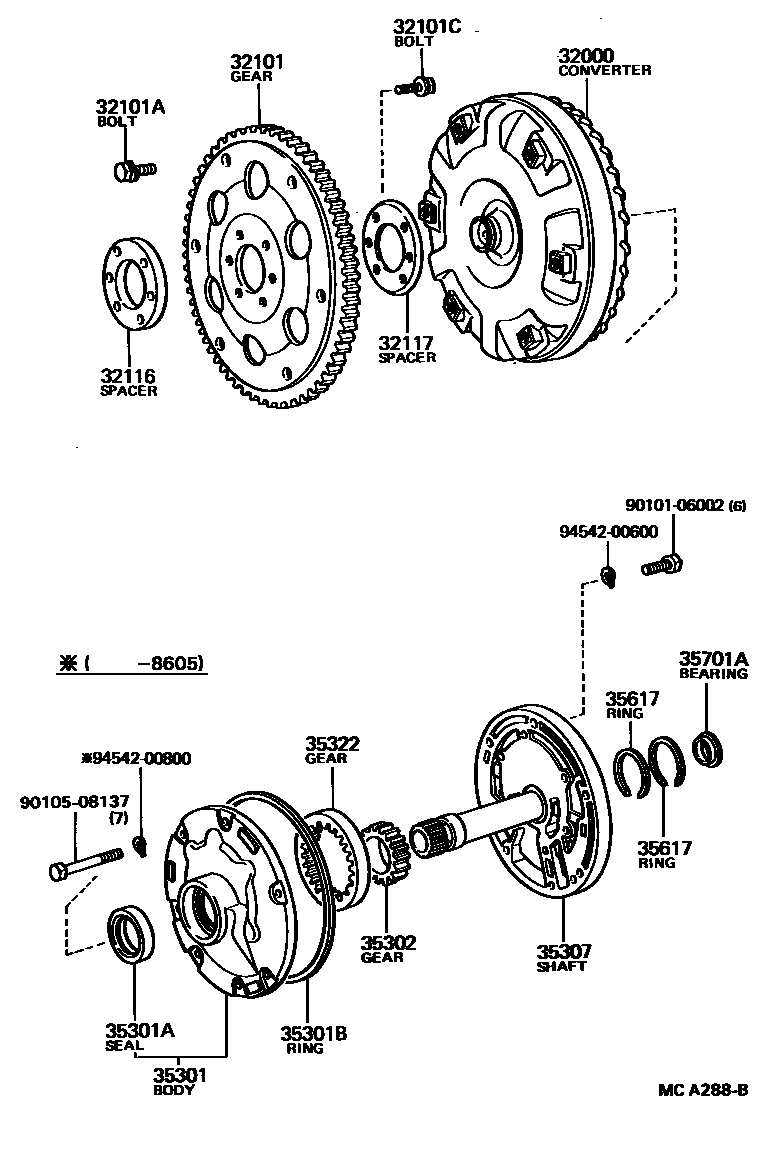

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35307SHAFT SUB-ASSY, STATOR
35322GEAR, FRONT OIL PUMP DRIVEN
35617RING, CLUTCH DRUM OIL SEAL
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
9010106002
main90101-06002
9010508137
main90105-08137
9454200600
main94542-00600
9454200800
main94542-00800
18 parts on this diagram · 2 diagrams in section
