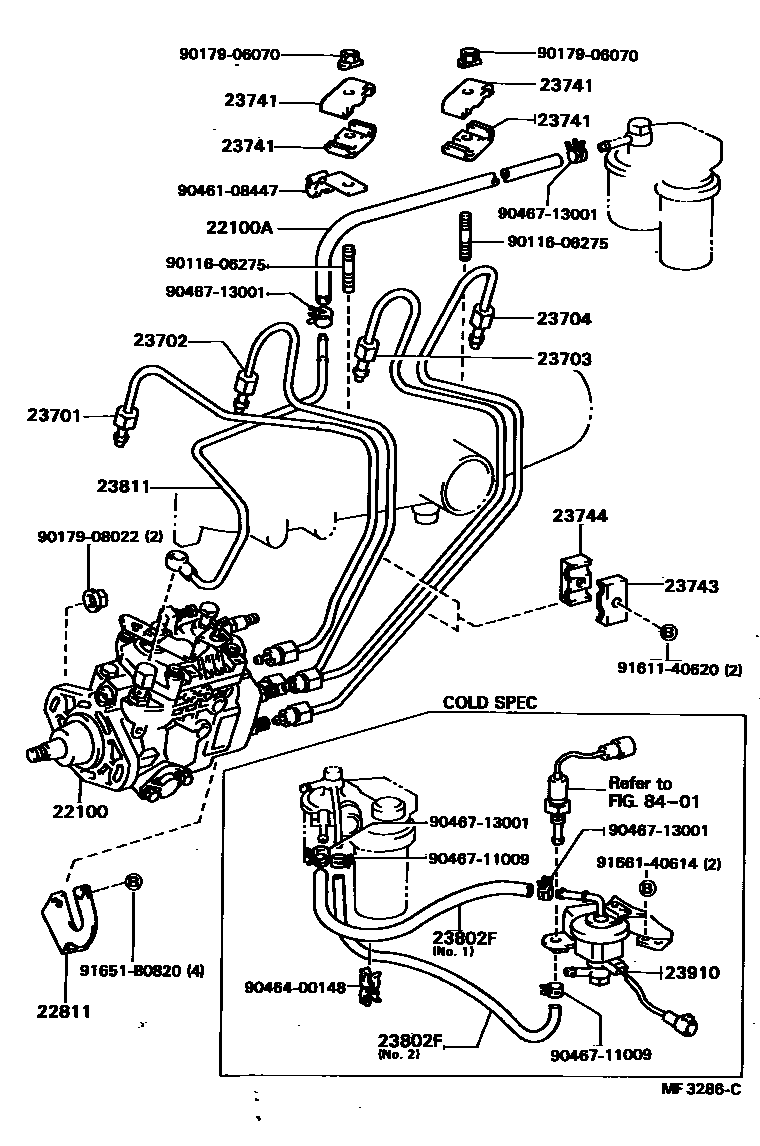

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54131iL..LN55198311-198406

sub22100-54132

sub90099-05166

main22100-54132iL..LN50,55198406-198508

sub22100-54231

main22100-54261i2LT..LN60198411-198504

sub22100-54262

sub82711-24010

main22100-54262i2LT..LN60,61198504-198607

main22100-54263i2LT..LN61198607-198903

main22100-54310i2L..LN65..DLX198311-198607

sub22100-54340

main22100-54311i2L..LN65..DLX198607-198808

sub22100-54341

main22100-54340i2L..LN6#..SR198311-198607

main22100-54341i2L..LN6#..SR198607-198903

main22100-54370i2L..LN56..4FC198311-198607

sub22100-54380

main22100-54371i2L..LN56..4FC198607-198808

sub22100-54381

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08040iL,2L#..LN5#,6#198311-198702

sub95333-08040

main95333-08040i2L#..LN5#,6#198702-198903

sub95337-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54040iL,2L#..LN5#,6#198311-198808

sub22811-54041

main22811-54041i2L#..LN61198808-198903

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL,2L..LN5#,6#198311-198311

main23701-54082iL,2L#..LN5#,6#198311-198903

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL,2L..LN5#,6#198311-198311

main23702-54081iL,2L#..LN5#,6#198311-198903

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL,2L..LN5#,6#198311-198903

main23703-54082i2LT..LN60,61198411-198903

sub23703-54072

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL,2L..LN5#,6#198311-198903

main23704-54072i2LT..LN61198901-198903

main23704-54082i2LT..LN60,61198411-198901

sub23704-54072

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL,2L#..LN5#,6#198311-198903

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL,2L#..LN5#,6#198311-198903

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL,2L#..LN5#,6#198311-198903

23802FHOSE, FUEL

main95332-06030iL,2L..LN5#,6#198311-198405

COLD SPEC,NO.2,*H,L=260

sub95333-06030

main95332-06030iL,2L..LN5#,6#198405-198508

COLD SPEC,NO.2,*H,L=240

sub95333-06030

main95332-08020iL,2L..LN5#,6#198311-198405

COLD SPEC,NO.1,L=200

sub95333-08020

main95332-08030iL,2L..LN5#,6#198405-198508

COLD SPEC,NO.1,L=220

sub95333-08030

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54051iL,2L..LN5#,6#198311-198903

main23811-54090i2LT..LN60,61198411-198903

23910HEATER ASSY, FUEL

main23910-54030iL,2L..LN5#,6#198311-198508

COLD SPEC

8401

9011606275

main90116-06275

9017906070

main90179-06070

9017908022

main90179-08022

9046108447

main90461-08447

9046400148

main90464-00148

9046711009

main90467-11009

9046713001

main90467-13001

9161140620

main91611-40620

91651B0820

main91651-B0820

9166140614

main91661-40614

24 parts on this diagram · 2 diagrams in section
