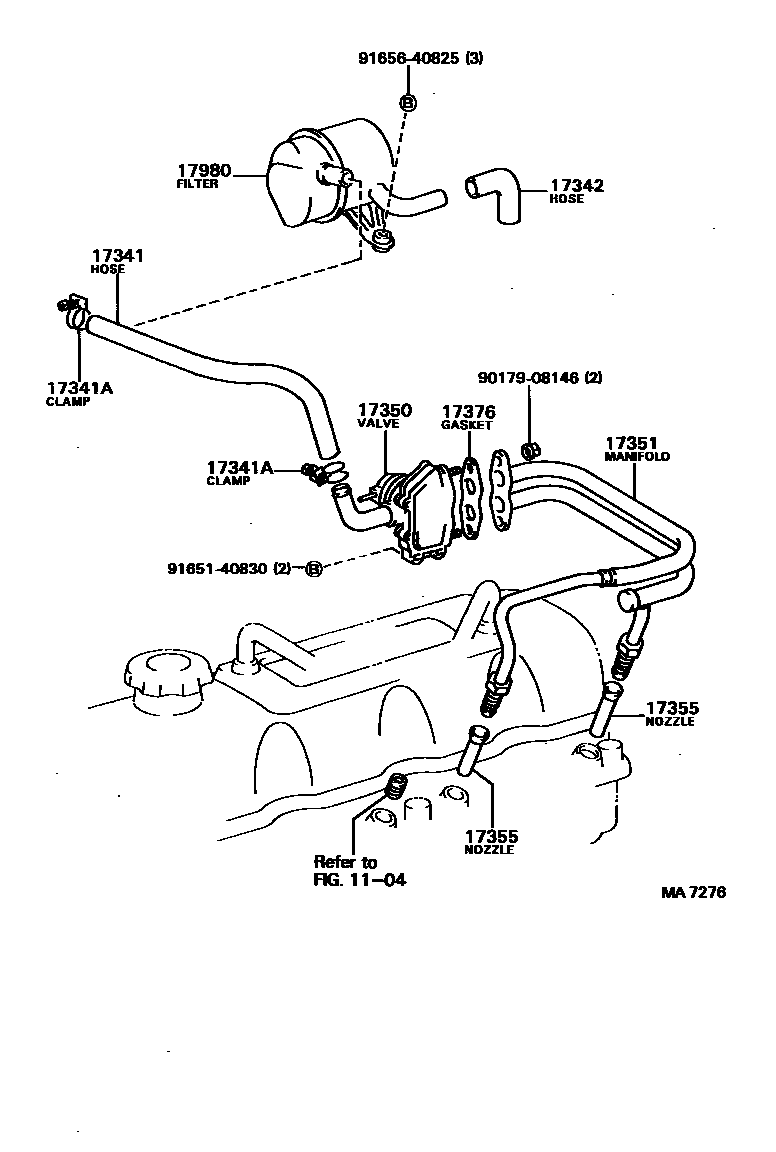

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-71020i2YJ,3YJ..YN5#,6#198311-198608

main17341-73030i2YJ,3YJ..YN5#,6#198608-198903

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26002×2i2YJ,3YJ..YN5#,6#198608-198903

main96111-10300×2i2YJ,3YJ..YN5#,6#198311-198608

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-71010i2YJ,3YJ..YN5#,6#198311-198608

main17342-73010i2YJ,3YJ..YN5#,6#198608-198903

17350VALVE ASSY, REED

main17350-71040i2YJ,3YJ..YN5#,6#198311-198608

main17350-72010i2YJ,3YJ..YN5#,6#198608-198903

17351MANIFOLD, AIR INJECTION

main17306-71010i2YJ,3YJ..YN5#,6#198311-198608

main17306-73011i2YJ,3YJ..YN5#,6#198608-198903

17355NOZZLE, AIR INJECTION

main17355-71010×3i2YJ,3YJ..YN5#,6#198311-198903

17376GASKET, AIR TUBE, NO.1

main17376-71010i2YJ,3YJ..YN5#,6#198311-198903

17980FILTER ASSY, AIR SUCTION

main17980-71020i2YJ,3YJ..YN5#,6#198311-198608

main17980-73010i2YJ,3YJ..YN5#,6#198608-198903

9017908146

main90179-08146

9165140830

main91651-40830

9165640825

main91656-40825

12 parts on this diagram · 2 diagrams in section
