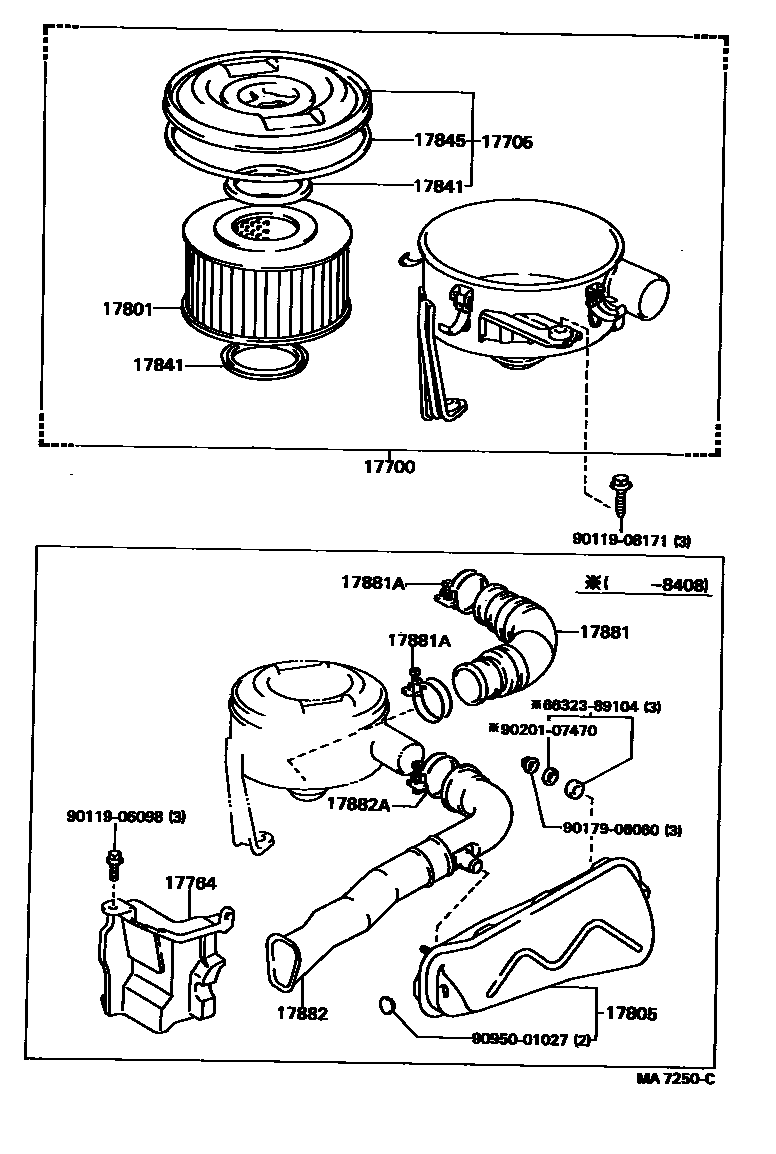

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17700CLEANER ASSY, AIR

main17700-35240i3YEU..YN61198608-198903

main17700-54180iL,2L..LN5#,6#198311-198903

sub17700-54300

main17700-54300iL,2L..LN5#,6#198311-198508

COLD SPEC

main17700-54330i2LT..LN61198411-198903

sub17700-54331

main17700-54331i2LT..LN60,61198506-198511

main17700-71040i2YJ,3YJ..YN5#,6#198311-198608

sub17700-71041

main17700-71041i2YJ,3YJ..YN5#,6#198608-198903

main17700-73060i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

17705CAP SUB-ASSY, AIR CLEANER

main17705-35140i3YEU..YN61198608-198903

main17705-54032iL,2L..LN5#,6#198311-198903

main17705-54120i2LT..LN60,61198411-198903

main17705-71020i2YJ,3YJ..YN5#,6#198311-198903

sub17705-73080

17764DUCT, AIR CLEANER

main53207-89104iL,2L#..LN5#,6#198311-198903

main53207-89105iL,2L#..LN5#,6#198311-198903

COLD SPEC

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31050i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17801-34060i2YJ,3YJ..YN5#,6#198311-198903

main17801-54030iL,2L..LN5#,6#198311-198903

main17801-54060i2LT..LN60,61198411-198903

main17801-70010i3YEU..YN61198608-198903

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-73040i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

sub17805-73041

main17805-89104iL,2L..LN5#,6#198311-198411

main17805-89105iL,2L#..LN5#,6#198411-198903

17841GASKET, FILTER ELEMENT

main17841-54010iL,2L..LN5#,6#198311-198903

17845GASKET, AIR CLEANER CAP

main17845-54010iL,2L..LN5#,6#198311-198903

17881HOSE, AIR CLEANER, NO.1

main17349-54010i2LT..LN60,61198411-198903

main17881-16210i3YJ..YN61198808-198903

main17881-34071i2YJ,3YJ..YN5#,6#198311-198502

sub17881-16210

main17881-54190iL,2L..LN5#,6#198311-198903

main17881-70010i3YEU..YN61198608-198903

main17881-73060i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main17881-74040i2YJ,3YJ..YN5#,6#198502-198808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-65004i2LT..LN61198708-198903

sub90460-65002

main96111-10460i2YJ,3YJ..YN5#,6#198311-198903

main96111-10630i2LT..LN60,61198411-198708

main96111-10690iL,2L..LN5#,6#198311-198903

main96111-10710i3YEU..YN61198608-198903

main96111-10730i2YJ..YN56..LPG198411-198808

CONNECTOR SIDE,LPG PACKAGE,3YP

main96111-10800i2YJ..YN56..LPG198411-198808

AIR CLEANER SIDE,LPG PACKAGE,3YP

17882HOSE, AIR CLEANER, NO.2

main17880-89101iL,2L..LN5#,6#198311-198903

main17882-54150i2LT..LN60,61198411-198903

main17882-70010i3YEU..YN61198608-198903

main17882-89109i2YJ,3YJ..YN5#,6#198311-198903

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01032i2YJ,3YJ..YN5#,6#198311-198803

sub90460-01053

main90460-01053i2YJ,3YJ..YN5#,6#198803-198903

main96111-10690iL,2L#..LN5#,6#198311-198903

main96111-10710i3YEU..YN61198608-198903

PIPE SIDE

main96111-10800i3YEU..YN61198608-198903

AIR CLEANER SIDE

6632389104SPACER, GAGE RUBBER BUMPER

main66323-89104

9011906098

main90119-06098

9011908171

main90119-08171

9017906060

main90179-06060

9020107470

main90201-07470

9095001027

main90950-01027

17 parts on this diagram · 5 diagrams in section
