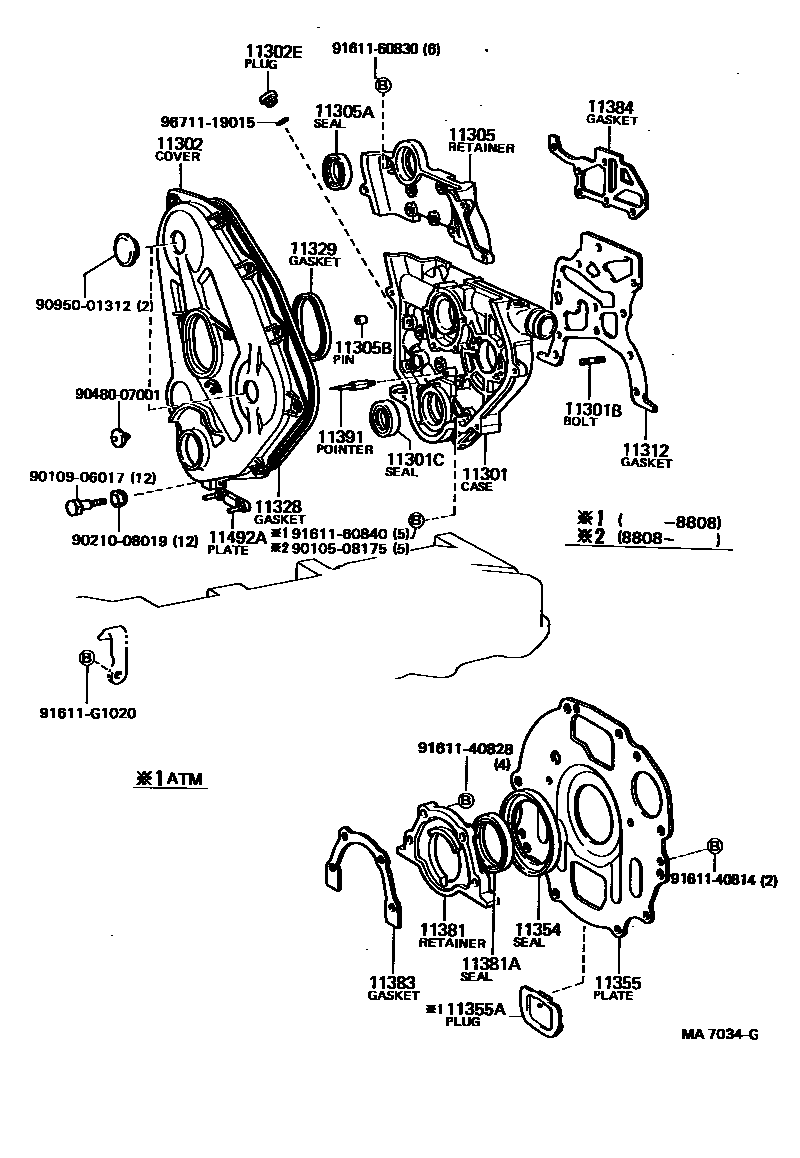

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main11301-71010i2YJ,3Y#..YN5#,6#198311-198903

main11311-54022iL,2L#..LN5#,6#198311-198903

main13015-71060i2YJ..YN56..LPG198707-198808

O/S 1.00,LPG PACKAGE,3YP

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828iL,2L#..LN5#,6#198311-198903

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003iL,2L..LN5#,6#198311-198406

main90311-42012iL,2L#..LN5#,6#198406-198903

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54014iL,2L#..LN5#,6#198311-198903

main11321-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main11321-71010i2YJ,3Y#..YN5#,6#198311-198903

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004iL,2L#..LN5#,6#198311-198903

11305RETAINER, OIL SEAL, NO.2

main11382-54010iL,2L#..LN5#,6#198311-198903

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-42003iL,2L#..LN5#,6#198311-198903

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main16159-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main16159-71010i2YJ,3Y#..YN5#,6#198311-198903

main90253-11001iL,2L#..LN5#,6#198311-198903

OD=11

11312GASKET, FRONT END PLATE

main11312-54013iL,2L#..LN5#,6#198311-198903

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54010iL,2L#..LN5#,6#198311-198903

main11328-71010i2YJ..YN56..LPG198411-198712

LPG PACKAGE,3YP

main11328-71010i2YJ,3Y#..YN5#,6#198311-198712

main11328-71011i2YJ..YN56..LPG198712-198808

LPG PACKAGE,3YP

main11328-71011i2YJ,3Y#..YN5#,6#198712-198903

11329GASKET, TIMING GEAR REAR COVER

main11329-54011iL,2L#..LN5#,6#198311-198903

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010iL,2L#..LN5#,6#198311-198903

main11354-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main11354-71010i2YJ,3Y#..YN5#,6#198311-198903

11355PLATE, REAR END

main11355-54030iL,2L#..LN50,55,6#198311-198808

main11355-54040i2L..LN56..4FC198311-198808

main11355-54070i2L#..LN6#198508-198903

main11355-71010i2YJ,3Y#..YN5#,6#..MTM198311-198903

main11355-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main11355-71021i3YEU..YN61..4FC198608-198903

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i2L..LN56..4FC198311-198808

main90950-01307i3YEU..YN61..4FC198608-198903

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54010iL,2L#..LN5#,6#198311-198808

main11381-54020i2L#..LN61198808-198903

main11381-71010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main11381-71010i2YJ,3Y#..YN5#,6#198311-198903

11381ASEAL, ENGINE REAR OIL

main90311-80003i2YJ,3Y#..YN5#,6#198311-198903

main90311-80003i2YJ..YN56..LPG198411-198611

LPG PACKAGE,3YP

main90311-80008i2YJ..YN56..LPG198611-198808

LPG PACKAGE,3YP

main90311-85001iL,2L..LN5#,6#198311-198402

HTC 85 105 13

main90311-85003iL,2L#..LN5#,6#198402-198608

HTC 85 105 10

main90311-85004i2L#..LN5#,6#198608-198903

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2YJ..YN56..LPG198411-198808

LPG PACKAGE,3YP

main11383-25010i2YJ,3Y#..YN5#,6#198311-198903

main11383-54010iL,2L#..LN5#,6#198311-198808

main11383-54020i2L#..LN61198808-198903

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010iL,2L#..LN5#,6#198311-198903

11391POINTER, TIMING

main11391-54010iL,2L#..LN5#,6#198311-198903

11492APLATE, WATER SEAL

main11492-54010iL,2L#..LN5#,6#198311-198903

9010508175

main90105-08175

9010906017

main90109-06017

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161140814

main91611-40814

9161140828

main91611-40828

9161160830

main91611-60830

9161160840

main91611-60840

91611G1020

main91611-G1020

9671119015

main96711-19015

31 parts on this diagram · 2 diagrams in section
