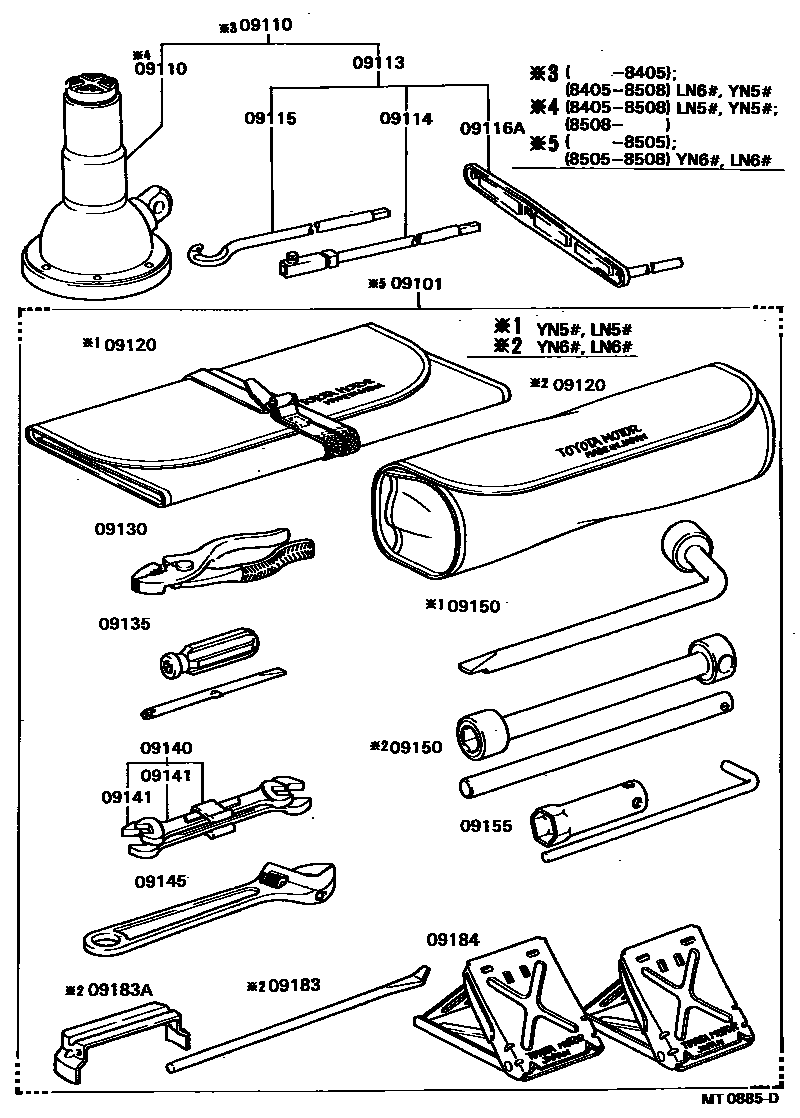

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-26160iLN5#198311-198505

main09101-26163iYN5#198311-198505

main09101-35250iLN6#198311-198404

main09101-35251iYN6#198311-198404

main09101-35252iLN6#198311-198404

TIRE SIZE 215R15-6PR

main09101-35253iYN6#198311-198404

TIRE SIZE 215R15-6PR

main09101-35280iYN6#198404-198508

main09101-35290iLN6#198404-198508

09110JACK ASSY

main09110-35091iLN5#,YN56198311-198405

main09110-35121iLN6#,YN6#198311-198508

main09111-35071iLN5#,YN5#..T1,T3,TW198405-198808

main09111-35110iLN6#,YN6#198508-198808

main09111-35130iLN56,YN56..SJL198701-198808

main09111-89101iLN61,YN61198808-198903

09113HANDLE, JACK

main09113-35070iLN5#,YN5#198311-198508

main09113-35110iLN6#,YN6#198311-198508

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35020iLN6#,YN6#198508-198604

main09114-35030iLN5#,YN5#198508-198605

main09114-35031iLN5#,YN5#198605-198808

main09114-60050iLN6#,YN6#198604-198903

09115ROD SUB-ASSY, JACK HANDLE

main09115-35030iLN5#,YN5#198508-198601

main09115-35040iLN6#,YN6#198508-198601

main09115-35080iLN6#,YN6#198601-198903

main09115-35090iLN5#,YN5#198601-198808

09116ALEVER, JACK HANDLE

main09116-35030iLN5#,YN5#198508-198605

main09116-35031iLN5#,YN5#198605-198808

main09116-35041iLN6#,YN6#198508-198903

09120BAG, TOOL

main09120-26021iLN5#,YN5#198311-198808

main09120-35050iLN6#,YN6#198404-198903

main09120-36030iLN6#,YN6#198311-198404

09130PLIERS

main99913-11500iLN5#,6#,YN5#,6#198311-198903

09135DRIVER, SCREW

main99915-10700iLN5#,6#,YN5#,6#198311-198903

09140SPANNER SET

main09140-27010iLN5#,6#,YN5#,6#198311-198808

09141SPANNER

main99914-11012iLN5#,6#,YN5#,6#198311-198903

main99914-11417iLN5#,6#,YN5#,6#198311-198903

09145WRENCH, MONKEY

main99911-10200iLN5#,6#,YN5#,6#198311-198605

main99911-11200iLN5#,6#,YN5#,6#198605-198903

09150WRENCH, HUB NUT BOX

main09150-35020iLN5#,YN5#198311-198808

main09150-60010iLN6#,YN6#198311-198903

09155WRENCH, SPARK PLUG

main09155-41010iYN5#,6#198311-198903

09183WRENCH, WHEEL CAP

main09183-00030iLN6#,YN6#198311-198903

09183AREPLACER, WHEEL CAP

main09183-35010iLN61,YN61198512-198903

main09183-60010iLN6#,YN6#198311-198404

TIRE SIZE 215R14-6PR

09184STOPPER, WHEEL

main09184-00010×2iLN5#,YN5#198311-198808

main09184-00031×2iLN6#,YN6#198311-198903

17 parts on this diagram · 1 diagram in section
