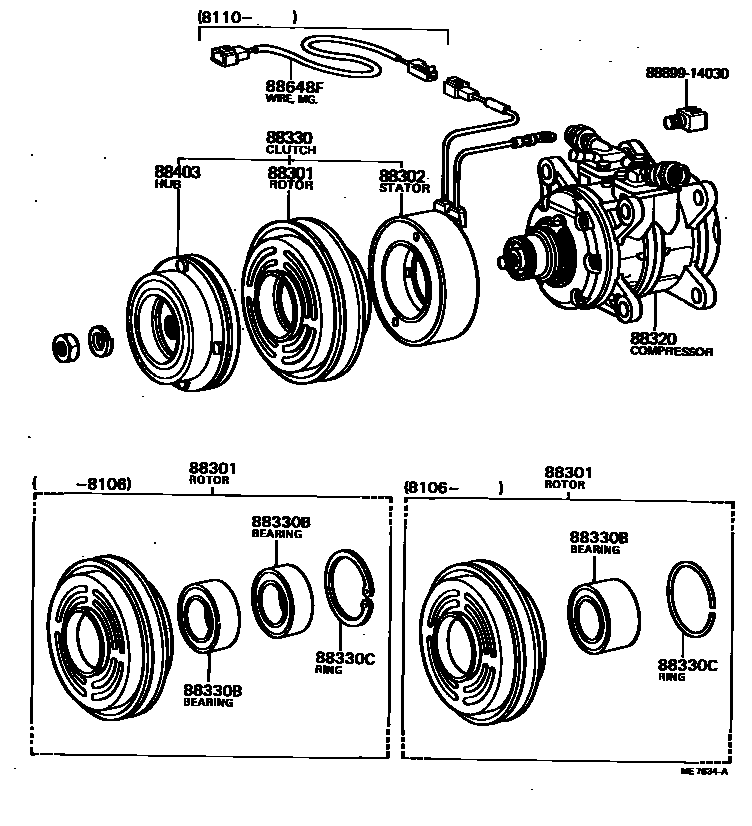

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12040iLN30,40,RN3#,4#197808-198106

main88412-14010iLN3#,4#,RN3#,4#198106-198809

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLN3#,4#,RN3#,4#198106-198809

main88411-22040iLN30,40,RN3#,4#197808-198106

88320COMPRESSOR ASSY, COOLER

main88320-35010iRN30,33,4#197808-198110

main88320-35011iRN35,45198110-198809

main88320-35030iLN30,40197912-198011

main88320-35050iRN36197910-198102

main88320-35061iLN3#,4#,RN39198110-198809

main88320-35080iLN30,40198011-198110

main88320-35100iRN36198102-198110

88330CLUTCH ASSY, MAGNET

main88410-14090iLN3#,4#,RN3#,4#198106-198809

main88410-22060iLN30,40,RN3#,4#197808-198106

88330BBEARING, MAGNET CLUTCH

main90099-10117×2iLN30,40,RN3#,4#197808-198106

main90099-10133iLN3#,4#,RN3#,4#198106-198809

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iLN30,40,RN3#,4#197808-198106

main90099-07114iLN3#,4#,RN3#,4#198106-198809

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iLN3#,4#,RN3#,4#198106-198809

main88403-26030iLN30,40,RN3#,4#197808-198106

88648FWIRE, MAGNET CLUTCH

main88648-89107iRN3#,45198110-198809

8889914030COVER, EVAPORATOR

main88899-14030

9 parts on this diagram · 3 diagrams in section
