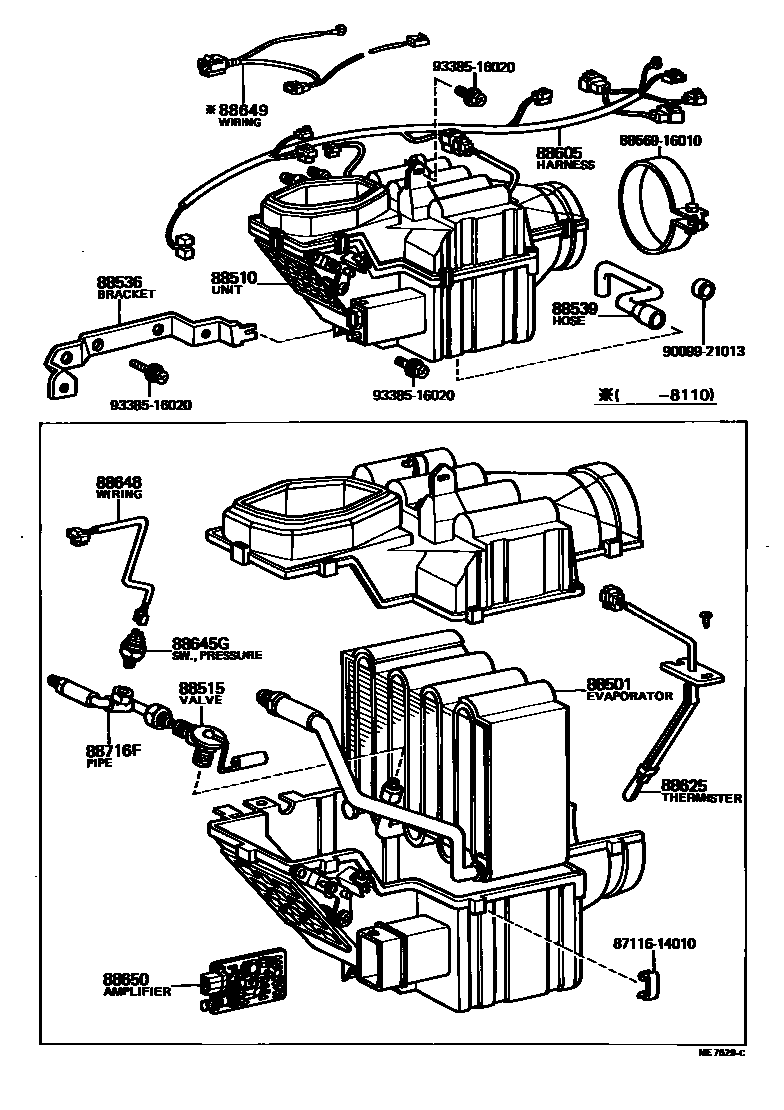

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-89101iLN30,40,RN3#,4#197808-198110

main88501-89103iLN3#,4#,RN3#,45198110-198601

main88501-89108iLN41,RN35,45198601-198809

88510UNIT ASSY, COOLER

main88510-89109iLN30,40,RN33,43198102-198110

main88510-89111iLN30,40,RN33,43; RN36198102-198110

OKINAWA SPEC

main88510-89114iRN3#,45198110-198809

88515VALVE, COOLER EXPANSION

main88515-20040iLN3#,4#,RN3#,4#197808-198809

88536BRACKET, COOLING UNIT, NO.1

main88536-89120iLN3#,4#,RN3#,4#197808-198809

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-89101iLN3#,4#,RN3#,4#197808-198809

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-89110iRN3#,4#197808-198110

main88605-89114iLN30,40197912-198110

main88605-89117iRN3#,45198110-198809

main88605-89120iLN3#,4#198110-198809

88625THERMISTOR, COOLER, NO.1

main88626-89101iLN3#,4#,RN3#,4#197808-198809

88645GSWITCH, PRESSURE

main88645-22010iLN3#,4#,RN30,33,36,40,43197808-198508

main88645-22020iRN3#,45198110-198809

88648WIRING, COOLER, NO.1

main88648-10070iLN3#,4#,RN3#,45198110-198809

main88648-12110iLN30,40,RN3#,4#197808-198110

88649WIRING, COOLER, NO.2

main88648-89103iLN30,40197912-198110

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-16010iRN3#,45198110-198809

main88650-20100iLN3#,4#,RN30,33,36,40,43197808-198508

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-89124iLN3#,4#,RN3#,4#197808-198809

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856916010CLAMP (FOR COOLER RELAY)

main88569-16010

9009921013

main90099-21013

9338516020

main93385-16020

16 parts on this diagram · 1 diagram in section
