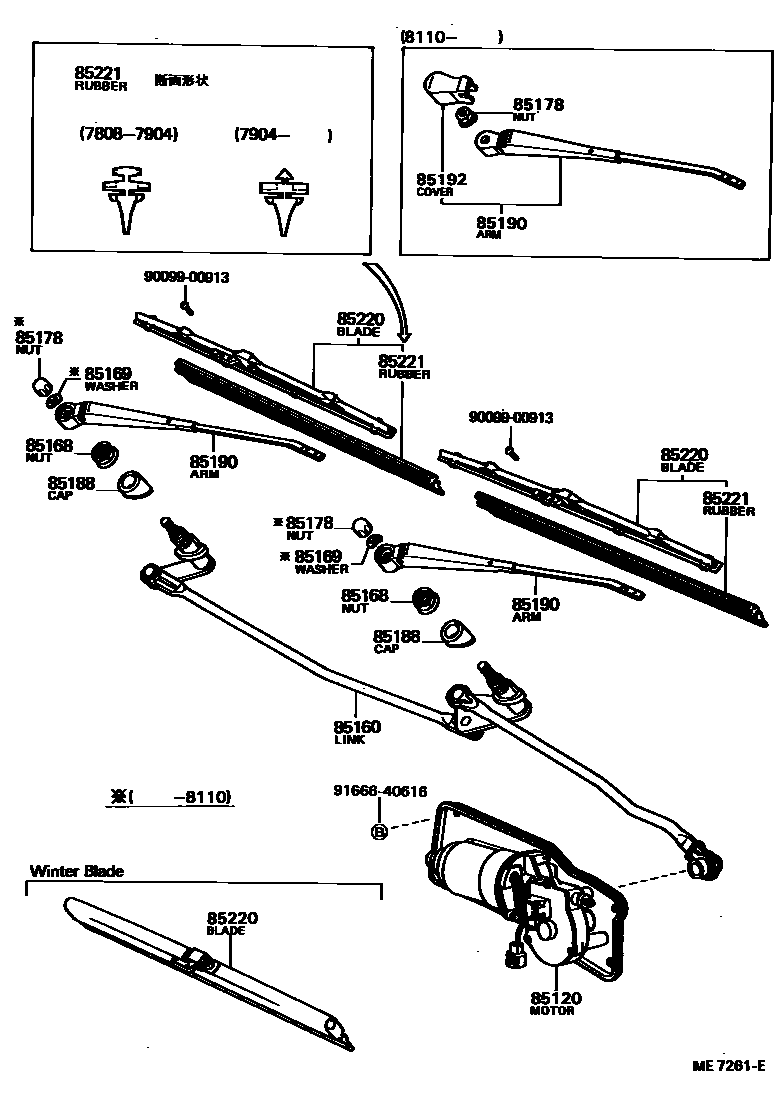

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-89117iLN3#,4#,RN3#,4#197808-198809

12V

main85120-89118iLN36,46,RN3#,4#197808-198809

12V COLD SPEC

main85120-89120iLN30,40197912-198110

24V

85160LINK ASSY, WINDSHIELD WIPER

main85160-89119iLN3#,4#,RN3#,4#197808-198809

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-12170×2iRN30,40197808-197904

main85186-12171×2iLN3#,4#,RN3#,4#197904-198809

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main90206-08002×2iLN30,40,RN3#,4#197808-198110

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08019×2iLN30,40,RN3#,4#197808-198110

main90179-08015×2iLN3#,4#,RN3#,45198110-198306

main90179-08026×2iLN30,40,41,RN35,45198306-198809

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85179-89102×2iLN3#,4#,RN3#,4#197808-198809

85190ARM ASSY, WINDSHIELD WIPER

main85190-89117×2iLN30,40,RN3#,4#197808-198110

main85190-89122×2iLN3#,4#,RN3#,45198110-198809

85192COVER, WINDSHIELD WIPER ARM

main85192-12010×2iLN3#,4#,RN3#,45198110-198809

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14170iLN41,RN35,45198607-198809

WINTER BRADE

main85220-22081×2iLN30,40,RN3#,4#197808-198110

main85220-30110×2iLN3#,4#,RN3#,45198110-198607

WINTER BLADE

main85220-89105×2iLN3#,4#,RN3#,45198110-198809

85221BLADE, WINDSHIELD WIPER

main85221-12070×2iLN30,40,RN3#,4#197904-198110

main85221-30071×2iRN30,40197808-197904

main85221-89101×2iLN3#,4#,RN3#,45198110-198809

9009900913

main90099-00913

9166640616

main91666-40616

12 parts on this diagram · 1 diagram in section
