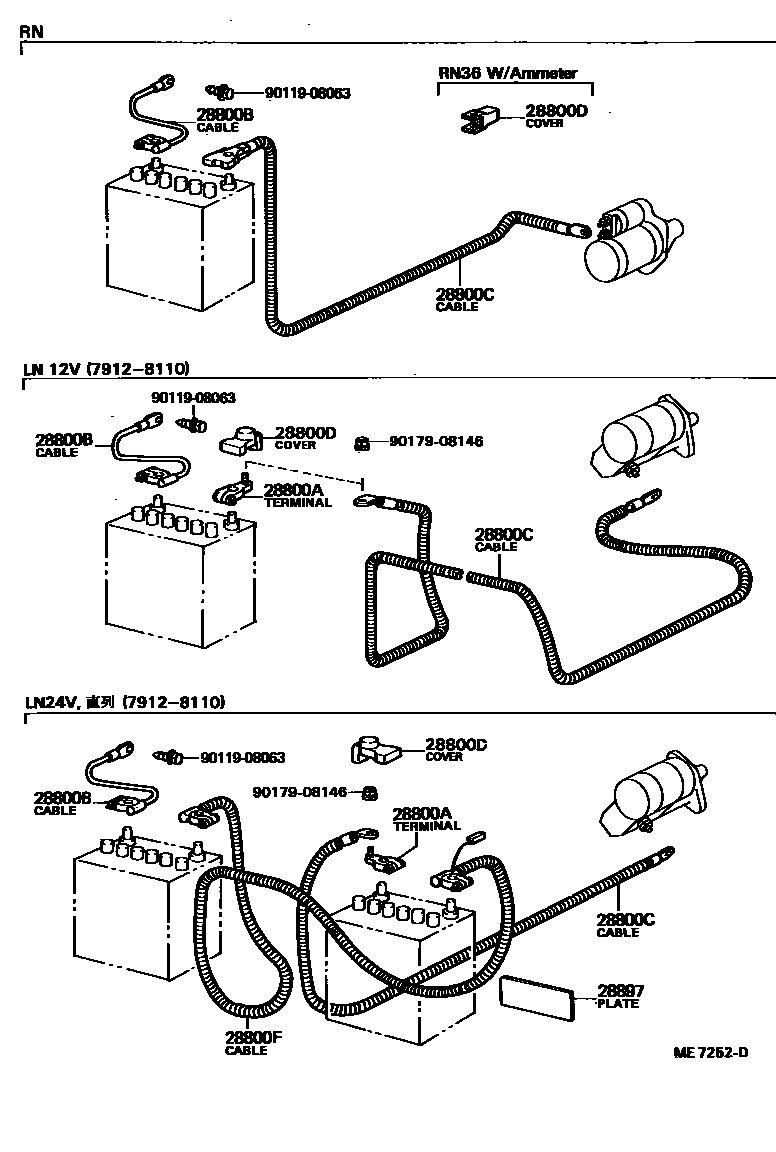

Toyota HILUX — BATTERY & BATTERY CABLE
28800ATERMINAL, BATTERY POSITIVE
28800BCABLE, BATTERY TO GROUND
28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28800FCABLE, BATTERY TO BATTERY
9011908063
9017908146
8 parts on this diagram · 2 diagrams in section
BATTERY & BATTERY CABLE for Toyota HILUX
This section contains 15 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota HILUX. Key components include: TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH), COVER, CONNECTOR(FOR BATTERY TERMINAL), CABLE, BATTERY TO BATTERY.
