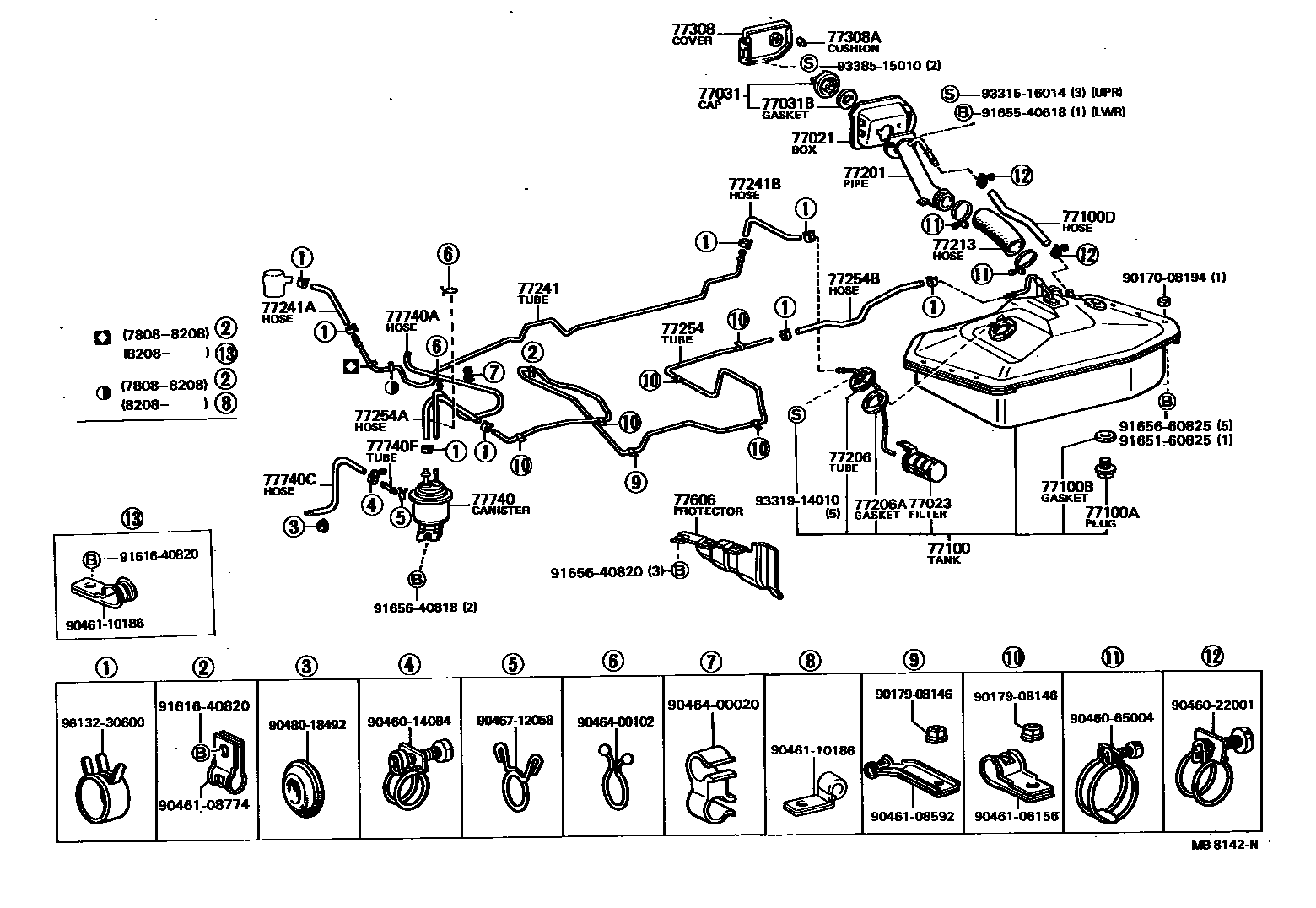

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77021BOX ASSY, FUEL TANK INLET

main65507-89108iLN3#,4#,RN3#,4#..CBU197808-198809

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRN3#,4#198008-198809

main77023-22040iLN3#,4#198111-198809

77031CAP ASSY, FUEL TANK

main77310-12090iRN3#,43198009-198110

main77310-12100iRN3#,45..CBU198110-198809

main77310-14070iLN30,40,RN3#,4#197808-198008

main77310-35060iLN30,40198009-198110

main77310-35061iLN3#,4#..CBU198110-198809

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iLN30,40,RN3#,4#197808-198110

77100TANK ASSY, FUEL

main77100-35080iRN3#197808-198608

main77100-35081iRN35198608-198809

main77100-35090iRN4#..T1197808-198608

main77100-35091iRN45198608-198809

main77100-35140iRN45..TW198110-198310

main77100-35150iLN3#197912-198111

main77100-35151iLN3#198111-198310

main77100-35160iLN40..T1197912-198111

main77100-35161iLN40,41..T1198111-198608

main77100-35162iLN41198608-198809

main77100-35170iLN40..TW198110-198111

main77100-35171iLN40..TW198111-198310

main77100-35190iLN46..T1198110-198111

main77100-35191iLN46..T1198111-198310

main77100-35200iLN46..TW198110-198111

main77100-35201iLN46..TW198111-198310

77100APLUG(FOR FUEL TANK)

main90105-12018iLN3#,4#,RN3#,4#197808-198809

77100BGASKET(FOR FUEL TANK)

main90430-12245iLN3#,4#,RN3#,4#197808-198809

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-21883iLN3#,4#,RN3#,4#197808-198809

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35100iLN30,40,RN3#,4#197808-198008

main77201-35101iLN3#,4#,RN3#,4#..T1198008-198809

main77201-35141iLN4#,RN45..TW198110-198310

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-35071iRN3#198008-198809

main77203-35081iRN4#198008-198809

main77203-35150iLN46..T1198110-198111

main77203-35160iLN3#198111-198310

main77203-35170iLN46..TW198111-198310

main77203-35180iLN46..T1198111-198310

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main83361-20030iLN3#,4#,RN3#,4#198008-198809

77213HOSE, FUEL TANK SUB INLET

main77213-35030iLN3#,4#,RN3#,4#197808-198809

main77213-35070iLN4#,RN45..TW198110-198310

77241TUBE, FUEL MAIN, NO.1

main77251-35060iRN30,33197808-198008

main77251-35070iRN4#197808-198008

main77251-35081iRN36197910-198008

main77251-35111iRN45..TW198110-198208

main77251-35112iRN45..TW198208-198310

main77251-35120iRN33,35198008-198208

main77251-35121iRN35198603-198809

main77251-35130iRN4#..T1198008-198208

main77251-35131iRN45198603-198809

main77251-35142iRN36,39198008-198310

main77251-35160iLN30,40197912-198008

main77251-35161iLN30,40,41..T1198008-198809

main77251-35171iLN40..TW198110-198310

main77251-35200iLN36,46..T1198110-198310

main77251-35210iLN46..TW198110-198310

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06030iRN30,33,35,4#197808-198701

main95332-06040iRN36,39197910-198310

main95332-08030iLN3#,4#197912-198809

main95333-06030iRN35,45198701-198809

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06026iRN40197808-197904

main95332-06030iRN45..TW198110-198310

main95332-08060iLN3#197912-198310

main95332-08080iLN4#197912-198809

main95333-06030iRN35; RN45198701-198809

77254TUBE, FUEL EMISSION, NO.1

main77261-35010iRN30,33,4#197808-198008

main77261-35011iRN33,35,4#198008-198809

main77261-35030iRN36197910-198008

main77261-35031iRN36,39198008-198310

main77261-35070iRN45..TW198110-198310

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06020iRN36,39197910-198310

main95332-06028iRN30,40197808-197904

main95332-06030iRN30,33,35,4#197904-198809

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06055iRN40197808-197904

main95332-06060iRN4#197904-198809

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-89101iLN3#,4#,RN3#,4#..CBU197808-198809

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05080iRN30,40197808-197811

main90541-08003iLN3#,4#,RN3#,4#..CBU197811-198809

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77161-35010iLN3#,4#,RN3#,4#..T1197808-198809

main77161-35040iLN4#,RN45..TW198110-198310

77740CANISTER ASSY, CHARCOAL

main77740-14230iRN36,39197910-198310

main77740-35025iRN30,33,35,4#197808-198809

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-19960iRN36197910-198110

main95411-19995iRN30,33,35,4#197808-198809

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main77754-35060iRN30,33,35,4#197808-198809

L=350

main77754-35080iRN36,39197910-198310

L=150

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77246-35010iRN3#,4#197808-198809

9017008194

main90170-08194

9017908146

main90179-08146

9046014084

main90460-14084

9046022001

main90460-22001

9046065004

main90460-65004

9046106156

main90461-06156

9046108592

main90461-08592

9046108774

main90461-08774

9046110186

main90461-10186

9046400020

main90464-00020

9046400102

main90464-00102

9046712058

main90467-12058

9048018492

main90480-18492

9161640820

main91616-40820

9165160825

main91651-60825

9165540618

main91655-40618

9165640818

main91656-40818

9165640820

main91656-40820

9165660825

main91656-60825

9331516014

main93315-16014

9331914010

main93319-14010

9338515010

main93385-15010

9613230600

main96132-30600

48 parts on this diagram · 3 diagrams in section
