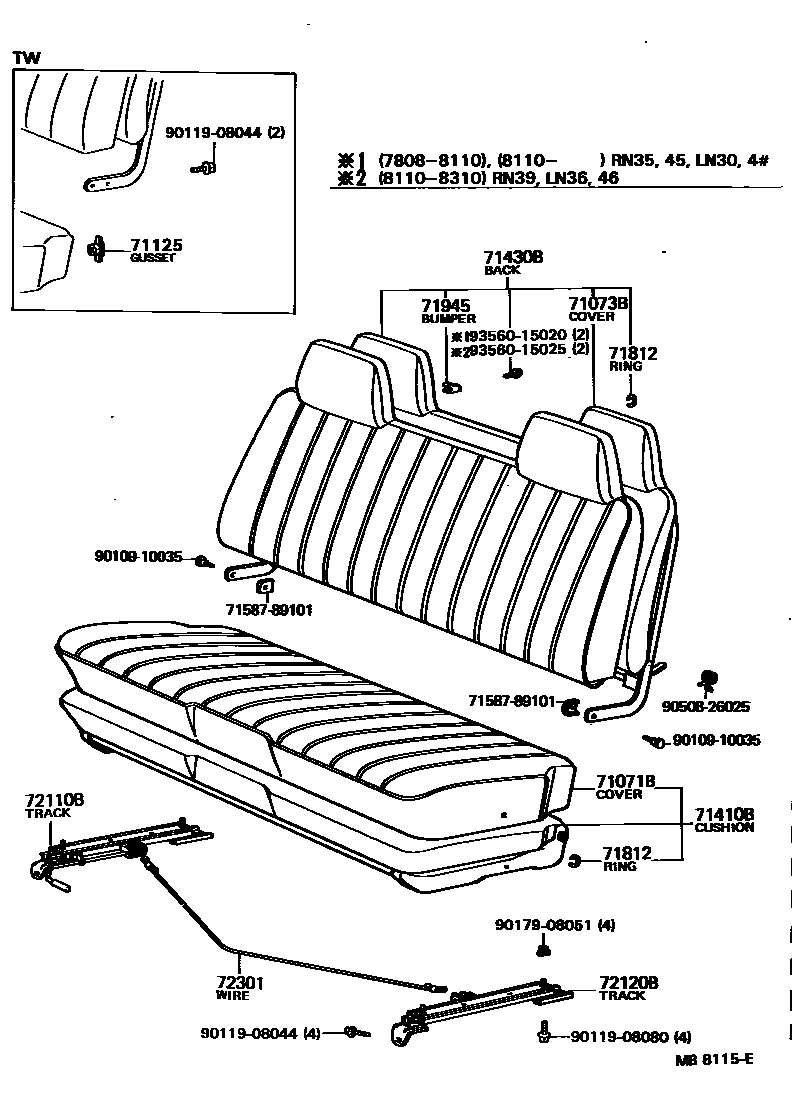

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71071-89149-01iRN30,33,4#..STD197808-198110

VL,BLACK,BLACK,TRIM2#

main71071-89149-04iRN30,33,4#..STD197808-198110

VL,BLUE,BLUE,TRIM8#

main71071-89150-01iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLACK,BLACK,TRIM2#

main71071-89150-04iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLUE,BLUE,TRIM8#

main71071-89150-05iLN30,40,RN30,33,4#..DLX197808-198110

VL,BEIGE,BEIGE,TRIM4#

main71071-89174-01iRN35..STD198110-198809

VL,BLACK,BLACK,TRIM2#

main71071-89174-04iRN35..STD198110-198508

VL,BLUE,BLUE,TRIM8#

main71071-89175-03iLN30,40,RN35,45..T1..DLX198110-198202

PF,GRAY,GRAY,TRIM2#

main71071-89175-04iLN30,40,RN35,45..T1..DLX198110-198202

PF,BLUE,BLUE,TRIM8#

main71071-89175-05iLN30,40,RN35,45..T1..DLX198110-198202

PF,BEIGE,BEIGE,TRIM4#

main71071-89185-03iLN40,RN45..TW198110-198205

PF,GRAY,GRAY,TRIM2#

main71071-89185-04iLN40,RN45..TW198110-198205

PF,BLUE,BLUE,TRIM8#

main71071-89185-05iLN40,RN45..TW198110-198205

PF,BEIGE,BEIGE,TRIM4#

main71071-89193-03iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,GRAY,GRAY,TRIM2#

main71071-89193-04iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,BLUE,BLUE,TRIM8#

main71071-89193-05iLN30,40,RN35,45..T1..DLX198202-198508

PF,BEIGE,BEIGE,TRIM4#

main71071-89203-03iLN40,RN45..TW198205-198310

PF,GRAY,GRAY,TRIM2#

main71071-89203-04iLN40,RN45..TW198205-198310

PF,BLUE,BLUE,TRIM8#

main71071-89203-05iLN40,RN45..TW198205-198310

PF,BEIGE,BEIGE,TRIM4#

main71071-95121-01iRN36197910-198110

PF,BLACK,BLACK,TRIM2#

main71071-95121-05iRN36197910-198110

PF,BEIGE,BEIGE,TRIM4#

main71071-95145-03iLN36,46,RN39..T1198110-198202

PF,GRAY,GRAY,TRIM2#

main71071-95145-05iLN36,46,RN39..T1198110-198310

PF,BEIGE,BEIGE,TRIM4#

main71071-95161-03iLN36,46,RN39..T1198202-198310

PF,GRAY,GRAY,TRIM2#

main71071-95161-05iLN36,46,RN39..T1198202-198310

PF,BEIGE,BEIGE,TRIM4#

71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)

main71073-89163-01iRN30,33,4#..STD197808-198110

VL,BLACK,BLACK,TRIM2#

main71073-89163-04iRN30,33,4#..STD197808-198110

VL,BLUE,BLUE,TRIM8#

main71073-89164-01iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLACK,BLACK,TRIM4#

main71073-89164-04iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLUE,BLUE,TRIM8#

main71073-89164-05iLN30,40,RN30,33,4#..DLX197808-198110

VL,BEIGE,BEIGE,TRIM4#

main71073-89189-03iLN30,40,RN35,45..T1..DLX198110-198202

PF,GRAY,GRAY,TRIM2#

main71073-89189-04iLN30,40,RN35,45..T1..DLX198110-198202

PF,BLUE,BLUE,TRIM8#

main71073-89189-05iLN30,40,RN35,45..T1..DLX198110-198202

PF,BEIGE,BEIGE,TRIM4#

main71073-89192-01iRN35..STD198110-198809

VL,BLACK,BLACK,TRIM2#

main71073-89192-04iRN35..STD198110-198508

VL,BLUE,BLUE,TRIM8#

main71073-89202-03iLN40,RN45..TW198110-198205

PF,GRAY,GRAY,TRIM2#

main71073-89202-04iLN40,RN45..TW198110-198205

PF,BLUE,BLUE,TRIM8#

main71073-89202-05iLN40,RN45..TW198110-198205

PF,BEIGE,BEIGE,TRIM4#

main71073-89210-03iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,GRAY,GRAY,TRIM2#

main71073-89210-04iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,BLUE,BLUE,TRIM8#

main71073-89210-05iLN30,40,RN35,45..T1..DLX198202-198508

PF,BEIGE,BEIGE,TRIM4#

main71073-89220-03iLN40,RN45..TW198205-198310

PF,GRAY,GRAY,TRIM2#

main71073-89220-04iLN40,RN45..TW198205-198310

PF,BLUE,BLUE,TRIM8#

main71073-89220-05iLN40,RN45..TW198205-198310

PF,BEIGE,BEIGE,TRIM4#

main71073-95125-01iRN36197910-198110

PF,BLACK,BLACK,TRIM2#

main71073-95125-05iRN36197910-198110

PF,BEIGE,BEIGE,TRIM4#

main71073-95148-03iLN36,46,RN39..T1198110-198202

PF,GRAY,GRAY,TRIM2#

main71073-95148-05iLN36,46,RN39..T1198110-198202

PF,BEIGE,BEIGE,TRIM4#

main71073-95164-03iLN36,46,RN39..T1198202-198310

PF,GRAY,GRAY,TRIM2#

main71073-95164-05iLN36,46,RN39..T1198202-198310

PF,BEIGE,BEIGE,TRIM4#

71125GUSSET, FRONT SEAT CUSHION FRAME

main71125-89101×2iLN40,RN45..TW198110-198310

71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)

main71410-89134-01iRN30,33,4#..STD197808-198110

VL,BLACK,BLACK,TRIM2#

main71410-89134-04iRN30,33,4#..STD197808-198110

VL,BLUE,BLUE,TRIM8#

main71410-89135-01iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLACK,BLACK,TRIM2#

main71410-89135-04iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLUE,BLUE,TRIM8#

main71410-89135-05iLN30,40,RN30,33,4#..DLX197808-198110

VL,BEIGE,BEIGE,TRIM4#

main71410-89151-01iRN35..STD198110-198809

VL,BLACK,BLACK,TRIM2#

main71410-89151-04iRN35..STD198110-198508

VL,BLUE,BLUE,TRIM2#

main71410-89152-03iLN30,40,RN35,45..T1..DLX198110-198202

PF,GRAY,GRAY,TRIM2#

main71410-89152-04iLN30,40,RN35,45..T1..DLX198110-198202

PF,BLUE,BLUE,TRIM8#

main71410-89152-05iLN30,40,RN35,45..T1..DLX198110-198202

PF,BEIGE,BEIGE,TRIM4#

main71410-89160-03iLN40,RN45..TW198110-198205

PF,GRAY,GRAY,TRIM2#

main71410-89160-04iLN40,RN45..TW198110-198205

PF,BLUE,BLUE,TRIM8#

main71410-89160-05iLN40,RN45..TW198110-198205

PF,BEIGE,BEIGE,TRIM4#

main71410-89175-03iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,GRAY,GRAY,TRIM2#

main71410-89175-04iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,BLUE,BLUE,TRIM8#

main71410-89175-05iLN30,40,RN35,45..T1..DLX198202-198508

PF,BEIGE,BEIGE,TRIM4#

main71410-89176-03iLN40,RN45..TW198205-198310

PF,GRAY,GRAY,TRIM2#

main71410-89176-04iLN40,RN45..TW198205-198310

PF,BLUE,BLUE,TRIM8#

main71410-89176-05iLN40,RN45..TW198205-198310

PF,BEIGE,BEIGE,TRIM4#

main71410-95121-01iRN36197910-198110

PF,BLACK,BLACK,TRIM2#

main71410-95121-05iRN36197910-198110

PF,BEIGE,BEIGE,TRIM4#

main71410-95140-03iLN36,46,RN39..T1198110-198202

PF,GRAY,GRAY,TRIM2#

main71410-95140-05iLN36,46,RN39..T1198110-198202

PF,BEIGE,BEIGE,TRIM4#

main71410-95152-03iLN36,46,RN39..T1198202-198310

PF,GRAY,GRAY,TRIM2#

main71410-95152-05iLN36,46,RN39..T1198202-198310

PF,BEIGE,BEIGE,TRIM4#

71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)

main71430-89130-01iRN30,33,4#..STD197808-198110

VL,BLACK,BLACK,TRIM2#

main71430-89130-04iRN30,33,4#..STD197808-198110

VL,BLUE,BLUE,TRIM8#

main71430-89131-01iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLACK,BLACK,TRIM2#

main71430-89131-04iLN30,40,RN30,33,4#..DLX197808-198110

VL,BLUE,BLUE,TRIM8#

main71430-89131-05iLN30,40,RN30,33,4#..DLX197808-198110

VL,BEIGE,BEIGE,TRIM4#

main71430-89148-01iRN35..STD198110-198809

VL,BLACK,BLACK,TRIM2#

main71430-89148-04iRN35..STD198110-198508

VL,BLUE,BLUE,TRIM8#

main71430-89149-03iLN30,40,RN35,45..T1..DLX198110-198202

PF,GRAY,GRAY,TRIM2#

main71430-89149-04iLN30,40,RN35,45..T1..DLX198110-198202

PF,BLUE,BLUE,TRIM8#

main71430-89149-05iLN30,40,RN35,45..T1..DLX198110-198202

PF,BEIGE,BEIGE,TRIM4#

main71430-89158-03iLN40,RN45..TW198110-198205

PF,GRAY,GRAY,TRIM2#

main71430-89158-04iLN40,RN45..TW198110-198205

PF,BLUE,BLUE,TRIM8#

main71430-89158-05iLN40,RN45..TW198110-198205

PF,BEIGE,BEIGE,TRIM4#

main71430-89174-03iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,GRAY,GRAY,TRIM2#

main71430-89174-04iLN30,40,41,RN35,45..T1..DLX198202-198809

PF,BLUE,BLUE,TRIM8#

main71430-89174-05iLN30,40,RN35,45..T1..DLX198202-198508

PF,BEIGE,BEIGE,TRIM4#

main71430-89175-03iLN40,RN45..TW198205-198310

PF,GRAY,GRAY,TRIM2#

main71430-89175-04iLN40,RN45..TW198205-198310

PF,BLUE,BLUE,TRIM8#

main71430-89175-05iLN40,RN45..TW198205-198310

PF,BEIGE,BEIGE,TRIM4#

main71430-95126-01iRN36197910-198110

PF,BLACK,BLACK,TRIM2#

main71430-95126-05iRN36197910-198110

PF,BEIGE,BEIGE,TRIM4#

main71430-95141-03iLN36,46,RN39..T1198110-198202

PF,GRAY,GRAY,TRIM2#

main71430-95141-05iLN36,46,RN39..T1198110-198202

PF,BEIGE,BEIGE,TRIM4#

main71430-95151-03iLN36,46,RN39..T1198202-198310

PF,GRAY,GRAY,TRIM2#

main71430-95151-05iLN36,46,RN39..T1198202-198310

PF,BEIGE,BEIGE,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071iLN3#,4#,RN3#,4#197808-198809

71945BUMPER, SEATBACK

main71739-89101×2iLN30,40,41,RN33,35,4#..T1..(DLX,STD)198001-198809

main71739-89102iLN40,RN4#..SDX197808-198310

main71739-89103×2iLN36,46,RN36,39..T1198001-198310

main71739-89105×2iLN36,46,RN39..T1198110-198310

SR PACKAGE,SEPARATE SEAT

72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)

main72110-89130iLN30,40,41,RN30,33,35,4#..T1..(DLX,STD)197808-198809

main72110-89135iLN40,RN45..TW;LN40,RN4#..SDX197808-198310

main72110-95110iLN36,46,RN36,39..T1197910-198310

72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)

main72120-89125iLN30,40,41,RN30,33,35,4#..T1..(DLX,STD)197808-198809

main72120-89130iLN40,RN45..TW;LN40,RN4#..SDX197808-198310

main72120-95110iLN36,46,RN36,39..T1197910-198310

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-89103iLN30,40,41,RN30,33,35,4#197808-198809

main72301-95110iLN36,46,RN36,39..T1197910-198310

7158789101PROTECTOR, FRONT SEATBACK EDGE

main71587-89101

9010910035

main90109-10035

9011908044

main90119-08044

9011908080

main90119-08080

9017908051

main90179-08051

9050826025

main90508-26025

9356015020

main93560-15020

9356015025

main93560-15025

18 parts on this diagram · 6 diagrams in section
