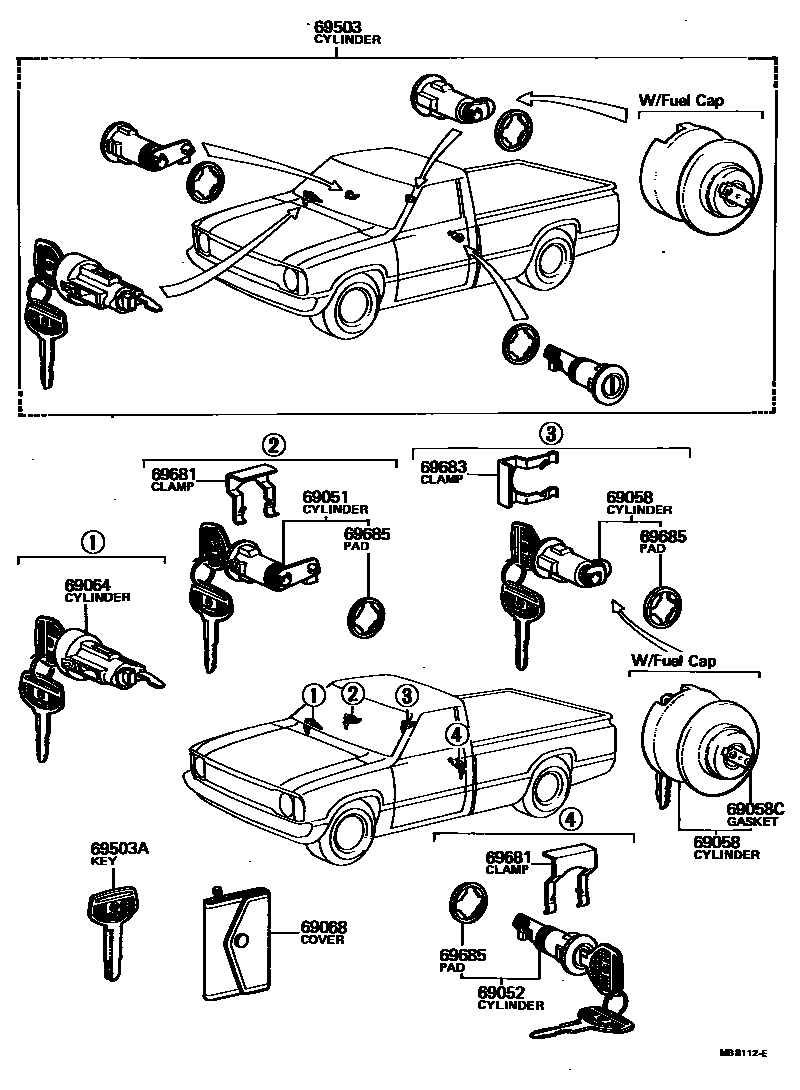

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-89106iLN30,40,RN3#,4#197808-198110

sub69051-19085

main69051-89107iLN3#,4#,RN3#,45198110-198809

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-89106iLN30,40,RN3#,4#197808-198110

sub69052-19085

main69052-89107iLN3#,4#,RN3#,45198110-198809

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-89101iLN3#,4#,RN3#,4#..CBU197808-198809

main69058-89102iLN40,41..IV198011-198809

sub69058-25010

main69058-95400iRN4#..IV197808-198809

sub69058-60071

69058CGASKET, FUEL FILLER LID CYLINDER

main77316-12031iLN40,41,RN4#..IV197808-198809

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12011iLN3#,4#,RN3#,4#197808-198208

W/STEERING LOCK

main69057-14010iLN36,46,RN39198110-198310

W/TILT STEERING

sub69057-22020

main69057-89101iRN30,33,35,40,43..STD197808-198809

W/O STEERING LOCK

main69057-89106iLN3#,4#,RN3#,45198208-198809

W/STEERING LOCK

sub69057-89102

69068COVER SUB-ASSY, KEY

main84041-89102iLN3#,4#,RN3#,4#197808-198809

69503CYLINDER SET, LOCK

main69005-89105iRN30,33,4#..STD..CBU197808-198110

W/O STEERING LOCK

main69005-89106iLN30,40,RN3#,4#..CBU197808-198110

W/STEERING LOCK

main69005-89109iRN43..IV197912-198110

W/O STEERING LOCK

main69005-89110iRN43..IV197912-198110

W/STEERING LOCK

main69005-89113iLN40..IV198011-198110

W/STEERING LOCK

sub69005-89115

main69005-89116iRN35..STD198110-198809

W/O STEERING LOCK

main69005-89117iLN3#,4#,RN3#,45..CBU198110-198809

W/STEERING LOCK

main69005-89119iRN45..IV198110-198809

W/STEERING LOCK

main69005-89126iLN40,41..IV198110-198809

W/STEERING LOCK

main69005-95113iLN36,46,RN39198110-198310

SR PACKAGE,W/TILT STEERING

69503AKEY, BLANK

main90999-00066iLN3#,4#,RN3#,4#197808-198809

sub90999-00085

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20010iRN30,40197808-197907

sub69681-20040

main69681-20040iLN36,46,RN36,39197907-198310

main69681-89102iLN30,40,41,RN33,35,4#198004-198809

69683CLAMP, FUEL LOCK CYLINDER

main69681-20010iRN30,40197808-197907

sub69681-20040

main69681-20040iLN30,40,RN3#,4#197907-198310

main69681-89102iLN30,40,41,RN33,35,4#..CBU198004-198809

69685PAD, LOCK CYLINDER

main69513-12020iLN3#,4#,RN3#,45..CBU198208-198809

FUEL LOCK

main69685-12010iLN3#,4#,RN3#,4#197808-198809

DOOR LOCK

main69685-95400iLN3#,4#,RN3#,4#..CBU197808-198208

FUEL LOCK

11 parts on this diagram · 1 diagram in section
