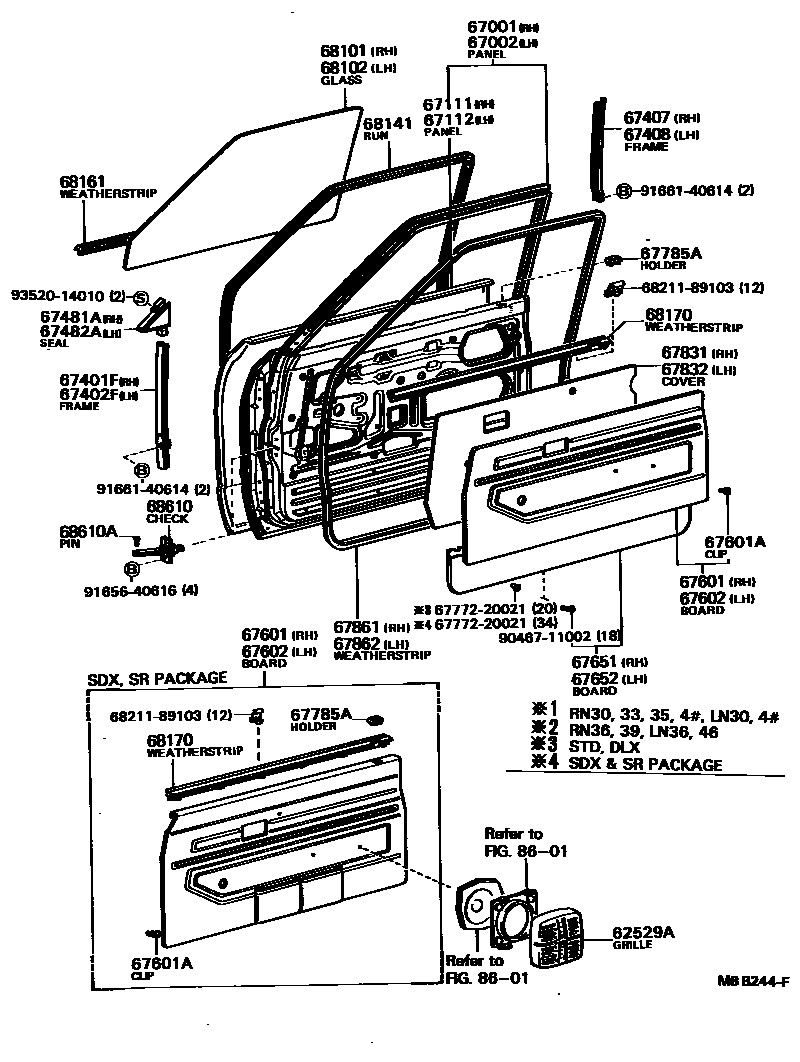

FRONT DOOR PANEL & GLASS

62529AGRILLE, SPEAKER

main62529-89101-01×2iLN3#,4#,RN3#,4#197808-198809

BLACK,BLACK,TRIM2#

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-89113iLN36,46,RN36,39197910-198310

main67001-89114iLN40,RN4#..SDX197808-198310

main67001-89121iLN30,40,41,RN30,33,35,4#..DLX,STD197808-198809

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-89115iLN36,46,RN36,39197910-198310

main67002-89116iLN40,RN4#..SDX197808-198310

main67002-89123iLN30,40,41,RN30,33,35,4#..DLX,STD197808-198809

67111PANEL, FRONT DOOR, OUTER RH

main67111-89106iLN3#,4#,RN3#,4#197808-198809

67112PANEL, FRONT DOOR, OUTER LH

main67112-89108iLN3#,4#,RN3#,4#197808-198809

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-89106iLN3#,4#,RN3#,4#197808-198809

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-89106iLN3#,4#,RN3#,4#197808-198809

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67433-89101iLN3#,4#,RN3#,4#197808-198809

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67434-89101iLN3#,4#,RN3#,4#197808-198809

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-89105iLN3#,4#,RN3#,4#197808-198809

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-89105iLN3#,4#,RN3#,4#197808-198809

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-89115-01iRN30,33,4#..STD197808-198110

BLACK,BLACK,TRIM2#

main67610-89115-04iRN30,33,4#..STD197808-198110

BLUE,BLUE,TRIM8#

main67610-89117-01iLN30,40,RN3#,4#..DLX197808-198110

BLACK,BLACK,TRIM2#

main67610-89117-04iLN30,40,RN30,33,4#..DLX197808-198110

BLUE,BLUE,TRIM8#

main67610-89117-05iLN30,40,RN3#,4#..DLX197808-198110

BEIGE,BEIGE,TRIM4#

main67610-89120-01iRN36197910-198110

SR PACKAGE,BLACK,BLACK,TRIM2#

main67610-89120-04iLN40,RN4#..SDX197808-198110

BLUE,BLUE,TRIM8#

main67610-89120-05iRN36197910-198110

SR PACKAGE,BEIGE,BEIGE,TRIM4#

main67610-89144-01iRN35..STD198110-198809

BLACK,BLACK,TRIM2#

main67610-89144-04iRN35..STD198110-198508

BLUE,BLUE,TRIM8#

main67610-89146-01iRN3#,45..DLX198110-198809

BLACK,BLACK,TRIM2#

main67610-89146-04iRN35,45..DLX198110-198809

BLUE,BLUE,TRIM8#

main67610-89146-06iRN3#,45..DLX198110-198508

BROWN,BROWN,TRIM4#

main67610-89147-01iRN39; RN45..SDX198110-198310

BLACK,BLACK,TRIM2#; SR PACKAGE,BLACK,BLACK,TRIM2#

main67610-89147-04iRN45..SDX198110-198310

BLUE,BLUE,TRIM8#

main67610-89147-06iRN39; RN45..SDX198110-198310

BROWN,BROWN,TRIM4#; SP PACKAGE,BROWN,BROWN,TRIM4#

main67610-89150-01iLN3#,4#..DLX198110-198809

BLACK,BLACK,TRIM2#

main67610-89150-04iLN30,40,41..DLX198110-198809

BLUE,BLUE,TRIM8#

main67610-89150-06iLN3#,4#..DLX198110-198508

BROWN,BROWN,TRIM4#

main67610-89151-01iLN36,46; LN40..SDX198110-198310

BLACK,BLACK,TRIM2#; SR PACKAGE,BLACK,BLACK,TRIM2#

main67610-89151-04iLN40..SDX198110-198310

BLUE,BLUE,TRIM8#

main67610-89151-06iLN36,46; LN40..SDX198110-198310

BROWN,BROWN,TRIM4#; SR PACKAGE,BROWN,BROWN,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-89101×34iLN36,46,RN36,39197910-198310

SR PACKAGE

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-89114-01iRN30,33,4#..STD197808-198110

BLACK,BLACK,TRIM2#

main67620-89114-04iRN30,33,4#..STD197808-198110

BLUE,BLUE,TRIM8#

main67620-89115-01iLN30,40,RN3#,4#..DLX197808-198110

BLACK,BLACK,TRIM2#

main67620-89115-04iLN30,40,RN30,33,4#..DLX197808-198110

BLUE,BLUE,TRIM8#

main67620-89115-05iLN30,40,RN3#,4#..DLX197808-198110

BEIGE,BEIGE,TRIM4#

main67620-89117-01iRN36197910-198110

SR PACKAGE,BLACK,BLACK,TRIM2#

main67620-89117-04iLN40,RN4#..SDX197808-198110

BLUE,BLUE,TRIM8#

main67620-89117-05iRN36197910-198110

SR PACKAGE,BEIGE,BEIGE,TRIM4#

main67620-89128-01iLN3#,4#,RN3#,45..DLX198110-198809

BLACK,BLACK,TRIM2#

main67620-89128-04iLN30,40,41,RN35,45..DLX198110-198809

BLUE,BLUE,TRIM8#

main67620-89128-06iLN3#,4#,RN3#,45..DLX198110-198508

BROWN,BROWN,TRIM4#

main67620-89132-01iLN36,46,RN39; LN40,RN45..SDX198110-198310

BLACK,BLACK,TRIM2#; SR PACKAGE,BLACK,BLACK,TRIM2#

main67620-89132-04iLN40,RN45..SDX198110-198310

BLUE,BLUE,TRIM8#

main67620-89132-06iLN36,46,RN39; LN40,RN45..SDX198110-198310

BROWN,BROWN,TRIM4#; SR PACKAGE,BROWN,BROWN,TRIM4#

main67620-89140-01iRN35..STD198110-198809

BLACK,BLACK,TRIM2#

main67620-89140-04iRN35..STD198110-198508

BLUE,BLUE,TRIM8#

67651BOARD, FRONT DOOR TRIM, LOWER RH

main67650-89101-01iLN40,RN4#..SDX197808-198310

BLACK,BLACK,TRIM2#

main67650-89101-04iLN40,RN4#..SDX197808-198310

BLUE,BLUE,TRIM8#

main67650-89101-05iLN40,RN4#..SDX197808-198310

BEIGE,BEIGE,TRIM4#

67652BOARD, FRONT DOOR TRIM, LOWER LH

main67660-89101-01iLN36,46,RN36,39197910-198310

SR PACKAGE,BLACK,BLACK,TRIM2#

main67660-89101-04iLN40,RN4#..SDX197808-198310

BLUE,BLUE,TRIM8#

main67660-89101-05iLN40,RN4#..SDX197808-198310

BEIGE,BEIGE,TRIM4#

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20030-01×2iRN30,33,4#..STD197808-198110

BLACK,BLACK,TRIM2#

main69751-20030-04×2iRN30,33,4#..STD197808-198110

BLUE,BLUE,TRIM8#

main69751-20031-01×2iRN35..STD198110-198809

BLACK,BLACK,TRIM2#

main69751-20031-04×2iRN35..STD198110-198809

BLUE,BLUE,TRIM8#

main69751-20040×2iLN3#,4#,RN3#,4#..DLX,SDX197808-198809

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-89103iLN3#,4#,RN3#,4#197808-198809

main67831-95113iLN36,46,RN39198110-198310

W/STEREO

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-89103iLN3#,4#,RN3#,4#197808-198809

main67831-95113iLN36,46,RN39198110-198310

W/STEREO

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-89104iLN3#,4#,RN3#,4#197808-198809

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-89103iLN3#,4#,RN3#,4#197808-198809

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-89107iRN30,33,35,40,43..STD197808-198809

main68111-89108iLN3#,4#,RN3#,4#..DLX,SDX197808-198608

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-89106iLN41,RN35,45..DLX198508-198809

main68112-89107iLN3#,4#,RN3#,4#..DLX,SDX197808-198608

68141RUN, FRONT DOOR GLASS

main68141-89105×2iLN3#,4#,RN3#,4#197808-198809

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-89104×2iLN3#,4#,RN3#,4#197808-198809

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-89104iRN30,33,35,40,43..STD197808-198809

RH

main68170-89105iRN30,33,35,40,43..STD197808-198809

LH

main68170-89108iLN3#,4#,RN3#,4#..DLX,SDX197808-198809

RH

main68220-89101iLN3#,4#,RN3#,4#..DLX,SDX197808-198809

LH

68610CHECK ASSY, FRONT DOOR

main68610-89101×2iLN3#,4#,RN3#,4#197808-198809

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iLN4#,RN35,45198408-198809

main68617-22010×2iLN3#,4#,RN3#,4#197808-198408

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)

main68211-89103

9046711002

main90467-11002

9165640616

main91656-40616

9166140614

main91661-40614

9352014010

main93520-14010

35 parts on this diagram · 1 diagram in section
