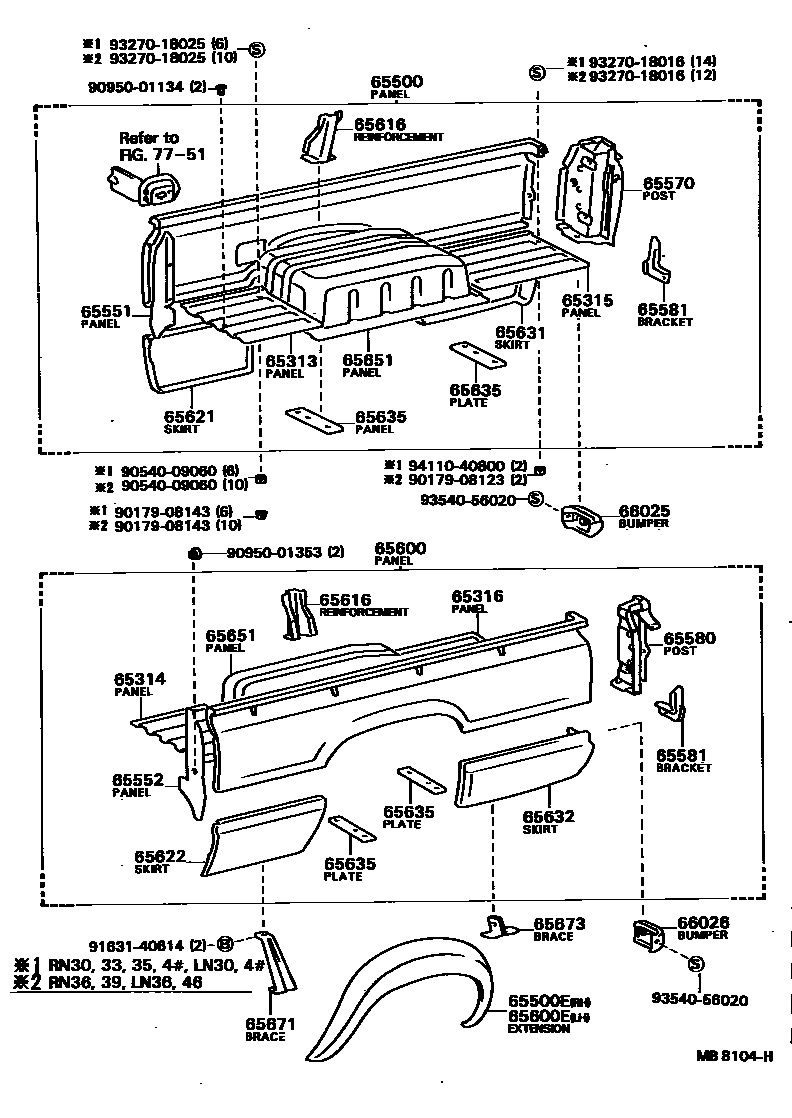

REAR BODY SIDE PANEL

0001 1 0002 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-89108iLN30,RN30,33,35197808-198809

main65313-89109iLN36,RN36,39197910-198310

main65313-89110iLN40,41,RN4#..T1..(DLX,STD)197808-198809

main65313-89111iLN40,RN4#..SDX197808-198310

65314PANEL, FLOOR FRONT CORNER, LH

main65314-89110iLN30,RN30,33,35197808-198809

main65314-89111iLN36,RN36,39197910-198310

main65314-89112iLN40,41,RN4#..T1..(DLX,STD)197808-198809

main65314-89113iLN46..T1198110-198310

65315PANEL, FLOOR REAR CORNER, RH

main65315-89106iLN36,RN36,39197911-198310

main65315-89107iRN40197808-197911

main65315-89109iLN30,RN30,33,35197911-198809

main65315-89110iLN46;LN40,41,RN4#..T1197911-198809

main65315-89111iLN40,RN45..TW198110-198310

65316PANEL, FLOOR REAR CORNER, LH

main65316-89106iLN36,RN36,39197911-198310

main65316-89107iRN40197808-197911

main65316-89109iLN30,RN30,33,35197911-198809

main65316-89110iLN46;LN40,41,RN4#..T1197911-198809

main65316-89111iLN40,RN45..TW198110-198310

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89121iLN30,RN30,33197808-198008

main65500-89126iLN40,RN4#..DLX,STD197808-198008

main65500-89128iLN40,RN4#..SDX197808-198008

main65500-89135iLN30,RN33198008-198110

main65500-89136iLN40,RN43..DLX,STD198008-198110

main65500-89137iLN40,RN43..SDX198008-198110

main65500-89145iLN30,RN35198110-198809

main65500-89146iLN40,41,RN45..T1..DLX198110-198809

main65500-89147iLN40,RN45..SDX198110-198310

main65500-89156iLN40,RN45..TW198110-198310

main65500-95157iRN36197910-198008

main65500-95162iRN36198008-198110

main65500-95F00iLN36,RN39198110-198310

main65500-95F01iLN46..T1198110-198310

main65500-95F02iLN46..TW198110-198310

65500EEXTENSION, REAR WHEEL OPENING, RH

main61681-95111iLN36,46,RN36,39..T1197910-198310

main61681-95114iLN46..TW198110-198310

65551PANEL, FRONT END POST INNER, RH

main65551-89105iLN30,40,RN3#,4#197808-198008

main65551-89106iLN4#,RN45..TW198110-198310

main65551-89107iLN3#,4#,RN33,35,39,4#..T1198008-198809

65552PANEL, FRONT END POST INNER, LH

main65552-89105iLN30,40,RN3#,4#197808-198008

main65552-89106iLN4#,RN45..TW198110-198310

main65552-89107iLN3#,4#,RN33,35,39,4#..T1198008-198809

65570POST ASSY, SIDE PANEL REAR END, RH

main65550-89106iLN30,40,RN3#,4#197808-198108

main65550-89109iLN3#,4#,RN3#,45198110-198809

main65550-89110iLN30,40,RN33,43198108-198110

65580POST ASSY, SIDE PANEL REAR END, LH

main65560-89106iLN30,40,RN3#,4#197808-198108

main65560-89109iLN3#,4#,RN3#,45198110-198809

main65560-89110iLN30,40,RN33,43198108-198110

65581BRACKET, REAR END POST

main65565-89102iLN3#,4#,RN3#,45198110-198809

RH

main65566-89102iLN3#,4#,RN3#,45198110-198809

LH

main65581-89101iRN3#,40197808-197911

RH

main65581-89102iLN30,40,RN3#,4#197911-198110

RH

main65582-89101iRN3#,40197808-197911

LH

main65582-89102iLN30,40,RN3#,4#197911-198110

LH

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89124iLN30,RN30,33197808-198008

main65600-89129iLN40,RN4#..DLX,STD197808-198008

main65600-89131iLN40,RN4#..SDX197808-198008

main65600-89138iLN30,RN33198008-198110

main65600-89139iLN40,RN43..DLX,STD198008-198110

main65600-89140iLN40,RN43..SDX198008-198110

main65600-89148iLN30,RN35198110-198809

main65600-89149iLN40,41,RN45..T1..DLX198110-198809

main65600-89150iLN40,RN45..SDX198110-198310

main65600-89159iLN40,RN45..TW198110-198310

main65600-95157iRN36197910-198008

main65600-95162iRN36198008-198110

main65600-95F00iLN36,RN39198110-198310

main65600-95F01iLN46..T1198110-198310

main65600-95F02iLN46..TW198110-198310

65600EEXTENSION, REAR WHEEL OPENING, LH

main61682-95111iLN36,46,RN36,39..T1197910-198310

main61682-95114iLN46..TW198110-198310

65616REINFORCEMENT, SIDE PANEL

main65616-89103×2iLN40,41,RN4#..T1197808-198809

65621SKIRT, SIDE PANEL, FRONT RH

main65621-89107iLN30,RN30,33,35197808-198809

main65621-89108iLN36,RN36,39197910-198310

main65621-89109iLN40,41,RN4#..T1..(DLX,STD)197808-198809

main65621-89110iLN46..T1198110-198310

main65621-89111iLN4#,RN45..TW198110-198310

65622SKIRT, SIDE PANEL, FRONT LH

main65622-89107iLN30,RN30,33,35197808-198809

main65622-89108iLN36,RN36,39197910-198310

main65622-89109iLN40,41,RN4#..T1..(DLX,STD)197808-198809

main65622-89110iLN46..T1198110-198310

main65622-89111iLN4#,RN45..TW198110-198310

65631SKIRT, SIDE PANEL, REAR RH

main65623-89102iLN3#,RN3#197808-198809

main65623-89106iLN4#,RN4#197808-198809

65632SKIRT, SIDE PANEL, REAR, LH

main65624-89102iLN3#,RN3#197808-198809

main65624-89106iLN4#,RN4#197808-198809

65635PLATE, REAR WHEEL HOUSE

main65631-95115×2iLN36,46,RN36,39..T1198107-198310

FR

main65635-95112×2iLN36,46,RN36,39..T1198107-198310

RR

65651PANEL, WHEEL HOUSE

main65605-89103iLN40,RN45..TW198110-198310

RH

main65605-95115iLN46..TW198110-198310

RH

main65606-89103iLN40,RN45..TW198110-198310

LH

main65606-95114iLN46..TW198110-198310

LH

main65651-89105iLN30,40,RN3#,4#197808-198008

RH

main65651-89106iLN3#,4#,RN3#,4#..T1198008-198809

RH

main65652-89106iLN30,40,RN3#,4#197808-198008

LH

main65652-89107iLN3#,4#,RN3#,4#..T1198008-198809

LH

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-89103×2iLN3#,4#,RN3#,4#..T1197808-198809

65673BRACE, SIDE PANEL SKIRT, REAR

main65608-89104iLN30,40,41,RN30,33,35,4#197808-198809

RH

main65609-89102iLN30,40,41,RN30,33,35,4#197808-198809

LH

main65673-95115iRN36198002-198008

RH

main65673-95117iLN36,46,RN36,39198008-198310

RH

main65674-95117iRN36198002-198008

LH

main65674-95118iLN36,46,RN36,39198008-198310

LH

66025BUMPER SUB-ASSY, REAR BODY RUBBER, RH

main75916-89101iLN3#,4#,RN3#,4#..CBU197808-198809

66026BUMPER SUB-ASSY, REAR BODY RUBBER, LH

main75918-89101iLN3#,4#,RN3#,4#..CBU197808-198809

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9017908123

main90179-08123

9017908143

main90179-08143

9054009060

main90540-09060

9095001134

main90950-01134

9095001353

main90950-01353

9163140614

main91631-40614

9327018016

main93270-18016

9327018025

main93270-18025

9354056020

main93540-56020

9411040800

main94110-40800

35 parts on this diagram · 2 diagrams in section
